Precautions for installation and use
2-4 bizhub PRO 920 Additional Information

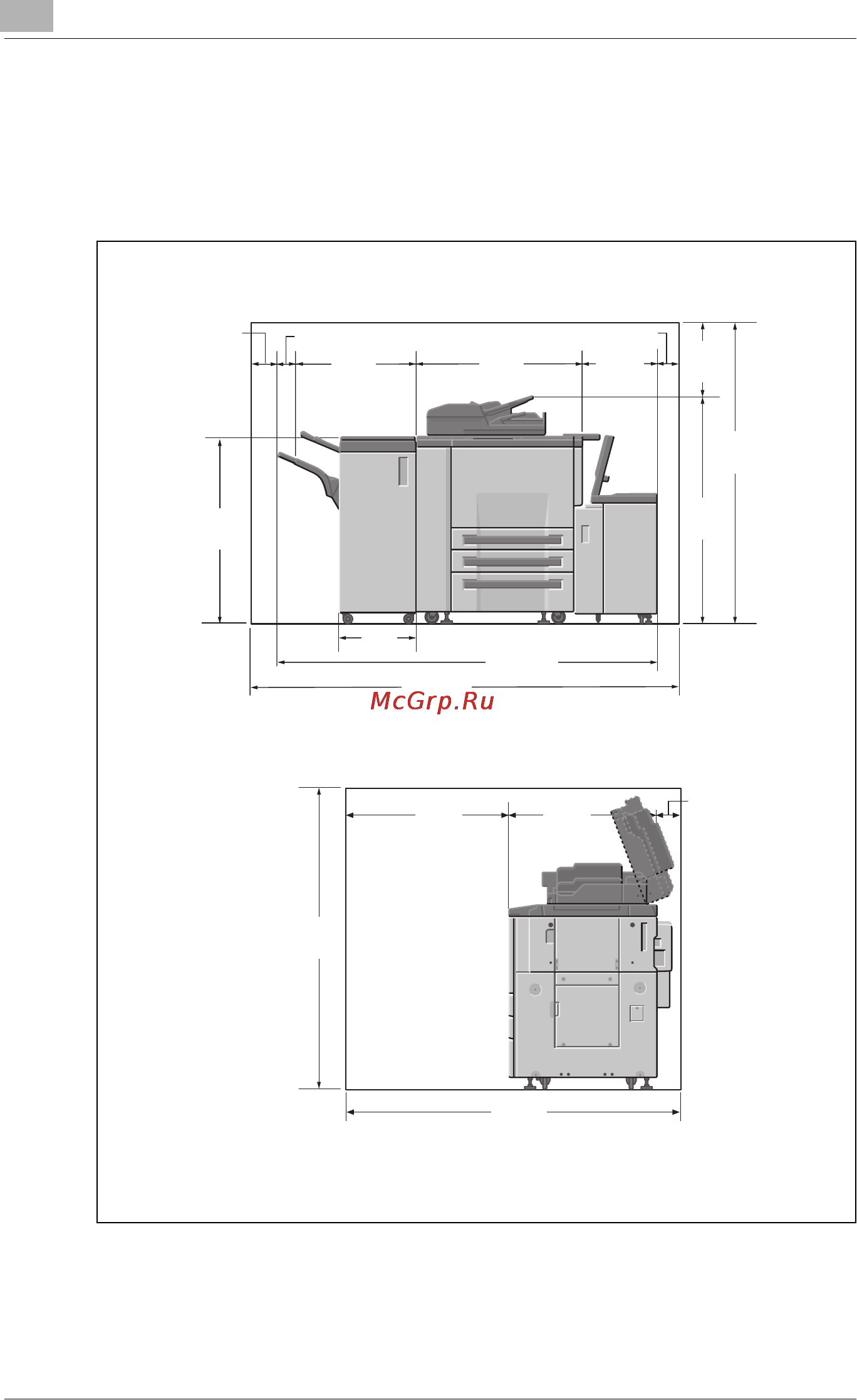

2.2 Installation space
Allow sufficient space for facilitating copy operation, changing parts and
consumables, and periodic inspection.
Be sure to choose a level and solid floor for the installation place.
887
675
150
116
410
2064.1
1603
1603
2364.1
386.1
1203
990
400
150
1930
780
950
200
Main body + DF-606 + FS-509 + LU-403 (Front)
Main body (Right side)
Unit: mm
