Copying operations
3
bizhub PRO 920 Additional Information 3-17
3.5 Using finisher manually
The Finisher FS-509 with Post inserter PI-501 installed can be operated man-
ually, using the operation panel provided on the post inserter.
Place a set of paper into the lower tray. Upper tray cannot be used.
Available finishing modes according to the optional configuration are de-
scribed below.
- Finisher FS-509 + Post inserter PI-501
– Staple (1 staple / 2 staples)
- Finisher FS-509 + Post inserter PI-501 + Punch kit PK-504/505
– Staple (1 staple / 2 staples)
– Punch
2
Reminder
The Z folding unit ZU-601/602 cannot be used for manual punch. To use
Punch mode manually, Punch kit PK-504/505 is necessary.

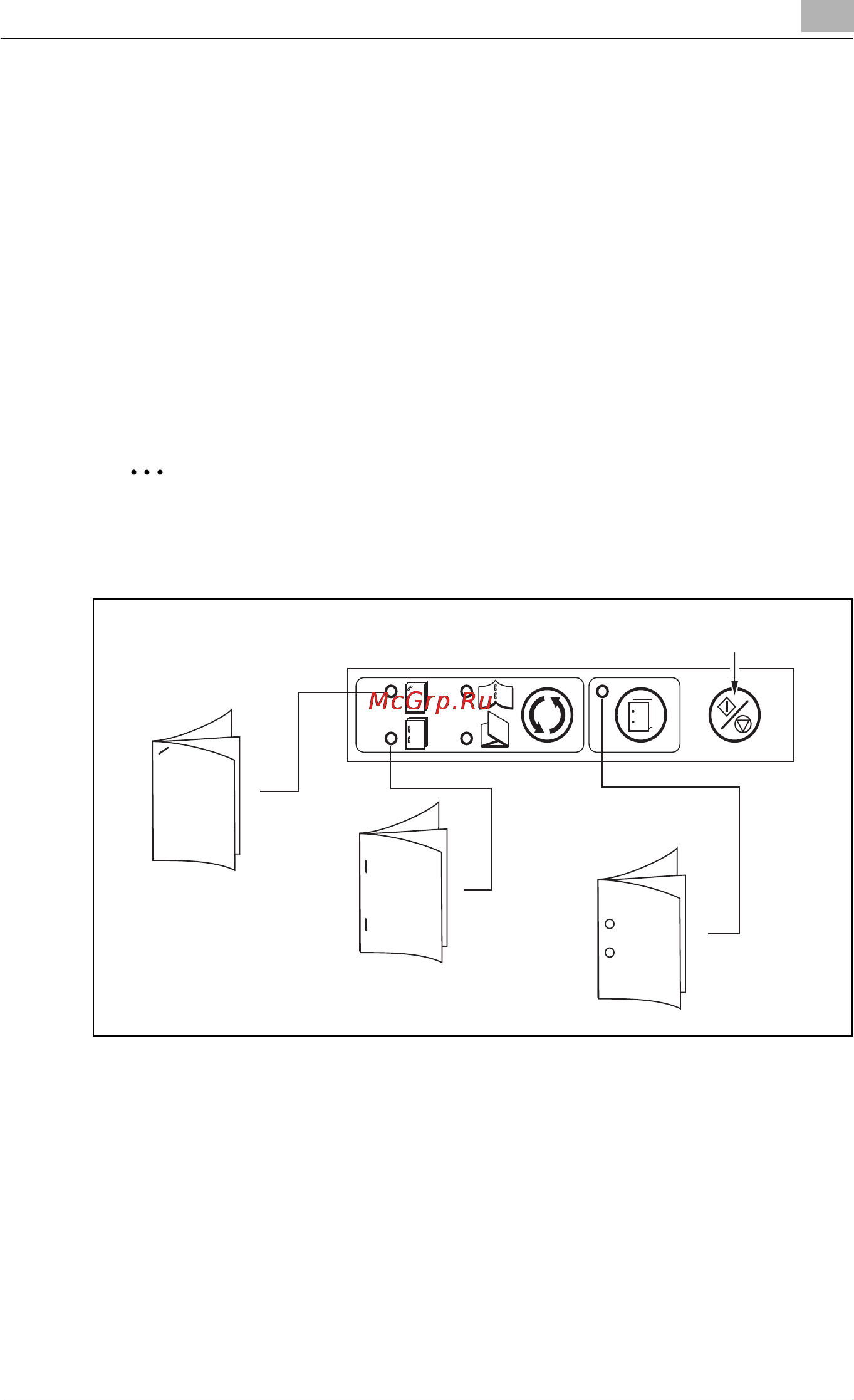

Start/Stop button
1 oblique staple
2 parallel staples Punch
