2
Precautions for installation and use
2-10 bizhub PRO 920 Additional Information

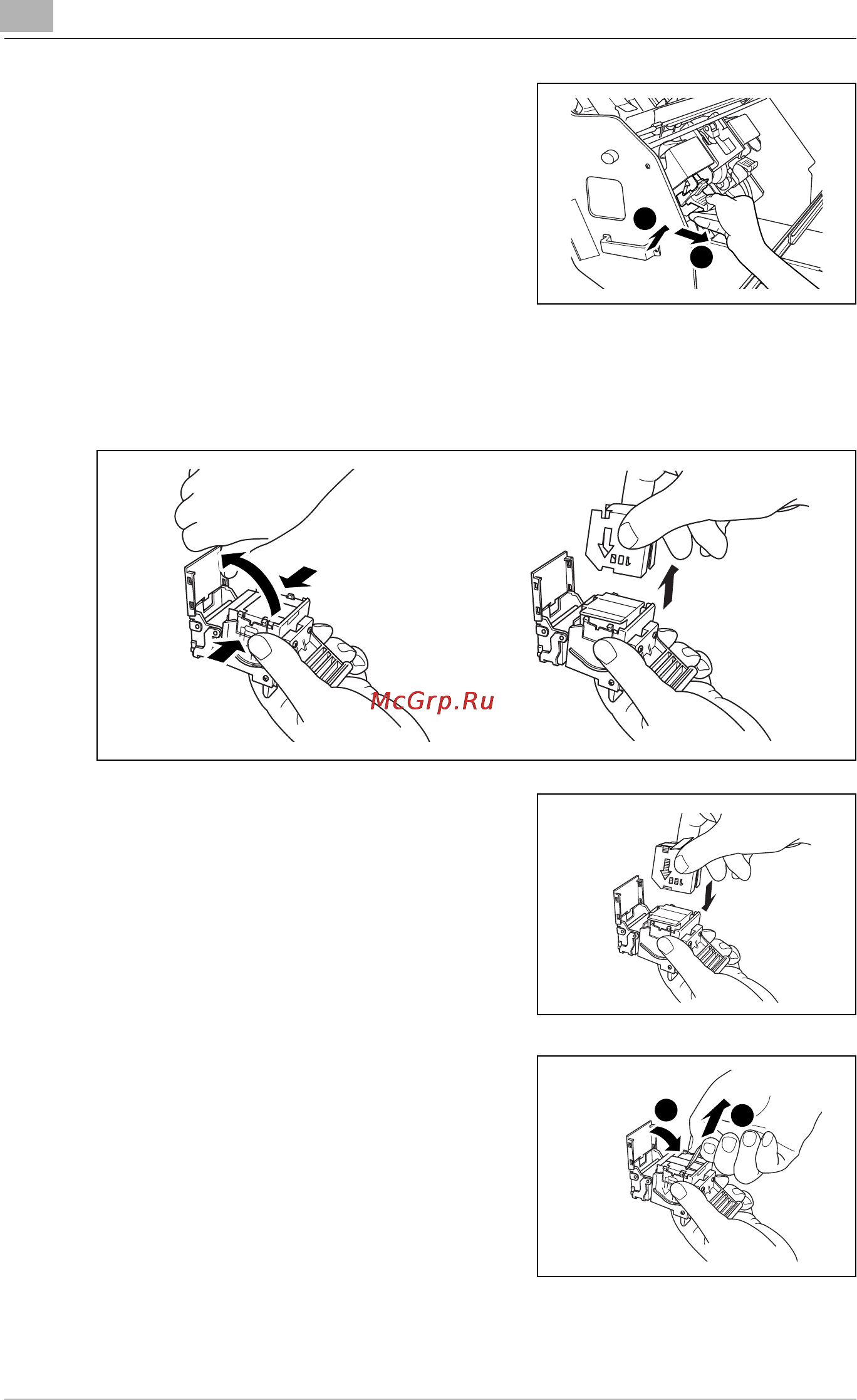

3 Remove the cartridge housing.
– Pull up the knob of the cartridge
housing, then remove it while
pulling it forward.
4 Open the bottom of the cartridge housing while pressing two locks on
both sides, then remove the empty cartridge from the cartridge hous-
ing.
5 Insert the new cartridge into the
housing.
– Firmly insert the cartridge into the
housing while aligning the arrow
indication on the cartridge ap-
pears as shown below.
6 Remove the lock tape from the car-
tridge, then close the bottom of the
housing.
1
2
1
2
