10 Chapter 1. Installation
Store opened or used toner cartridges in their original
packing or in a plastic bag in order to prevent toner
dust from escaping. Dispose of old toner cartridges
by turning them in at specialised shops or at a waste
collection site. Never dispose of toner cartridges by
throwing them into fi re. Toner cartridges should never
be allowed into the hands of children.
Never open a toner cartridge. If toner dust is released
into the air, you should avoid allowing it to contact
your skin and eyes. Do not inhale the released toner
dust. Remove the toner dust from clothing or ob-
jects with cold water; hot water would only cause the
toner to set.

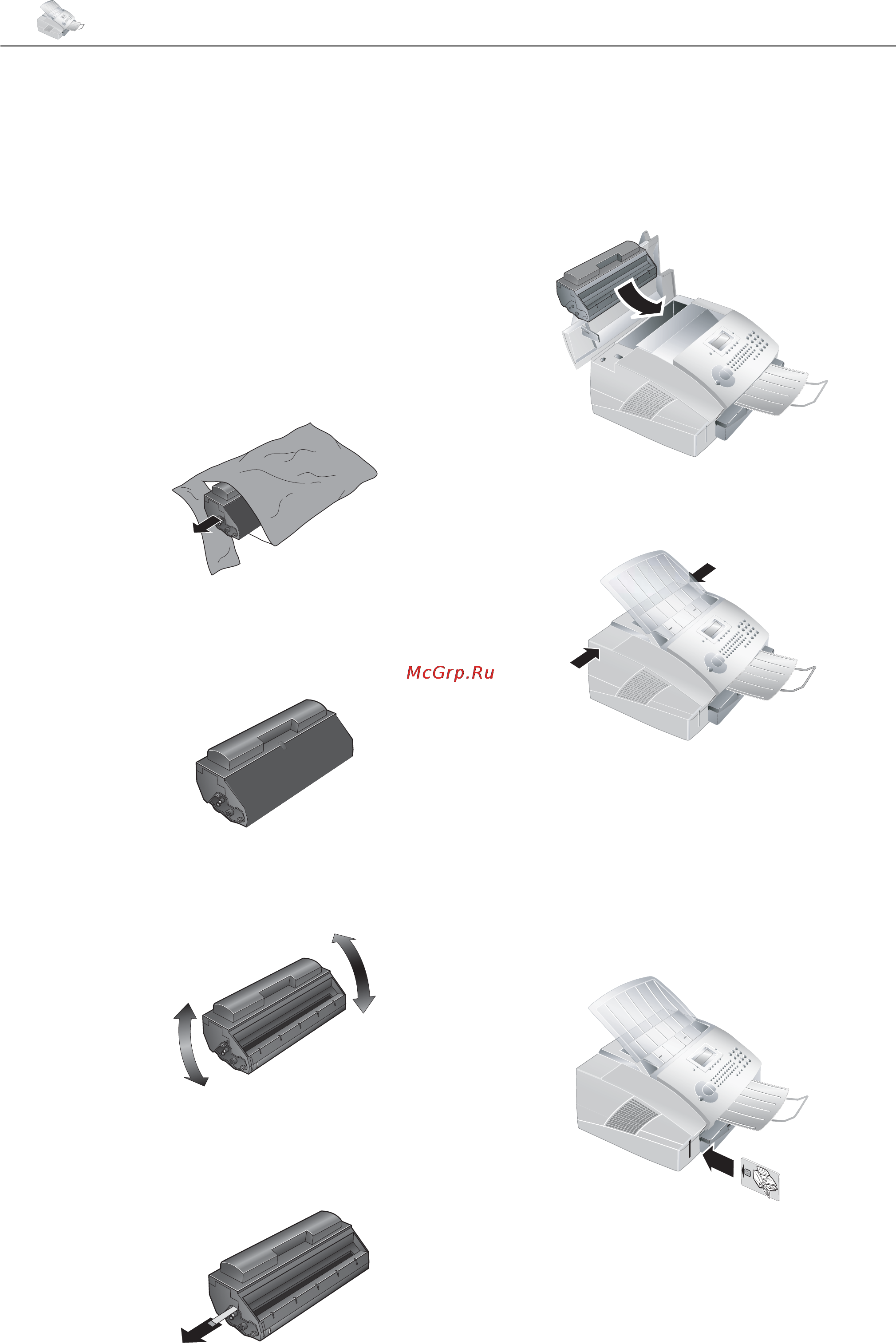

3 Take the new toner cartridge from the package.
4 Remove the black protective foil and other packag-
ing material, but do not yet remove the protective
strip from the cartridge.
5 Shake the new toner cartridge back and forth several
times in order to distribute the toner evenly, thereby
improving the print quality.
6 Only after shaking the cartridge, completely pull
off the protection strip located on the left side of the
cartridge.
Æ
Once you have removed the protection strip,
do not shake the toner cartridge any more.
Otherwise, it is possible that toner dust will be
released into the air.
7 Place the toner cartridge into your laser fax machine.
e cartridge should snap securely into position.
8 Close the cover. Make sure that the cover snaps se-
curely into position on both sides.
9 new cartridge? appears on the display. Con-
fi rm with OK.
10 Wait until insert card appears on the display.
Push the Plug’n’Print card of the new toner cartridge
into the opening on the left side next to the paper
tray, with the contacts facing to the left. (Only the
starter cartridge can be used without inserting a
Plug’n’Print card.)
¡
Should the error message unreadable
card
appear on the display, you may have
inserted the Plug’n’Print card incorrectly. e con-
tacts must face to the left as you insert the card
into the machine.
