1.4. THE DISPLAY

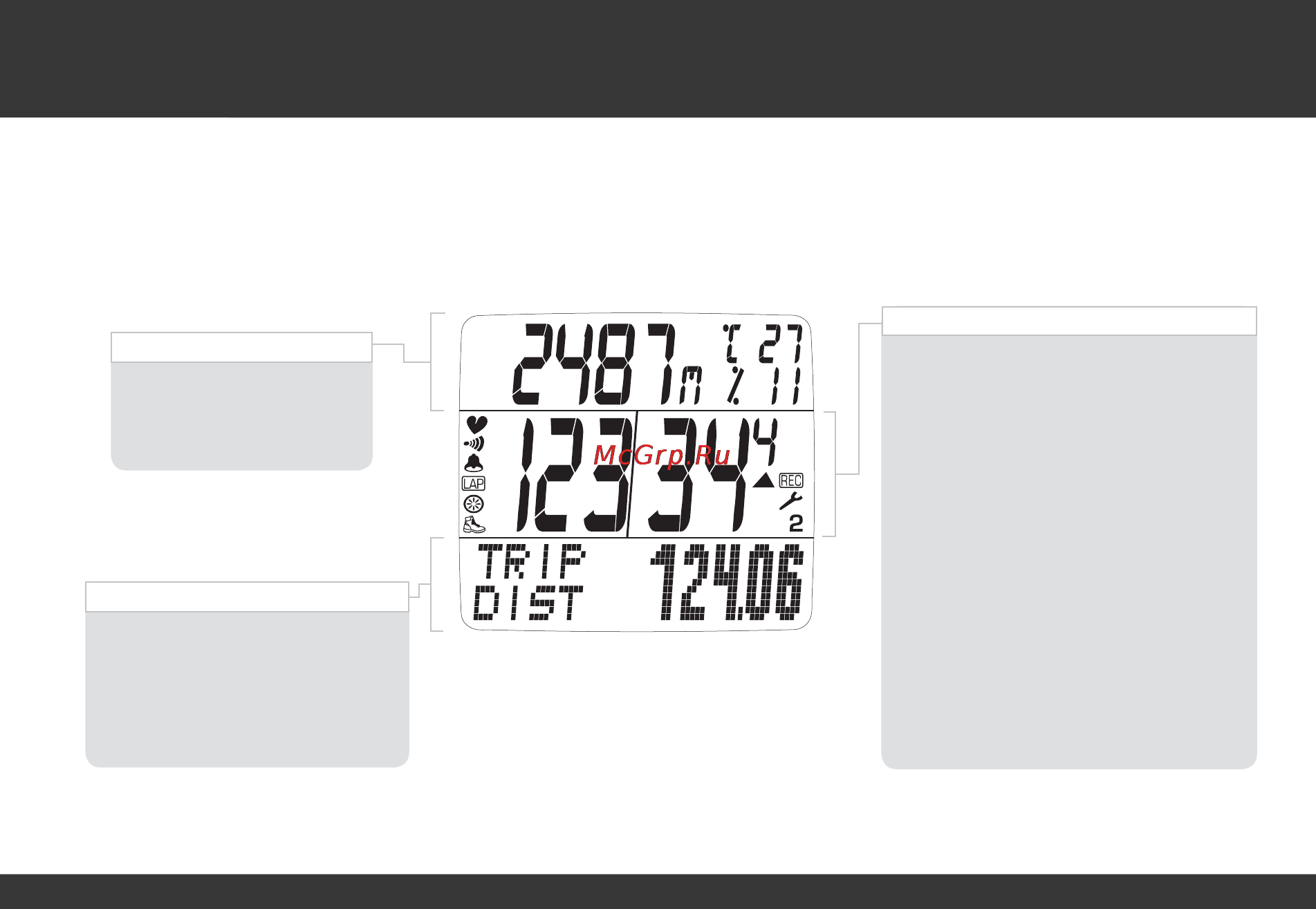

The display of your VDO computer is comprised of three large areas.
The following information is displayed in operation mode:
3. Footer: DOT matrix full-text
- display of the selected/displayed
function
- In setting mode menu prompting
(chapter 5-11) provides informa-
tion about what is shown in the
display.
MIDDLE BAR
- Actual heart rate
- Actual speed
- Heart icon for signal reception of chest belt
transmitter
- Alarm icon when leaving the target heart
rate range
- Timing indicator for ongoing timing function
- Indicator for set alarm/alarm clock
- LAP recording indicator
- Walk mode indicator
- Selection indicator bike 1 / bike 2
- DATA Recording - icon for ongoing Data
Recording
- Arrow indicators for comparing the actual
speed to the average speed
- Service interval icon indicates that bike is
due for service
Header
- Actual altitude
- Actual temperature
- Actual ascending gradient/
descending gradient
* If the computer is worn as a sport watch then the temperature can be
falsifi ed by body warmth.
