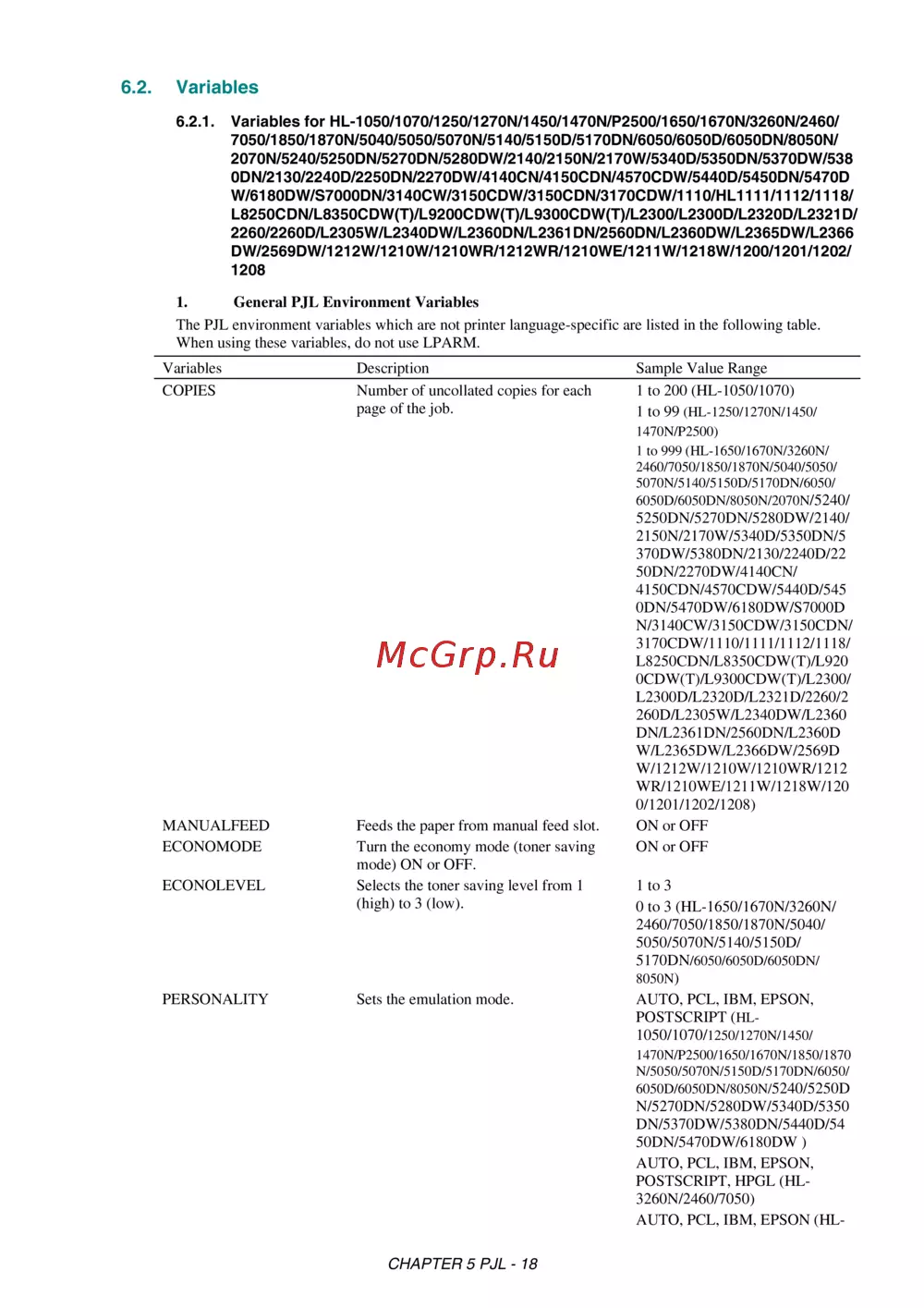

CHAPTER 5 PJL - 18
6.2. Variables
6.2.1. Variables for HL-1050/1070/1250/1270N/1450/1470N/P2500/1650/1670N/3260N/2460/
7050/1850/1870N/5040/5050/5070N/5140/5150D/5170DN/6050/6050D/6050DN/8050N/
2070N/5240/5250DN/5270DN/5280DW/2140/2150N/2170W/5340D/5350DN/5370DW/538
0DN/2130/2240D/2250DN/2270DW/4140CN/4150CDN/4570CDW/5440D/5450DN/5470D
W/6180DW/S7000DN/3140CW/3150CDW/3150CDN/3170CDW/1110/HL1111/1112/1118/
L8250CDN/L8350CDW(T)/L9200CDW(T)/L9300CDW(T)/L2300/L2300D/L2320D/L2321D/
2260/2260D/L2305W/L2340DW/L2360DN/L2361DN/2560DN/L2360DW/L2365DW/L2366
DW/2569DW/1212W/1210W/1210WR/1212WR/1210WE/1211W/1218W/1200/1201/1202/
1208
1. General PJL Environment Variables
The PJL environment variables which are not printer language-specific are listed in the following table.
When using these variables, do not use LPARM.
Variables Description Sample Value Range
COPIES Number of uncollated copies for each
page of the job.
1 to 200 (HL-1050/1070)
1 to 99
(HL-1250/1270N/1450/
1470N/P2500)
1 to 999 (HL-1650/1670N/3260N/
2460/7050/1850/1870N/5040/5050/
5070N/5140/5150D/5170DN/6050/
6050D/6050DN/8050N/2070N
/5240/
5250DN/5270DN/5280DW/2140/
2150N/2170W/5340D/5350DN/5
370DW/5380DN/2130/2240D/22
50DN/2270DW/4140CN/
4150CDN/4570CDW/5440D/545
0DN/5470DW/6180DW/S7000D
N/3140CW/3150CDW/3150CDN/
3170CDW/1110/1111/1112/1118/
L8250CDN/L8350CDW(T)/L920
0CDW(T)/L9300CDW(T)/L2300/
L2300D/L2320D/L2321D/2260/2
260D/L2305W/L2340DW/L2360
DN/L2361DN/2560DN/L2360D
W/L2365DW/L2366DW/2569D
W/1212W/1210W/1210WR/1212
WR/1210WE/1211W/1218W/120
0/1201/1202/1208)
MANUALFEED Feeds the paper from manual feed slot. ON or OFF
ECONOMODE Turn the economy mode (toner saving
mode) ON or OFF.
ON or OFF
ECONOLEVEL Selects the toner saving level from 1
(high) to 3 (low).
1 to 3
0 to 3 (HL-1650/1670N/3260N/
2460/7050/1850/1870N/5040/
5050/5070N/5140/5150D/
5170DN
/6050/6050D/6050DN/
8050N)
PERSONALITY Sets the emulation mode. AUTO, PCL, IBM, EPSON,
POSTSCRIPT (
HL-
1050/1070/1250/1270N/1450/
1470N/P2500/1650/1670N/1850/1870
N/5050/5070N/5150D/5170DN/6050/
6050D/6050DN/8050N/
5240/5250D
N/5270DN/5280DW/5340D/5350
DN/5370DW/5380DN/5440D/54
50DN/5470DW/6180DW )
AUTO, PCL, IBM, EPSON,
POSTSCRIPT, HPGL (HL-
3260N/2460/7050)
AUTO, PCL, IBM, EPSON (HL-
