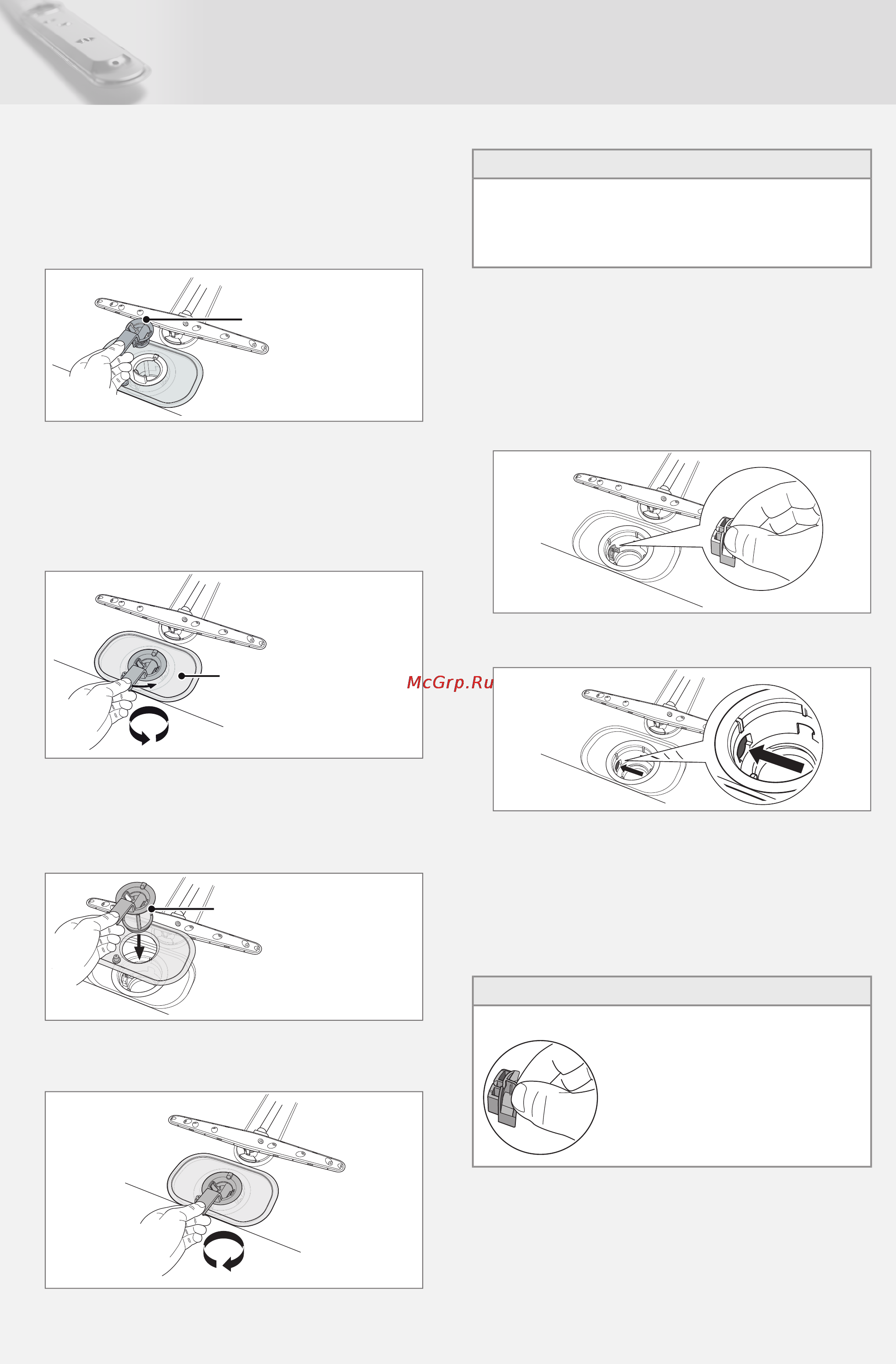

Care and cleaning
Coarse filter
The coarse filter traps larger food particles, which cannot get
past the drainage pump. Empty the coarse filter as necessary.
1 Lift the coarse filter by the handle.
2 Empty the coarse filter. Remember to replace it!
Coarse filter
Fine filter
Debris that collects on the fine filter is automatically rinsed away
during each wash. However, the fine filter and its pipe section
should be cleaned a couple of times a year.
1 Turn the handle anticlockwise once.
1x
Fine filter
2 Lift the pipe section straight up by the handle. Free the coarse
filter to clean the pipe section.
3 Remove and clean the fine filter.
4 Replace in reverse order. Check that the edges seal properly
when replacing the fine filter.
Pipe section
5 Lock the filter in place by turning the handle clockwise to the
stop position. The handle should point straight out from the
dishwasher.
1x
NOTE!
The dishwasher must not be used without the filter in place!
Diswashing efficiency can be affected if the course filter is in-
correctly fitted. After cleaning ensure that filter handle is fully
locked with the handle pointing out of the dishwasher.
Drainage pump
The pump can be accessed from inside the dishwasher.
1 Cut the power to the dishwasher by pulling out the plug from
the wall socket!
2 Remove the coarse filter and pipe section.
3 Remove the small yellow fitted piece at the left of the bottom
drain (see illustration below).
4 By inserting your finger into the hole you can turn the pump
blade to release anything blocking it.
5 Reinstall the fitted piece and filters.
6 Plug the machine in again.
If the dishwasher still does not start and a whirring sound is
heard, the overflow protection has been activated.
• Shut off the water.
• Remove the plug from the wall socket.
• Call the service division.
NOTE!
Do not forget to reinstall the fitted piece.
Spray arms
Holes and bearings can sometimes become blocked. Remove
any debris using a pin or something similar. The spray arms also
have holes on their undersides.
To facilitate cleaning, you can remove the spray arms. Do not
forget to replace them.
