Configuration
D-Link DPH-300S User Manual
26

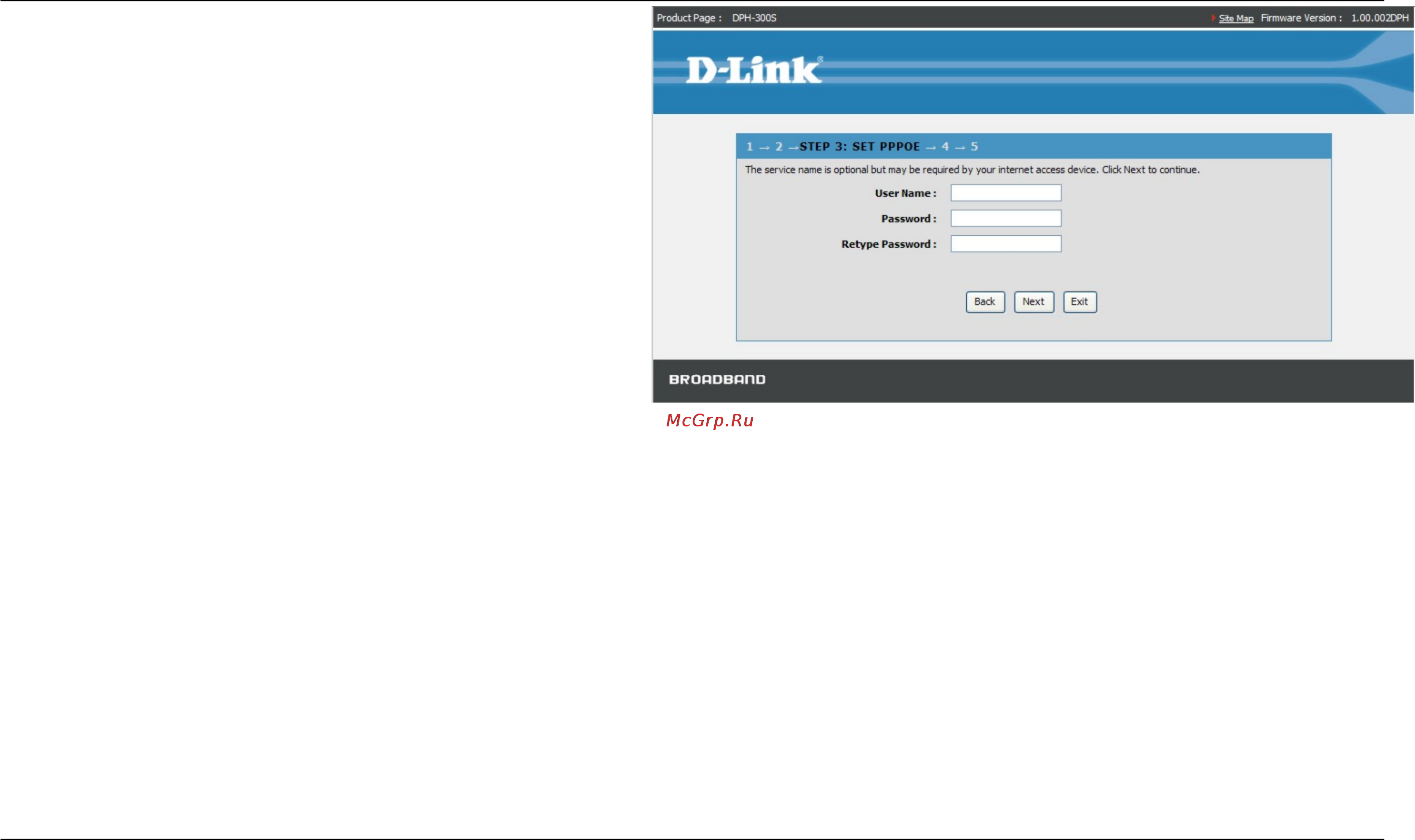

PPPoE
PPPoE (Point-to-Point Protocol over Ethernet) is used when
connecting directly to a DSL modem that offers a PPPoE connection.
This choice requires the input the User name and Password of your
PPPoE account − provided by your ISP.
User Name − Enter your PPPoE User Name as provided by your
ISP.
Password − Enter your PPPoE Password.
Primary / Secondary DNS Addresses − Enter the DNS addresses
provided by your ISP.
Retype Password − Retype your PPPoE Password to confirm.
Click the Connect button to continue.
