Section 1 - Product Overview
D-Link DPH-300S User Manual
6
Introduction

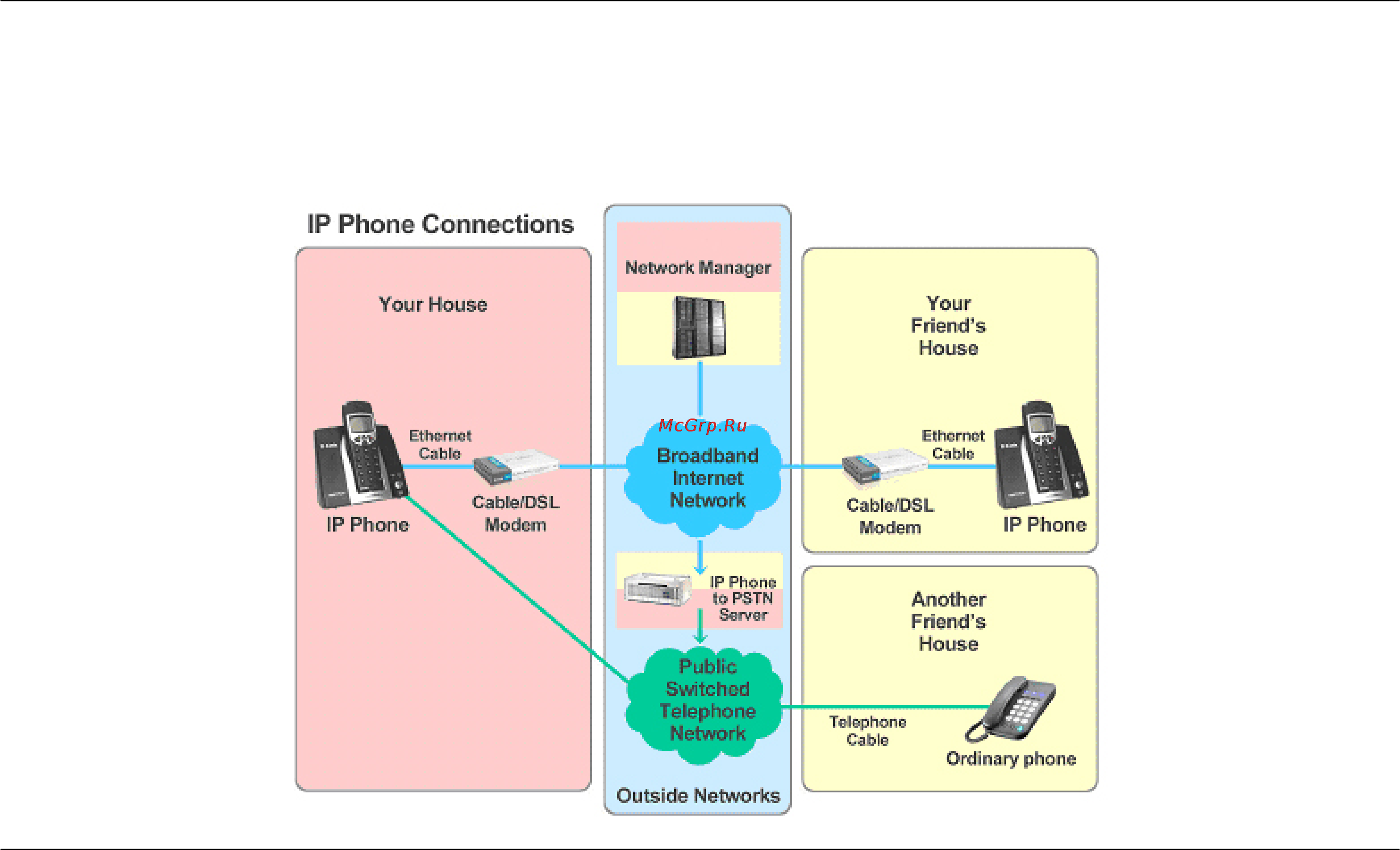

Before you start, your new DPH-300S Dual-mode Cordless Phone will require a connection to the Internet to function. The connection may be
directly through a Cable or DSL modem, or it may be through a broadband router. Your DPH-300S phone will enable you to make VoIP (Voice over
Internet Protocol) telephone calls − at zero or a very much reduced cost when compared to regular telephone service − to nearly anywhere, over the
Internet.
