Configuration
D-Link DPH-300S User Manual
15
SETUP
This chapter is concerned with using your computer to configure the LAN connection. The following chapter describes the various windows used to
configure and monitor the DPH-300S.
Setup Wizard
SETUP

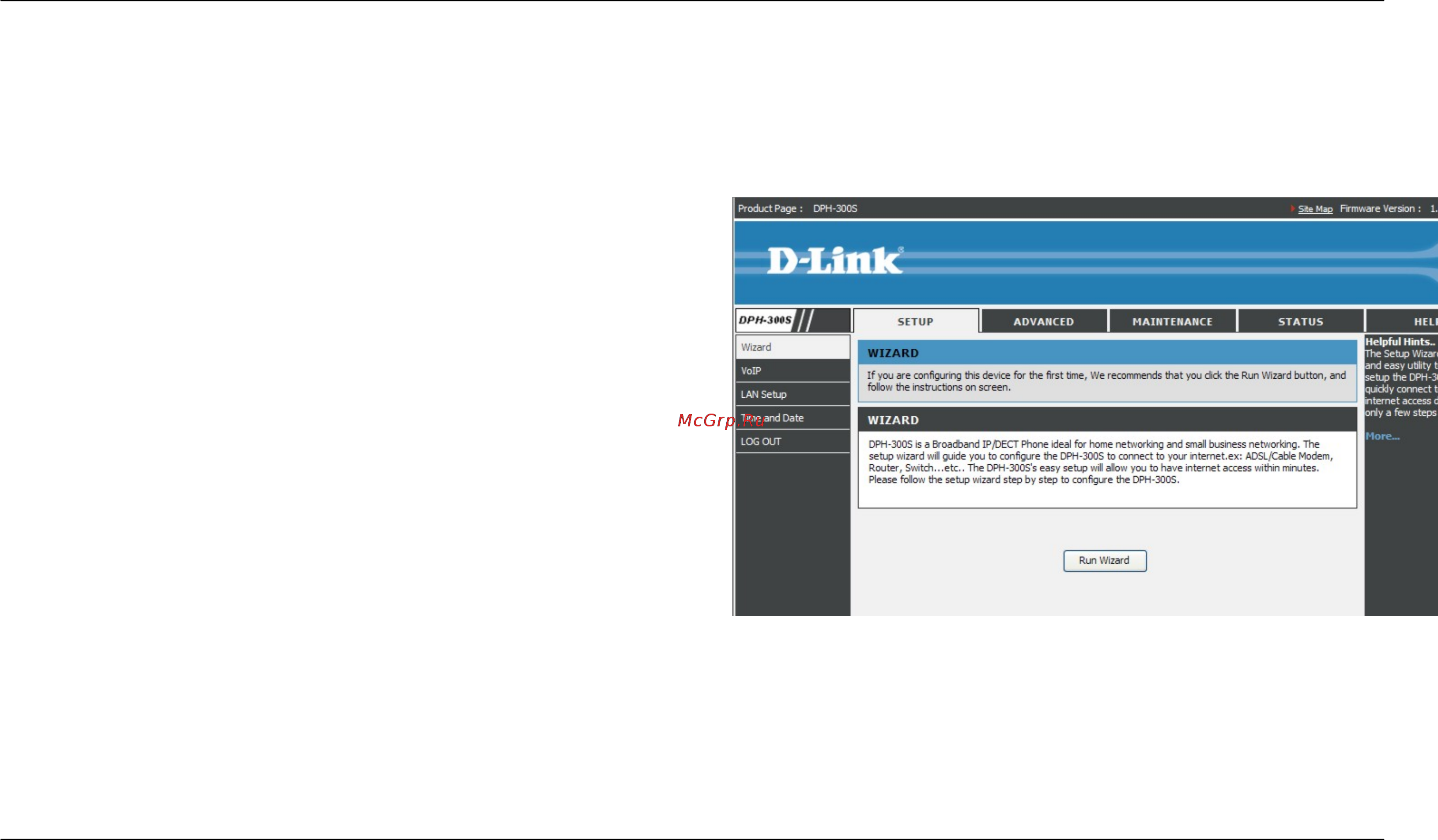

Click on the Run Wizard button to launch the Setup Wizard.
