Configuration
D-Link DPH-300S User Manual
16

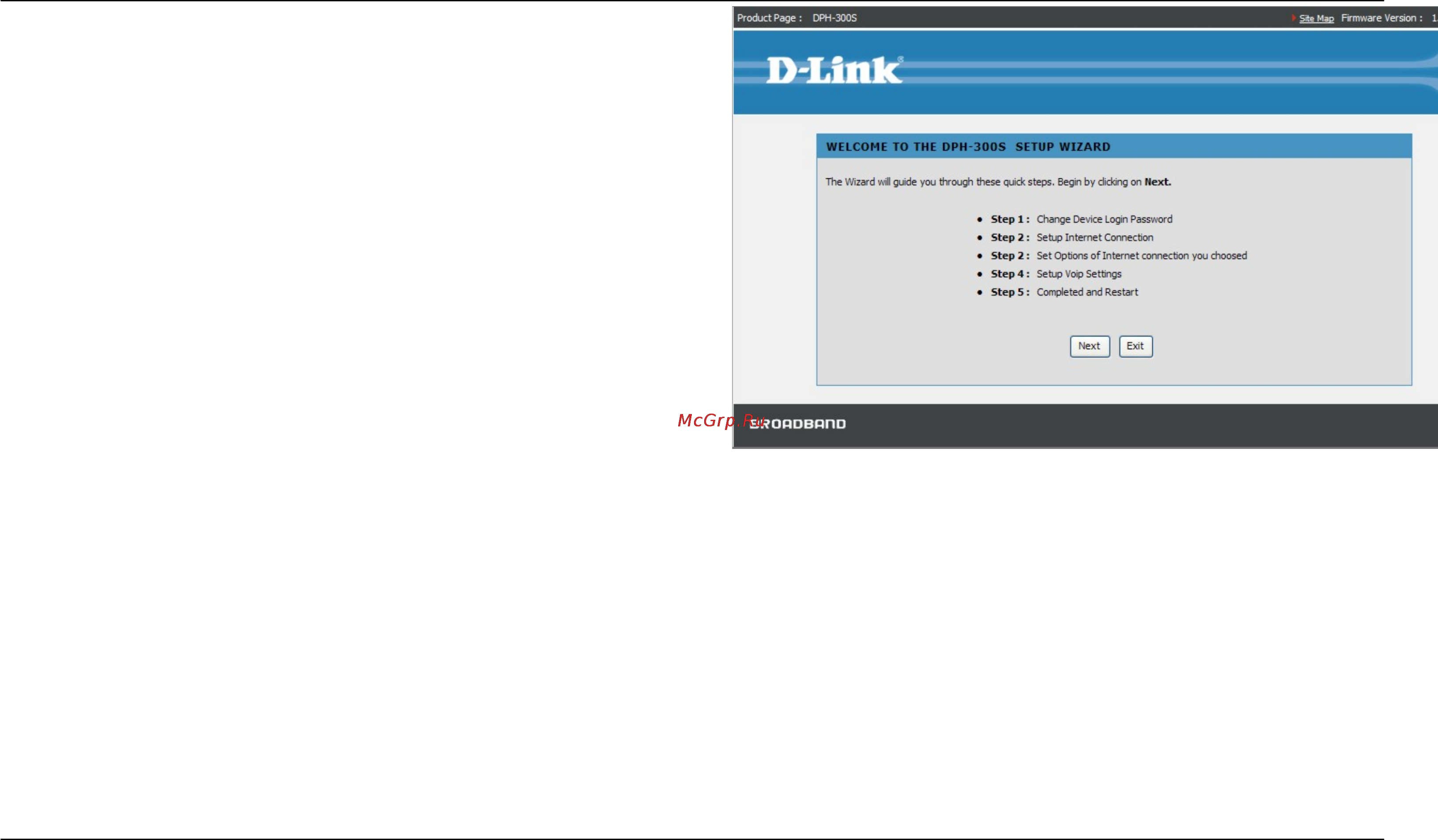

WELCOME TO DPH-300S SETUP WIZARD
Dynamic IP Address (using DHCP) is both the default option, and the most
commonly used method to assign devices on a LAN IP address information
when connecting to a broadband modem or multi-port Ethernet router/DHCP
server.
