Configuration
D-Link DPH-300S User Manual
17

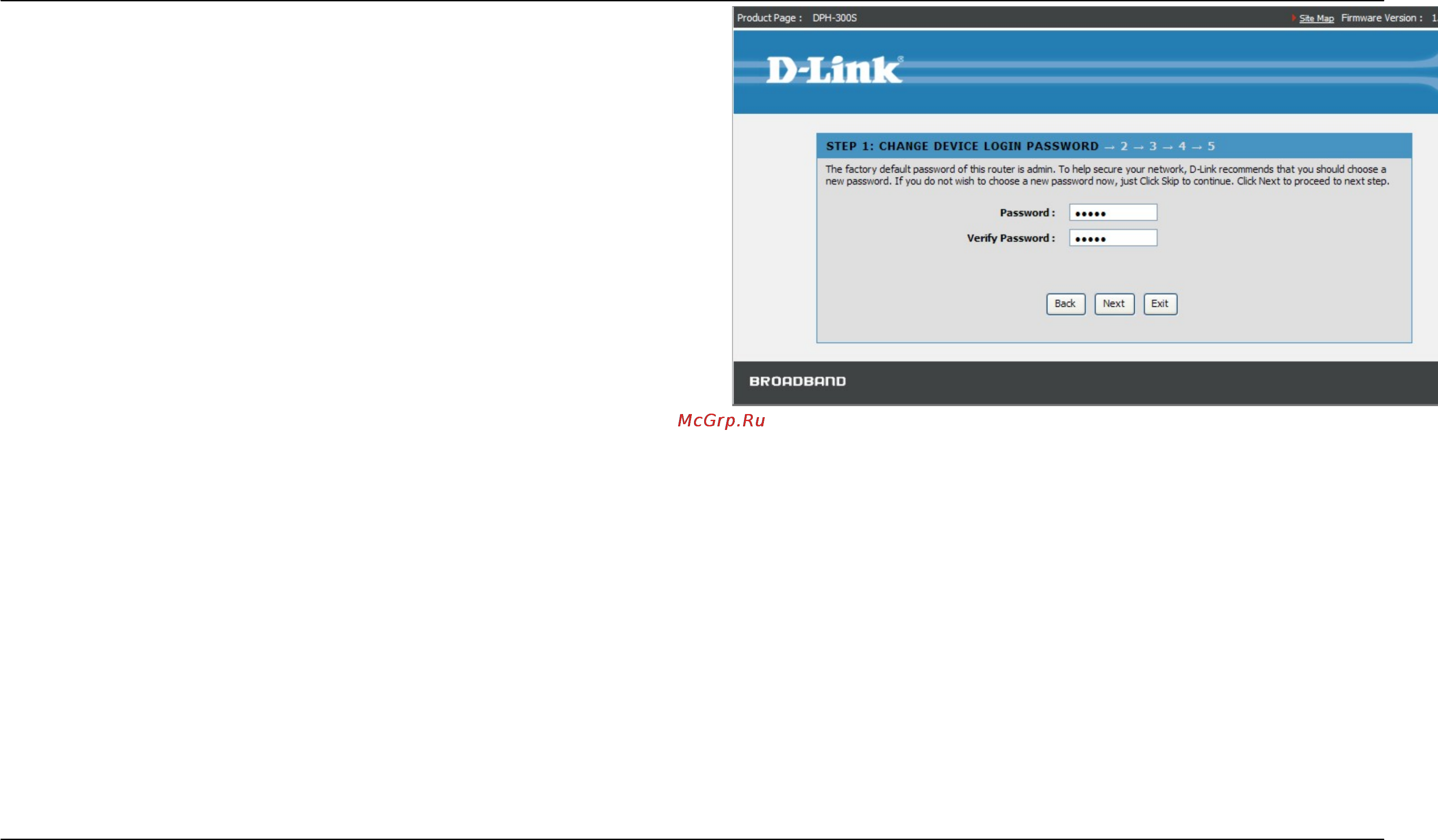

CHANGE YOUR DPH-300S PASSWORD
The default password is "admin". In order to secure your network, please
modify the password.
Note: Confirm Password must be same as "New Password". Of course, you
can click on the Skip to ignore the step.
