Configuration
D-Link DPH-300S User Manual
18

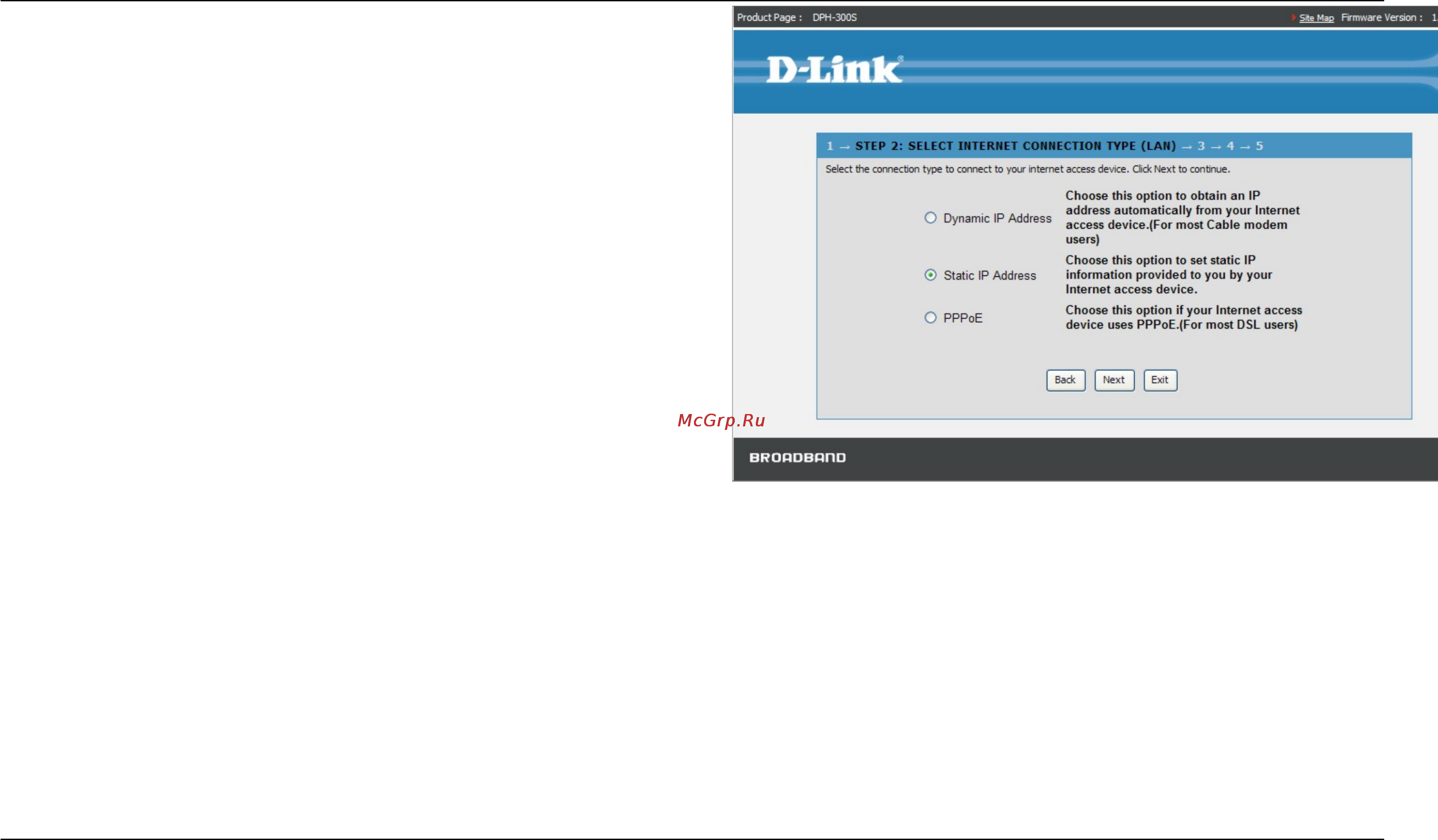

SELECT INTERNET CONNECTION TYPE
Please select the connection type that your ISP uses. Of course, you can
modify the information later, if necessary.
Click on the Next button to go to the next Setup Wizard window.
