Configuration
D-Link DPH-300S User Manual
32

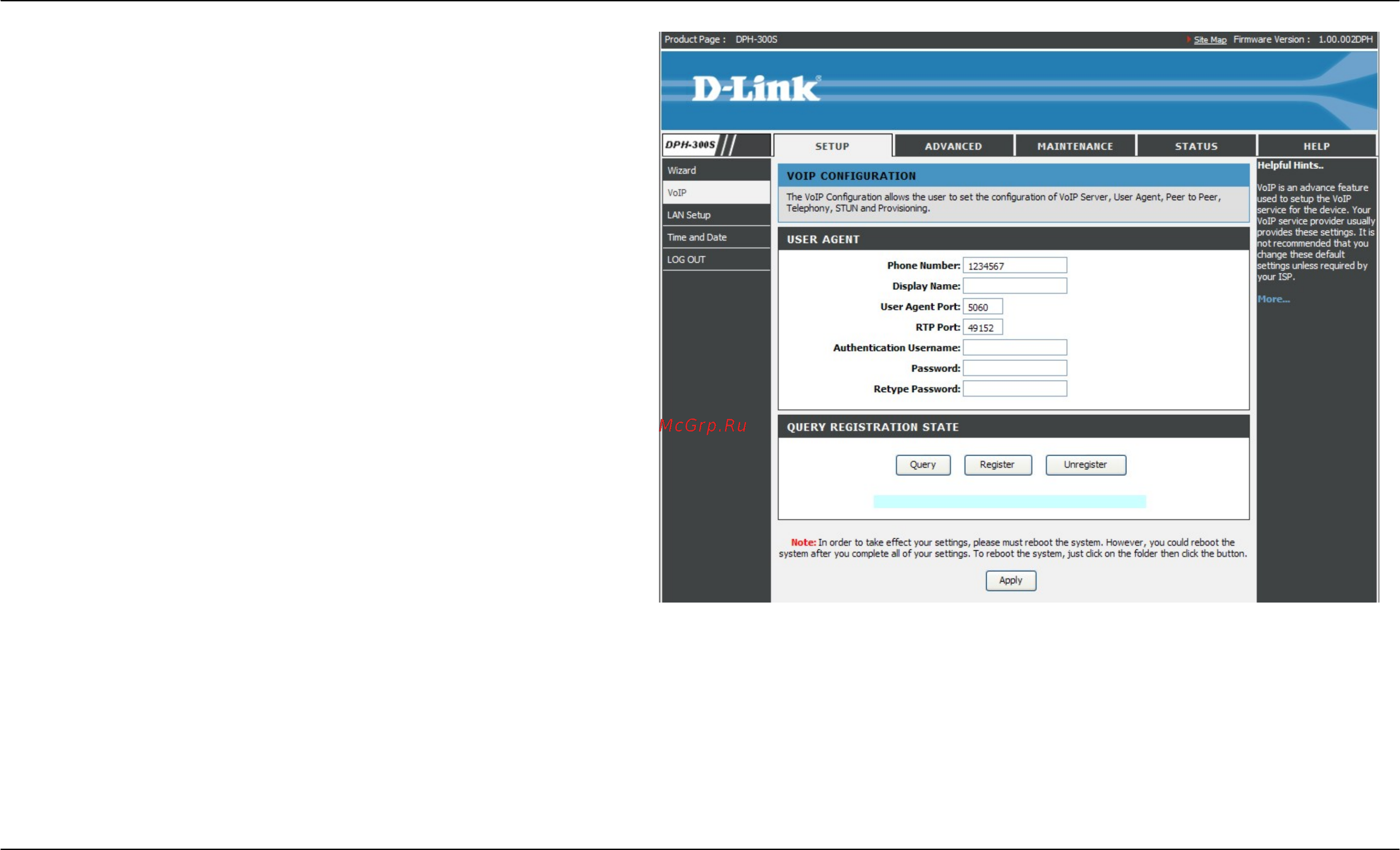

SIP USER AGENT
A SIP User Agent is a logical entity capable of handling VoIP calls
between peers.
Phone Number – The telephone number assigned to the User
Agent by the SIP VoIP telephony service provider.
Display Name – The name used in place of the Phone Number to
identify the device or user in contact indices.
User Agent Port – This selects the port number the router will listen
to when determining when calls are being made.
Authentication Name – The Username used to access your SIP
server and your VoIP service provider.
Password – The Password used to access your SIP server and your
VoIP service provider.
Retype Password – Retype your password to confirm and click
Apply.
