Assembly

Here is the assembly instruction for 200LBS Weights !

200LBS Weight

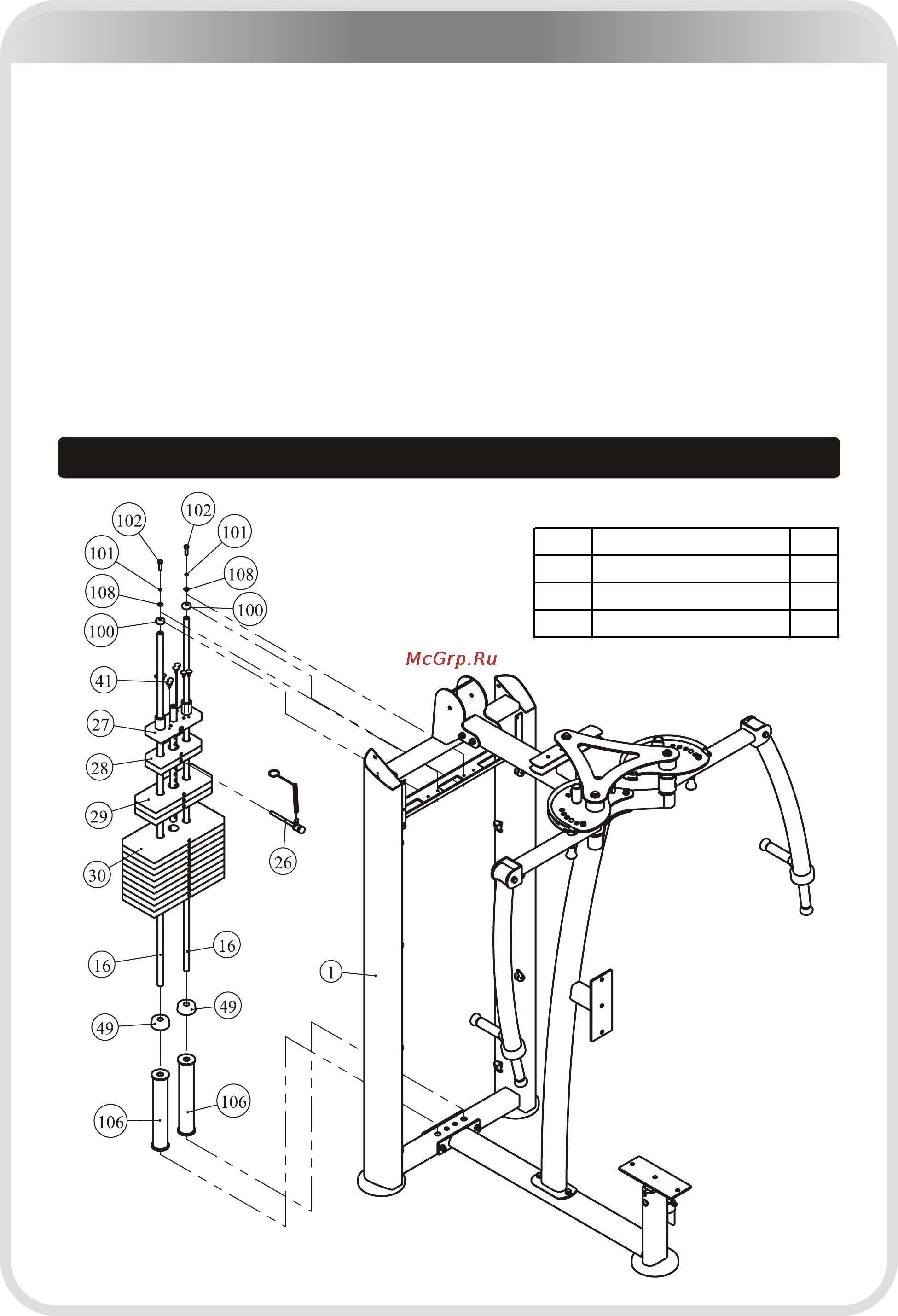

STEP 3

1. Attach:

● two Guide Rod (#16) ● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#49)

● ten Weight Plate 15LBS (#30) ● three Weight Plate 10LBS (#29)

● two Weight Plate 5LBS (#28) ● one Top Plate (#27)

● two Rubber Plug (#100) ● two Weight Stack Space (#106)

to the Weight stack Frame (#1) using:

● two M8*30 HHB (#102) ● two Φ8 Spring Washer (#101)

● two Φ9*Φ22*1.6 Flat Washer (#108)

2. Attach the Selector Pin W/Coil (#26) to the Top Plate (#27).

3. Attach eight Button (#41) to the Top Plate (#27).

Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.

─ 13 ─

Item Description Qty

28 Weight Plate 5LBS 2

29 Weight Plate 10LBS 3

30 Weight Plate 15LBS 10
