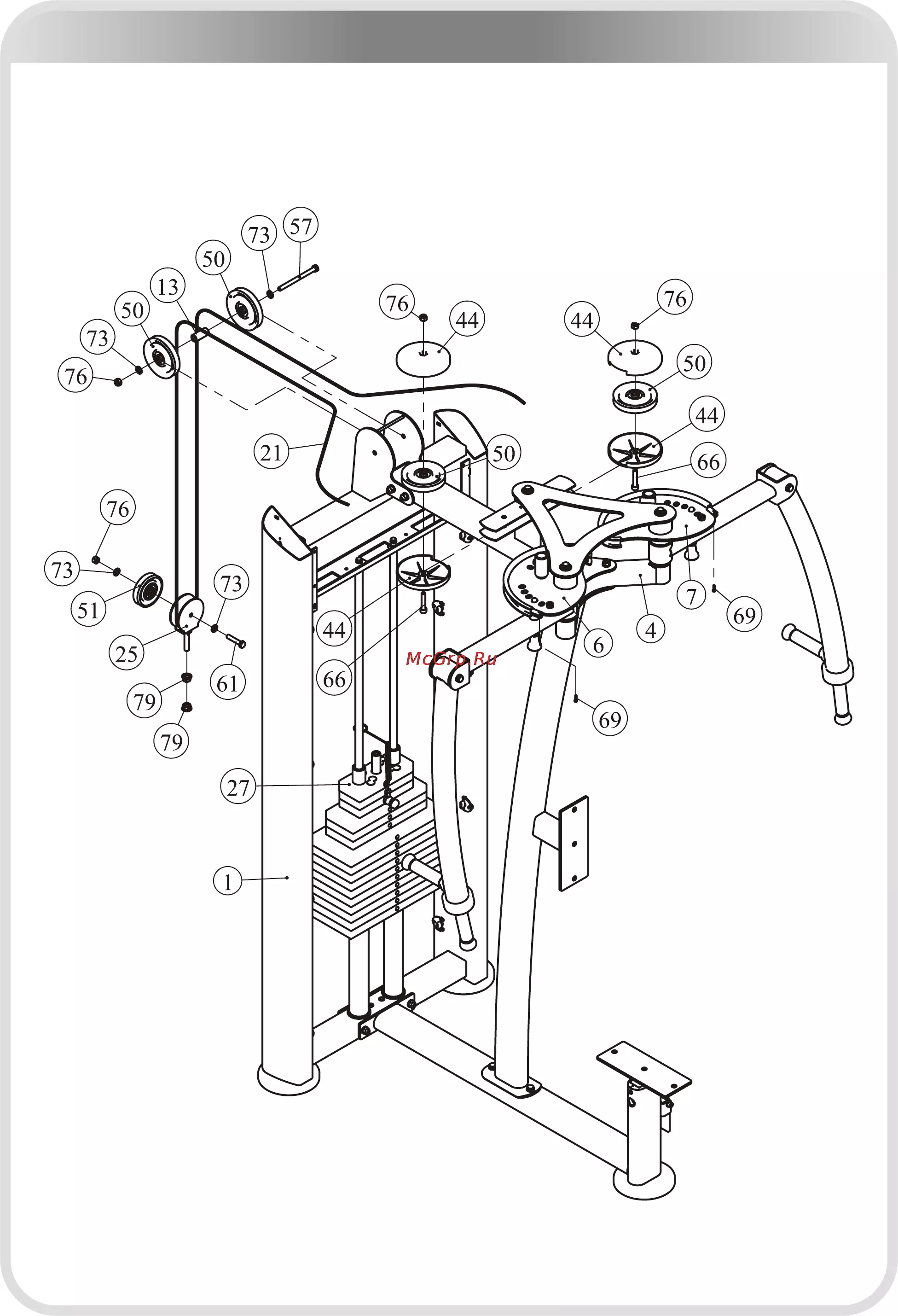

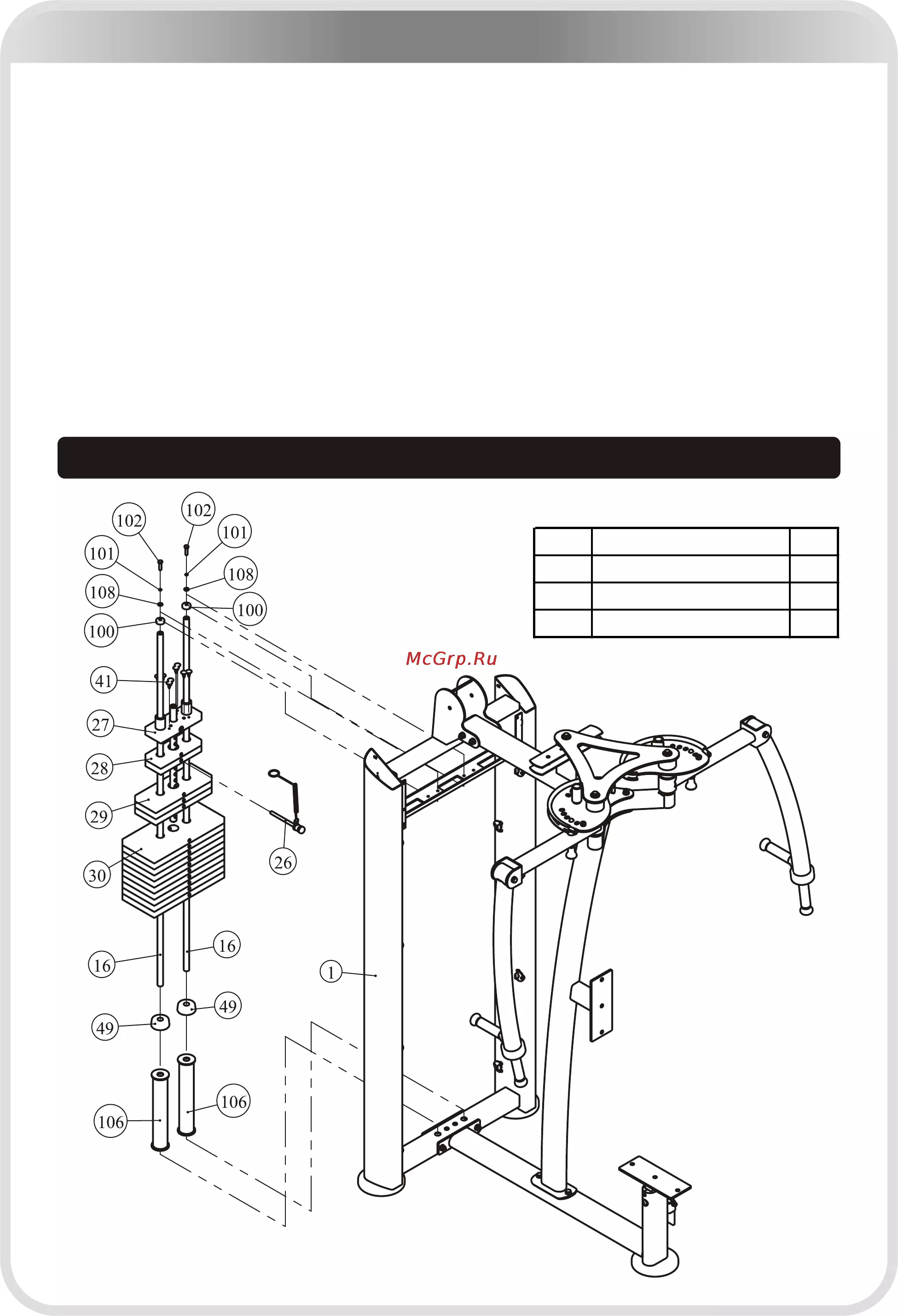

Assembly

1. Attach two 4.5" Pulley (#50) to the Weight stack Frame (#1) using:

● one M10*130 HHB (#57)

● two Φ11*Φ20*2 Flat Washer (#73)

● one Φ20*Φ11*47 Spacer (#13)

● one M10 Nylon lock Nut (#76)

2. Attach two 4.5" Pulley (#50) to the Top Cross Brace (#4) using:

● four Pulley Cover (#44)

● two M10*50 SHCS (#66)

● two M10 Nylon lock Nut (#76)

3. Attach one Cable (#21) to the Right Cam (#6), the Left Cam (#7) using:

● two M4*15 Socket Head Cap Screw (#69)

4. Attach the Pulley Bracket (#25) to the Top Plate (#27) using:

● two 1/2"-13 Hex Flanged Nut (#79)

5. Attach one 3.5" Pulley (#51) to the Pulley Bracket (#25) using:

● one M10*50 HHB (#61)

● two Φ11*Φ20*2 Flat Washer (#73)

● one M10 Nylon lock Nut (#76)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 4
