Assembly

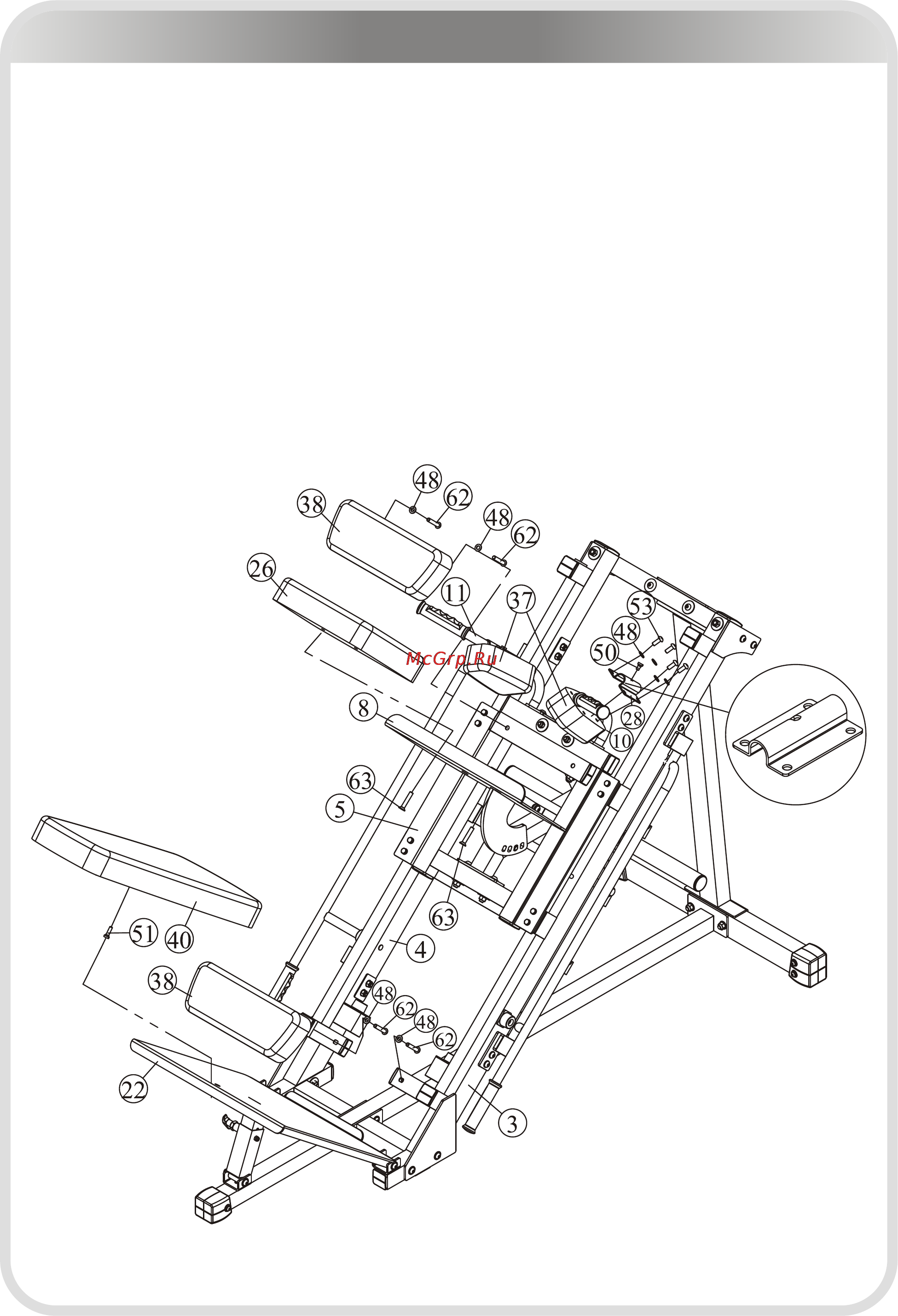

Step 4

1. Attach Shoulder Pads (#37) to Left and Right Handle Bars (#10,#11) using:

two Shoulder Connector (#28) eight M10*25 BHCS (#53)

eight Φ11*Φ20*2 Washer (#48) two M8*12 Screw (#50)

2. Attach remaining Pads (#40,#38,#26) using:

one M8*25 Screw (#51) four Φ11*Φ20*2 Washer (#48)

two M10*55 BHCS (#63) four M10*55 BHCS (#62)

NOTE: Wrench Tighten bolts and Nylon Lock nuts.
