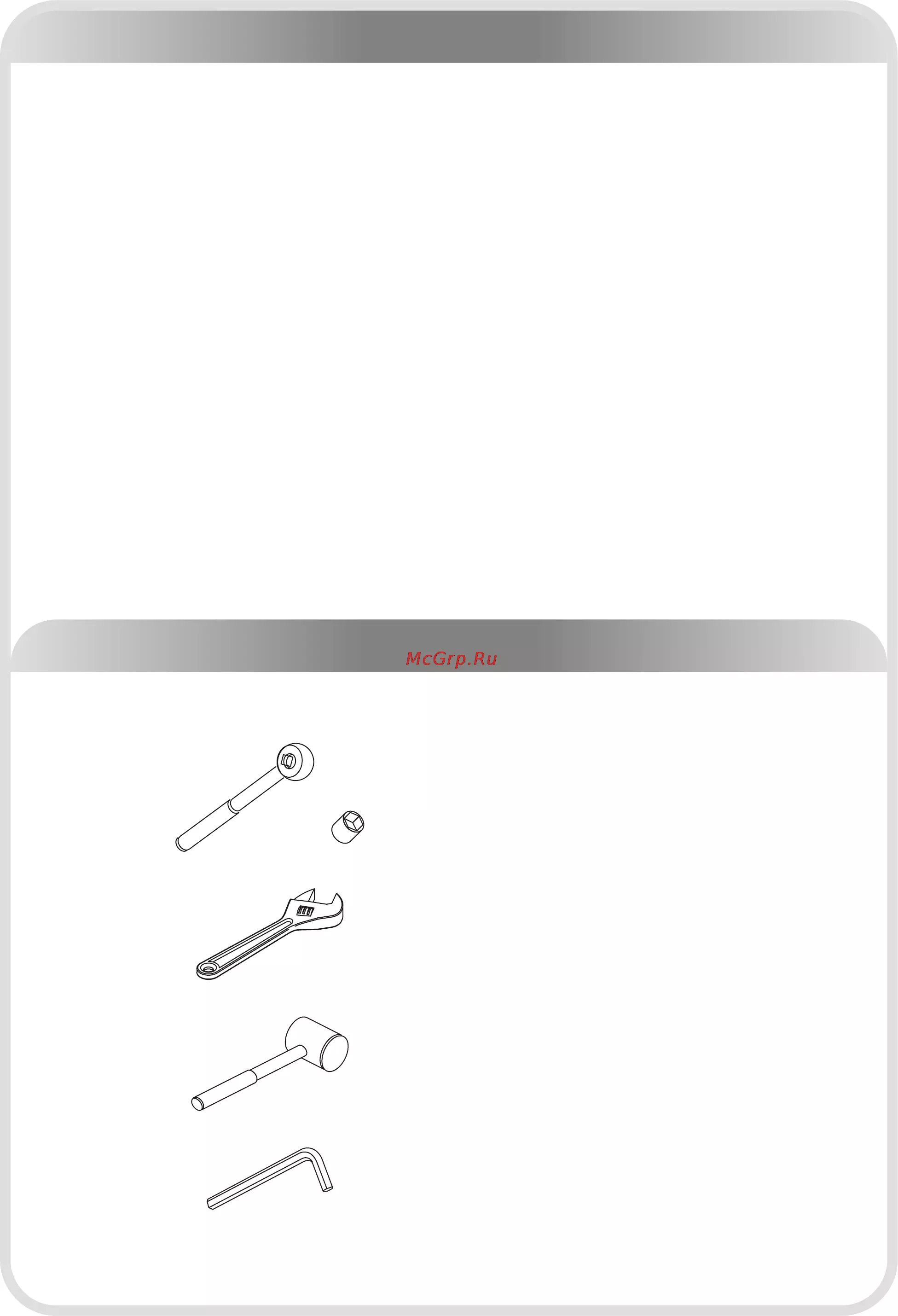

─ 5 ─

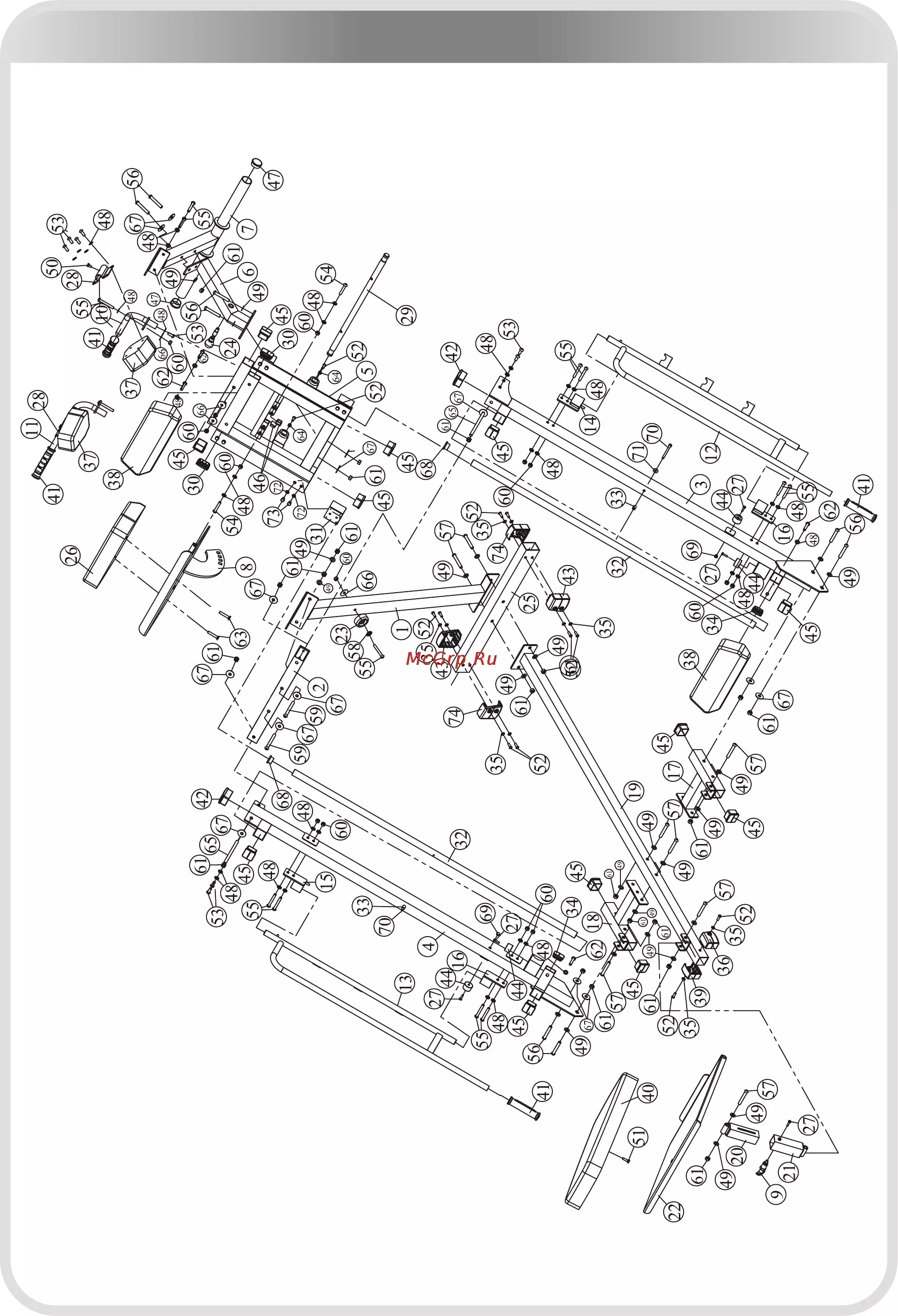

Parts List
NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED
Item No.
Description Qty
Item No.
Description Qty
1 Rear Upright 1 40 Big Back Pad 1
2 Top Cross Frame 1 41 Grip 4
3 Left Slide Frame 1 42 Plug □50.8*76.2 2
4 Right Slide Frame 1 43 Right Foot Cap □50.8*76.2 2
5 Carriage 1 44 Small Bumper 4
6 Connecting Tube 1 45 Plug □50.8 13
7 Weight Holder 1 46 Plug □25 2
8 Small Foot Plate 1 47 Round Plug Φ48 2
9 Pop Pin(Locking) 1 48 Flat Washer Φ11*Φ20*2 42
10 Left Handle Bar 1 49 Flat Washer Φ13*Φ24*1.5 25
11 Right Handle Bar 1 50 Slotted Set Screw M8*12 2
12 Left Safety Bar Catch 1 51 Slotted Set Screw M8*25 1
13 Right Safety Bar Catch 1 52 Button Head Cap Screw M8*25 12
14 Left Safety Bar Mount W/Pin 1 53 Button Head Cap Screw M10*25 14
15 Right Safety Bar Mount W/Pin 1 54 Button Head Cap Screw M10*60 2
16 Safety Bar Mount 2 55 Button Head Cap Screw M10*75 13
17 Left Support Frame 1 56 Button Head Cap Screw M12*75 8
18 Right Support Frame 1 57 Button Head Cap Screw M12*80 8
19 Main Base Frame 1 58 Steel Bumper Washer 1
20 Telescope Frame For Adj Foot Plate 1 59 Button Head Cap Screw M12*125 2
21 Adj Support 1 60 Nylon Lock Nut M10 15
22 Big Foot Plate 1 61 Nylon Lock Nut M12 21
23 Big Rrbber Bumper 1 62 Button Head Cap Screw M10*55 4
24 Pop Pin 1 63 Flat Philips Screw M10*55 2
25 Rear Base Frame 1 64 Hex Nut M8 2
26 Small Back Pad 1 65 Shaft Bolt M12*204 2
27 Button Head Philips Screw M6*25 5 66 Flat Washer Φ11*Φ38*2 5
28 Shoulder Conneactor 2 67 Flat Washer Φ13*Φ38*2 14
29 Stop Beam 1 68 Round Plug Φ38 2
30 Plug □30*60 2 69 Hole Cover Φ10 2
31 Aluminium Pillow Block Bearing 4 70 Bolt 5/16-18*115 2
32 Linear Shaft 2 71 Flat Washer Φ8.5*Φ22*2 2
33 Space 2 72 Spring Washer 3/8 8
34 Plug □25*50 2 73 Bolt 3/8-16*16 8
35 Flat Washer Φ9*Φ16*1.6 10 74 Left Foot Cap □50.8*76.2 2
36 Left Foot Cap □50.8 1 75 Flat Wrench 1
37 Shoulder Pad 2 76 Hex Key s=6 1
38 Seat Pad 2 77 Wrench 1
39 Right Foot Cap □50.8 1
