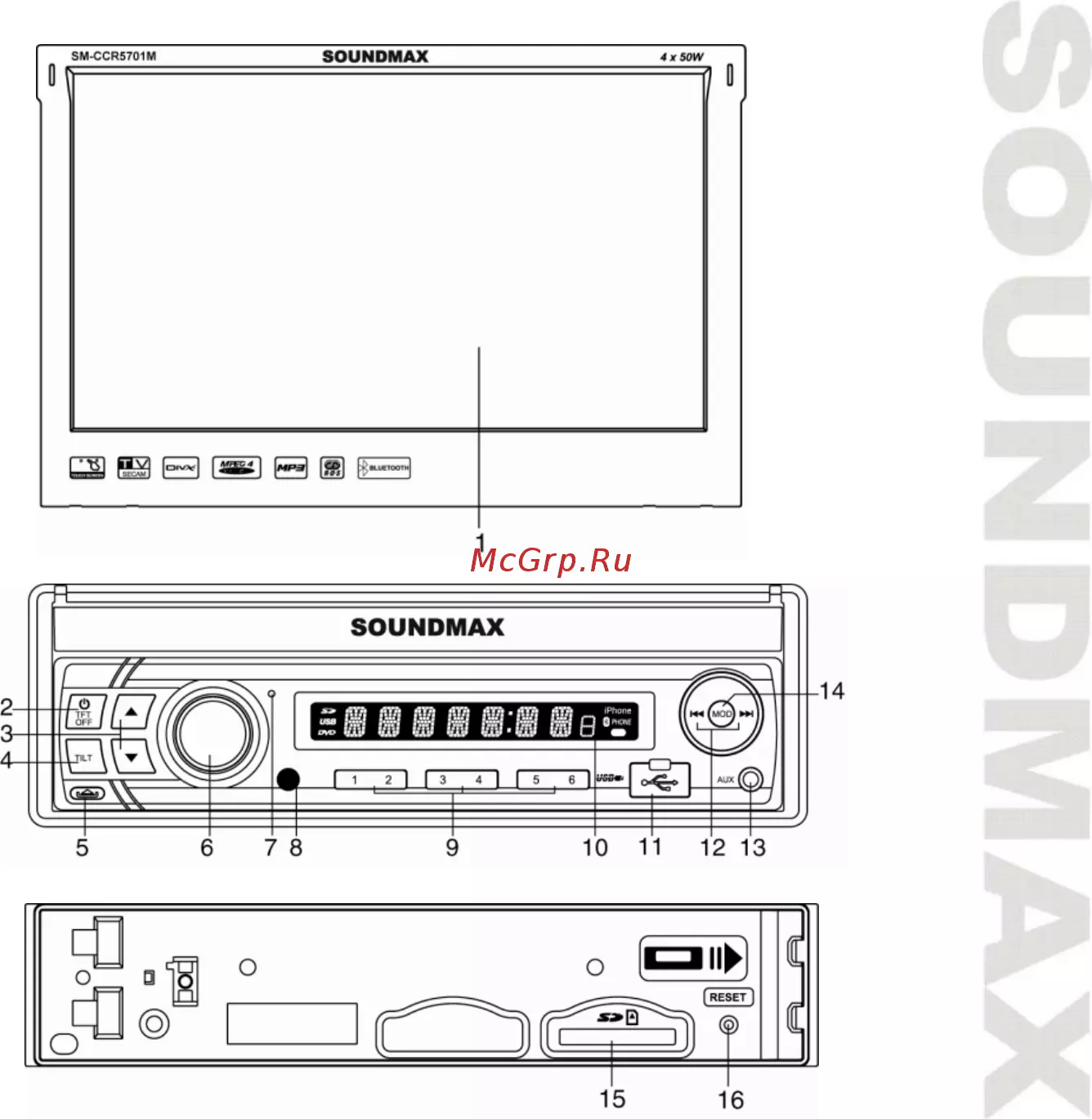

AV Input

The AV Input jack is a set of composite inputs on the rear of the unit. Press the MOD button to choose AUX.

You can use it to connect any portable audio/video devices such as a DVD player or VCD player to the unit.

Refer to the Connection diagram for more details.

Backup Camera Input

The backup camera input is on the back of the unit. (refer to the wiring diagram). This input (in yellow) is

for connecting backup camera for parking. You must connect the VCC wire (purple-white) to the reverse gear

switch in order to activate this video input mode when you switch the reverse gear of your car. Please refer to

the wiring diagram for more details.

Video Output

The Video out jack (in yellow) is for connecting monitor(s). You must connect a car monitor in order to

operate this unit in another monitor. Consult your dealer for any kinds of monitors that are suitable to use in

car.

RCA Output (2 sets)

The RCA out jacks are for connecting amplifiers, equalizers, or other audio components that require a pre-

amp out connection. (Red=Right, White=Left) Follow the manufacturer’s instructions for the audio component

that you are connecting.

Subwoofer Output

The Subwoofer Out jack (in green) is for connecting up to 2 subwoofer amplifiers. Follow the amplifier’s

installation instructions.
