Mounting

Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no

obstacles (wires, dashboard elements, etc) for the unit installation.

After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the

sleeve in place.

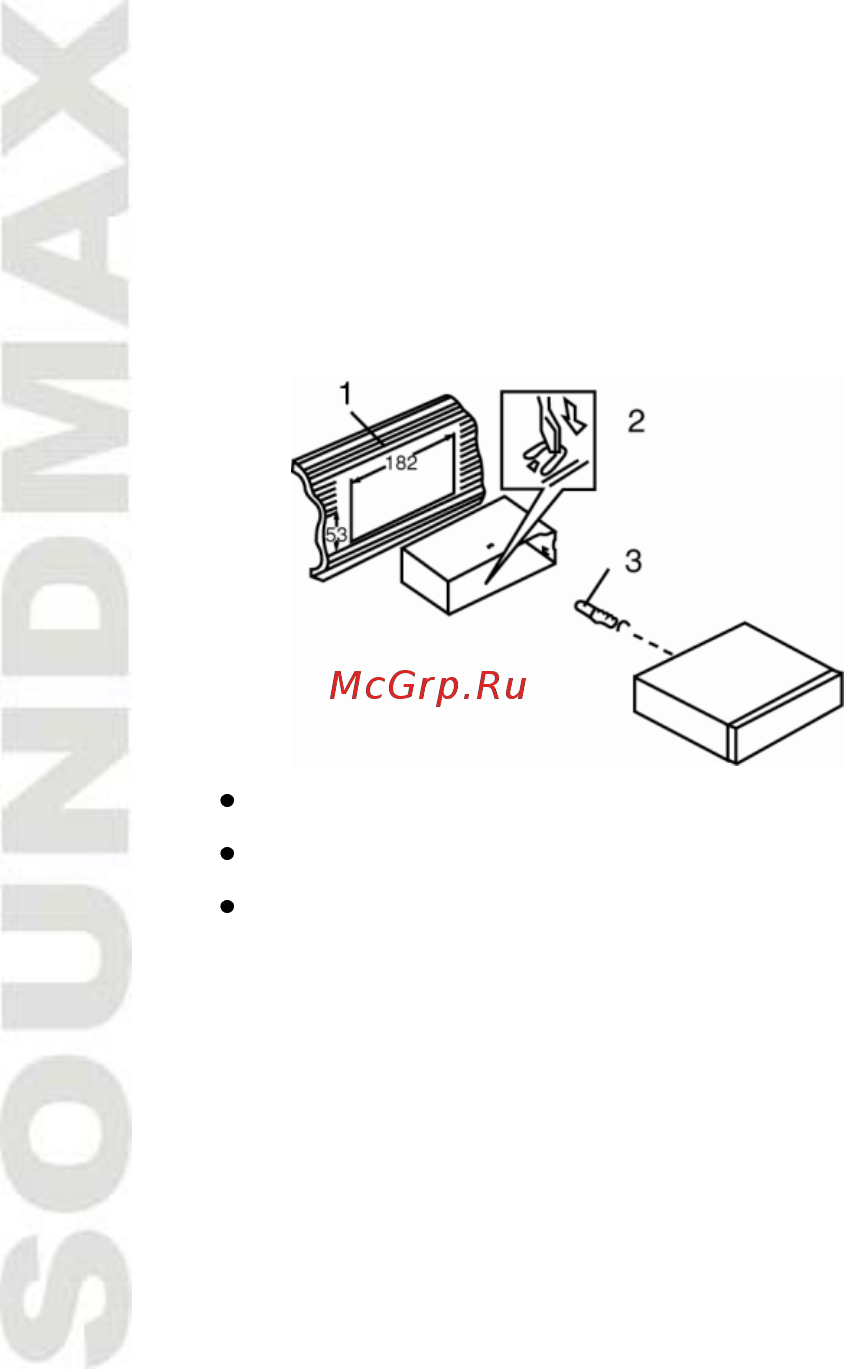

Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as

shown in the picture. You can bend the strap to the needed angle with your hands.

Make the necessary wire connections. Ensure the connections are correct.

Install the unit into the sleeve until the side locks are fixed.

The device is distinguished by a high degree of output. During operation, this results in a strong heat

generation. Therefore no cables or other parts may adjoin the device. If their insulation melts, there

is the risk of a short circuit or fire.
