Detaching the dome cover
Important:
• Afterremoval,retainthedomecoverfixingscrewsoasnottolose.Thescrewisrequiredwhen
attaching the dome cover. (☞ Page 34)
• Removethecoverfilmfromthedome section of the dome cover after the installation is com-
plete. Do not touch the dome section by hand directly after removing the cover film.

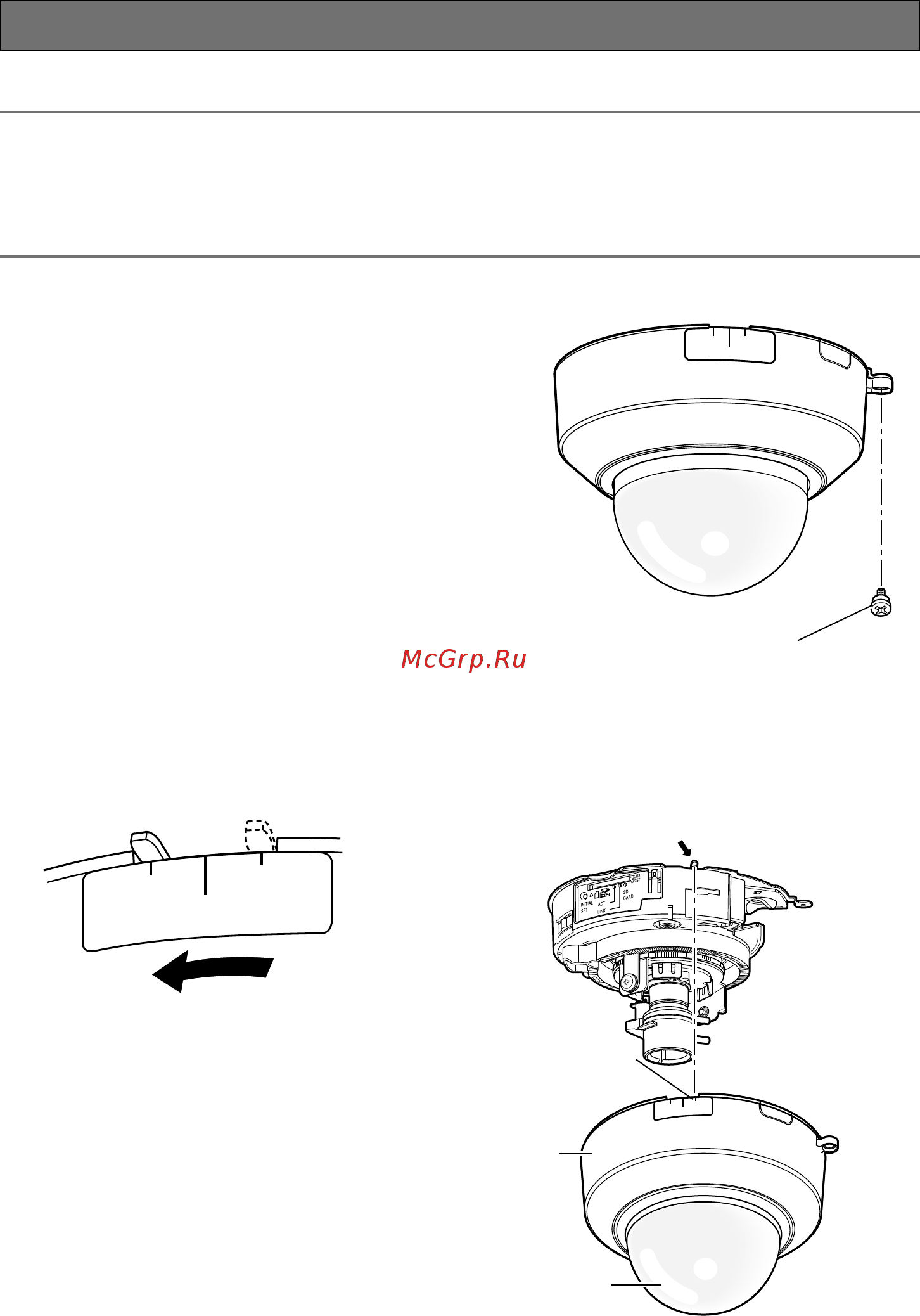

z Remove the dome cover fixing screw (M3,
step screw, x1).
x Rotate the dome cover counterclockwise two steps, and align the indication "OPEN" to the
maker of the camera to detach the dome cover.
Dome cover fixing screw
(M3, step screw)
LOCK
ADJUST
OPEN
ADJUST
OPEN
LOCK
Marker
Dome
cover
Dome alignment
indication
"OPEN"
Dome section
ADJUST
OPEN
LOCK
