Panasonic WV-SF332 [21/44] Installing the camera directly on the ceiling or wall
![Panasonic WV-SF332 [21/44] Installing the camera directly on the ceiling or wall](/views2/1013788/page21/bg15.png)
21

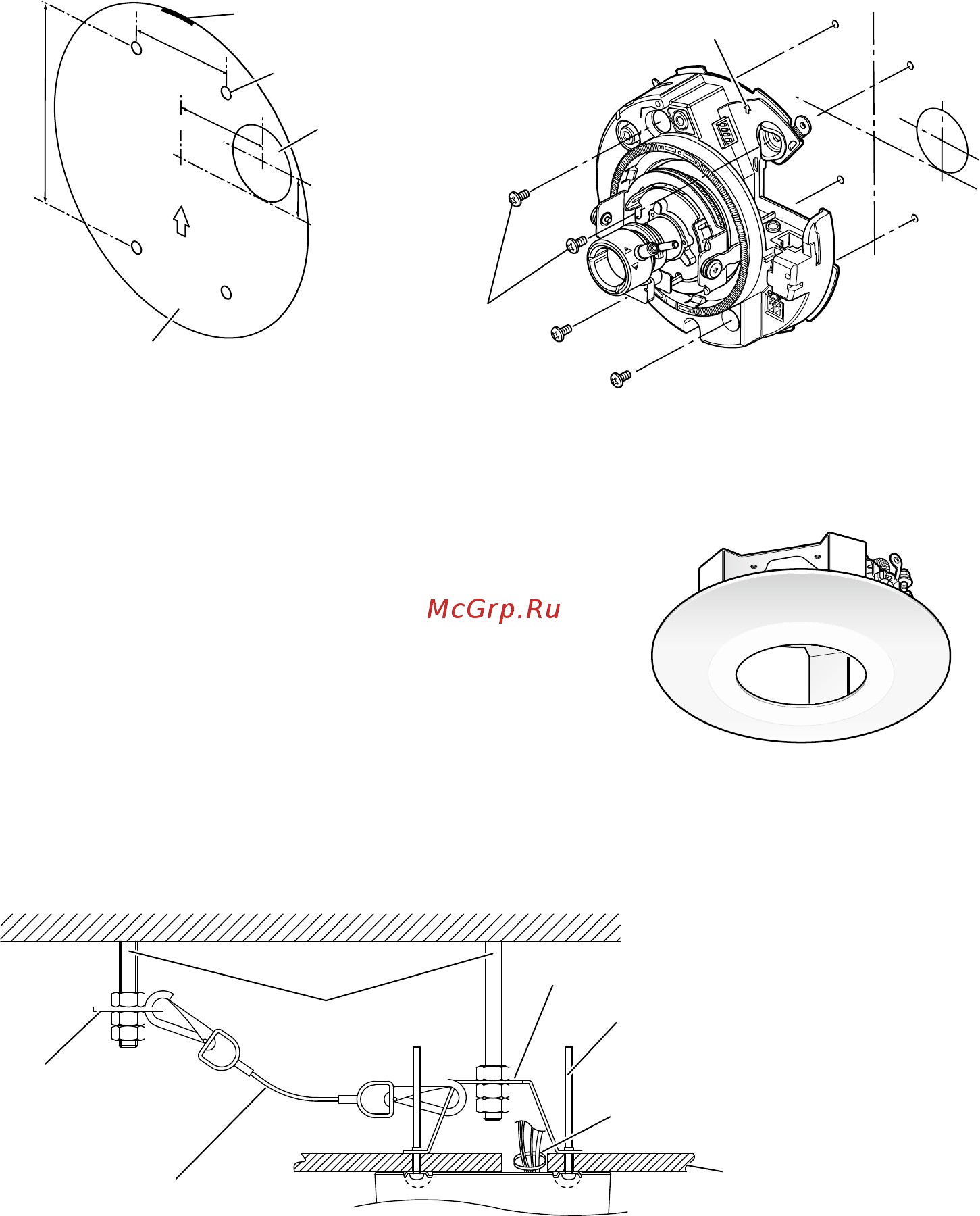

Installing the camera directly on the ceiling or wall
Place the installation template label (accessory) on the ceiling or wall, and make a hole to pass the
cable.
Remove the template label, and mount the camera by fixing 4 screws (locally procured). (☞ Page
28 )
FRONT
TOP
EXT I/O
AUDIO
OUT
MIC
LINE IN
10BAS
100BA
12V=IN
4
2
3
1
MONITOR
OUT
N
F
20 mm {13/16"}
83.5 mm {3-5/16"}
Direction marker for installation
Cable access hole for ceiling/wall
Recommended screw (M4: 4 pcs.)
Side cable access hole
Screws
(locally procured)
Installation template label (accessory)
46 mm
{1-13/16"}
40 mm {1-9/16"}
Using the optional ceiling mount bracket WV-Q168
It is possible to reduce the exposed portion of the camera body using the optional ceiling mount
bracket. Refer to WV-Q168 Operating Instructions
or "Installation" (☞ page 28) for how to mount the
camera.
Using the optional ceiling mount
bracket WV-Q105 (PAL models only)
Refer to WV-Q105 Operating Instructions and "Installation" (☞ page 28) for how to mount the cam-
era in case of using the optional ceiling mount bracket.
Anchor bolt
Safety wire angle
Roof space
Safety wire
Camera
WV-Q105 (option)
(4 pcs, WV-Q105 supplied)
Cable tie (accessory)
Ceiling board such
as plaster board
