Insert/remove an SDHC/SD memory card
Important:
• BeforeinsertingtheSDHC/SDmemorycard,turnoffthepowerofthecamerafirst.
• WheninsertinganSDHC/SDmemorycard,makesurethedirection.
• BeforeremovingtheSDHC/SDmemorycard,select"Notuse"for"SDmemorycard"onthe
[SD memory card] tab of the setup menu first. Turn off the power after "Not use" selection, and
then unload the SDHC/SD memory card. When the SDHC/SD memory card is inserted or
removed with the power on, data in the SDHC/SD memory card may be damaged.
(☞ Operating Instructions (PDF))
z Detach the dome cover. (☞ Page 18)
x Insert an SDHC/SD memory card fully into the
SDHC/SD memory card slot.
c Attach the dome cover. (☞ Page 34)
v When removing the SDHC/SD memory card
from the SDHC/SD memory card slot, detach
the dome cover (☞ page 18), and push the
card until the lock is released. After removal,
attach the dome cover. (☞ Page 34)

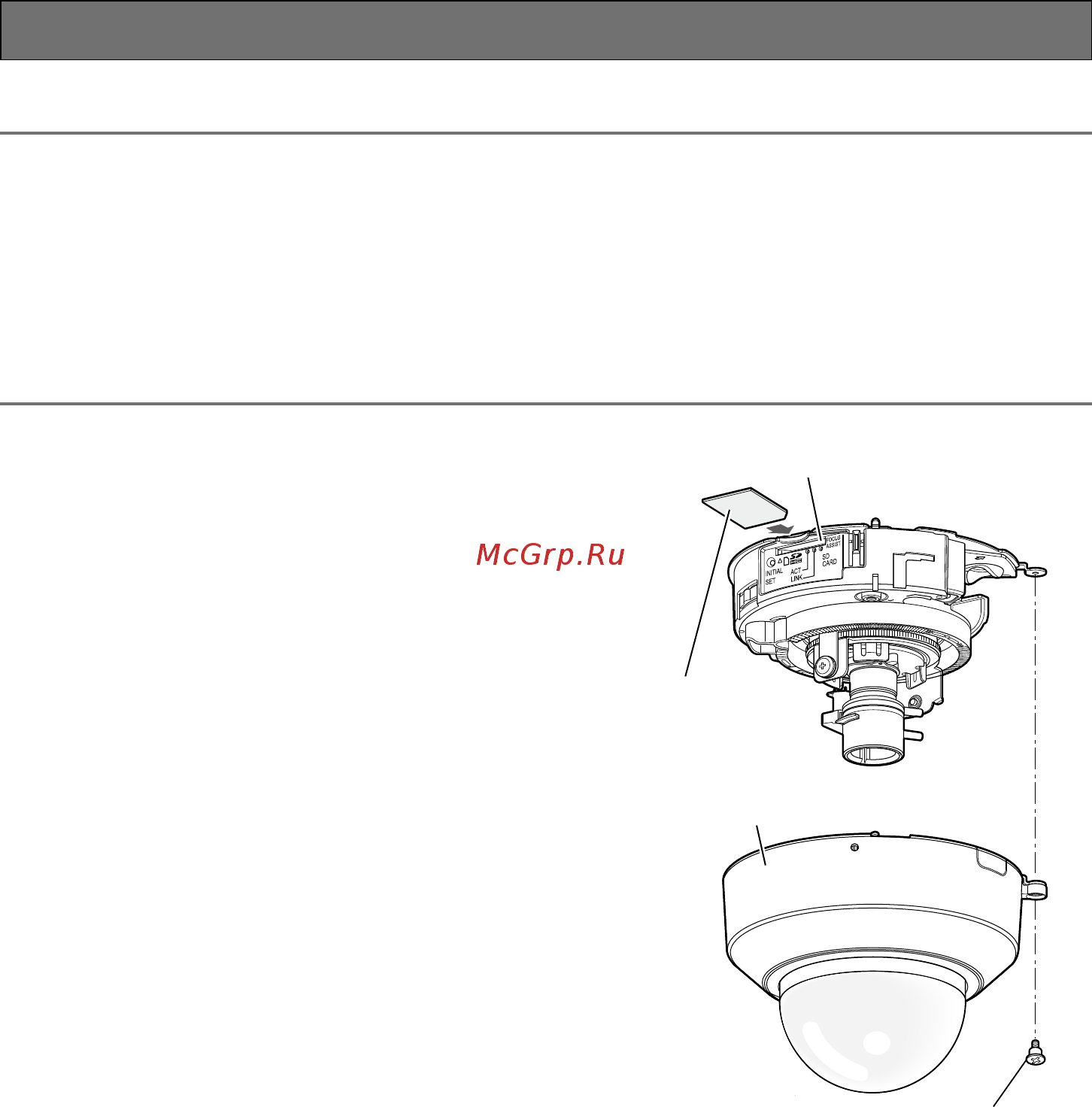

SDHC/SD memory card slot
Dome cover
Dome cover fixing screw
(M3, step screw)
