35
Important:
• Forinnerdomeadjustments,adjustthemarkertothe"ADJUST"position. If the dome section
is moved with unreasonable force from the "LOCK" position, this may be a cause of destruc-
tion.

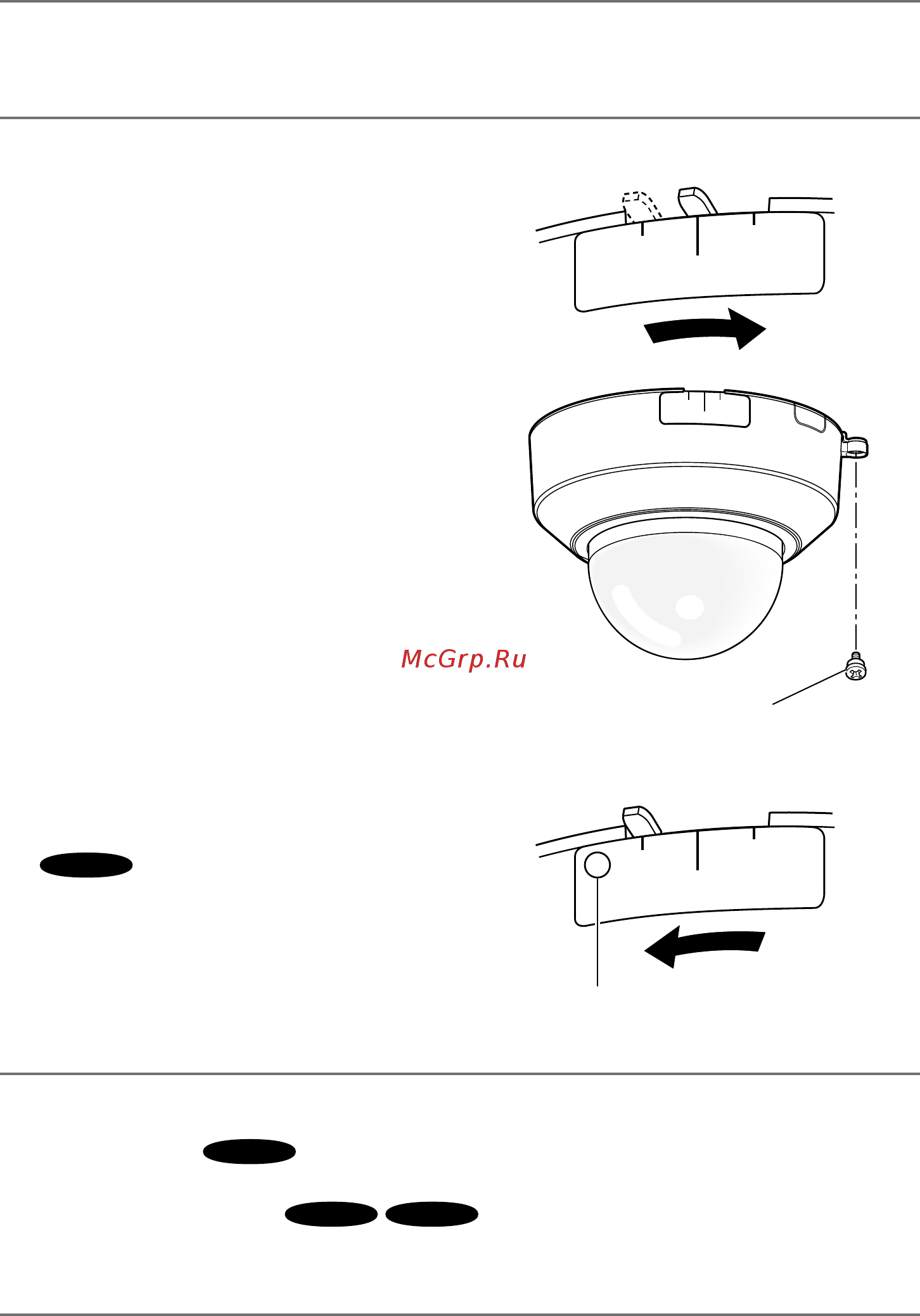

v Rotate the dome cover clockwise to adjust
the marker to "LOCK".
b Fix the dome cover and camera by tighten-
ing the dome cover fixing screw (M3, step
screw, x1).
n After the installation is complete, remove
the cover film, which was removed halfway
in Step 2, completely from the dome sec-
tion.
m Push down the auto focus (AF) button with
a ballpoint pen to adjust the focus again.
SF336
Refer to page 30 for further information
about adjustment.
Important:
• Before pressing the auto focus (AF) button, make sure that the marker is adjusted to the
"LOCK" position.
SF336
• Whenusingamodelequippedwiththefocusassist(F.A.)function,defocusmaybecausedby
the dome cover attached.
SF335
SF332
In this case, the focus adjustment will be easier by detaching the dome cover and moving the
focus ring to the "N" direction.
• Beforeattachingthedomecover,makesurethatthesubjectispresent.
ADJUST
OPEN
LOCK
Dome cover fixing screw
(M3, step screw)
LOCK
ADJUST
OPEN
ADJUST
OPEN
LOCK
AF
Auto focus (AF) button
