Antari HZ-100 [4/28] Caution

•Operation

1. Place the unit on a flat surface. Plug power cord into a grounded electrical outlet.

2. Set the power switch to “ON” on the back of the machine. Make sure that the red

indicator light is on.

3. Remove the black liquid tank cap, pour hazer liquid into the liquid tank about 1/2 full,

be careful not to exceed the maximum fluid level. DO NOT OVERFILL. Use only

dealer-recommended high-quality hazer liquid . Any other types of fluid may cause

health hazard and damage the unit. Use of any other liquid may void warranty.

4. Connect the remote controller to the unit, press the red button ON/OFF to start up the

unit. (For further information on operating (including DMX) your Antari HZ-100,

300, and 400 Hazer, see the section titled, ”Remote Control Operation”).

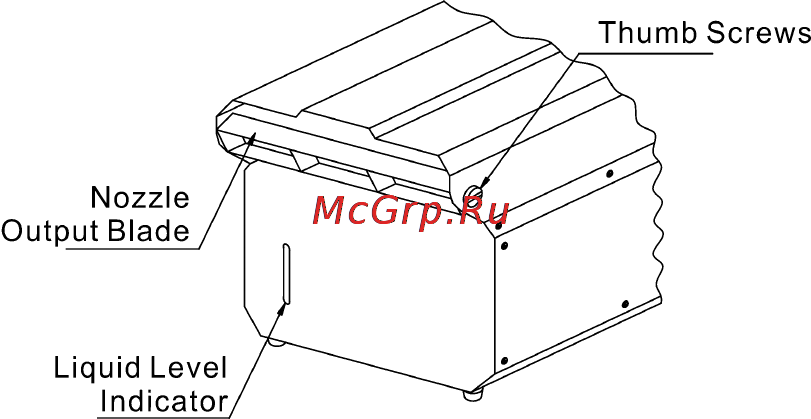

5. There’s an adjustable nozzle blade where you can adjust the angle of the haze output

by adjusting the thumb screws indicated below:

Antari HZ-100, HZ-300 and HZ-400 Haze machines produce safe, dry clean and virtually

invisible haze when used with HZL-1 Haze liquid with an extremely long hanging time. For

ideal results, haze when touch-up is needed.

•Caution

1. Always monitor and make sure that there is sufficient HZL liquid inside the tank during

operation.

2. Pour hazer liquid into the liquid tank about 1/2 full, be careful not to exceed the

maximum fluid level. DO NOT OVERFILL. The extra 1/2 tank space is reserved for

air-flow purpose. Overfilling will cause the unbalance in air pressure which will affect

the haze liquid to flow back to the compressor and may lead damage of the compressor

unit.

3. When the machine is operated for a longer period of time under open-air conditions,

falling dust/debris can enter the machine and may create residue inside the muffler of the

compressor. It will clog the filtration fibre on the muffler. Contact an authorized Antari
