Antari HZ-100 [6/28] Dmx operation

Press the yellow button (TIMER ON/OFF) to activate the timer function for the

knobs DURATION and INTERVAL located on the top of the controller. Adjust the

interval between each haze emission (within the range from 10 to 200 seconds) by

means of the INTERVAL control knob. Adjust the duration of each haze emission

(within the range of 5 to 100 seconds) by means of the DURATION control knob.

HCR-1: Wireless remote controller with ¼” stereo plug for Antari Hazer models HZ-100 /

HZ-300 and HZ-400. Attach the receiver’s magnetic base to the hazer. Plug the

receiver’s cable into the hazer’s remote control input. Using the sending unit, your

Antari Hazer can be operated from a distance at least 50 meters when under no

obstruction. Start haze emission by pressing the small button on the sending unit.

Stop haze emission by pressing the large button. Multiple Antari Hazers may be

controlled using only one sending unit.

*The control of the master unit will override all other controllers when connecting the haze

machine via DMX*

•

DMX Operation

The units HZ-300 and HZ-400 have on-board DMX control. These models use 1

channel to control volume output operation. Each channel has a value range of 0 to

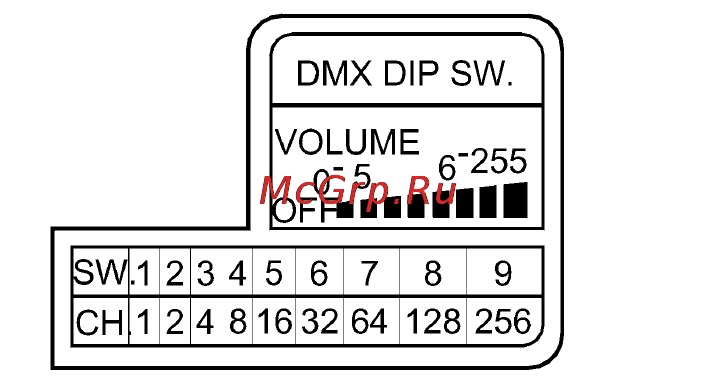

255. The DMX channel is set on the rear panel of the HZ-300 and HZ-400 by setting

the dip switches to the desired channel.

If Channel A has a value from 0 to 5, the unit is OFF.

Between the values 6 to 255 the volume of fog output is regulated. With 6 being

the minimum volume of fog produced and 255 approaching the maximum. The

volume output rises as the DMX value is increased.

Note: The controls HC-1 and HCR-1 will be disabled when the hazer is in DMX mode.
