Caiman VAL6 GN5 [7/24] Location of safety labels
![Caiman VAL6 GN5 [7/24] Location of safety labels](/views2/1150161/page7/bg7.png)
2

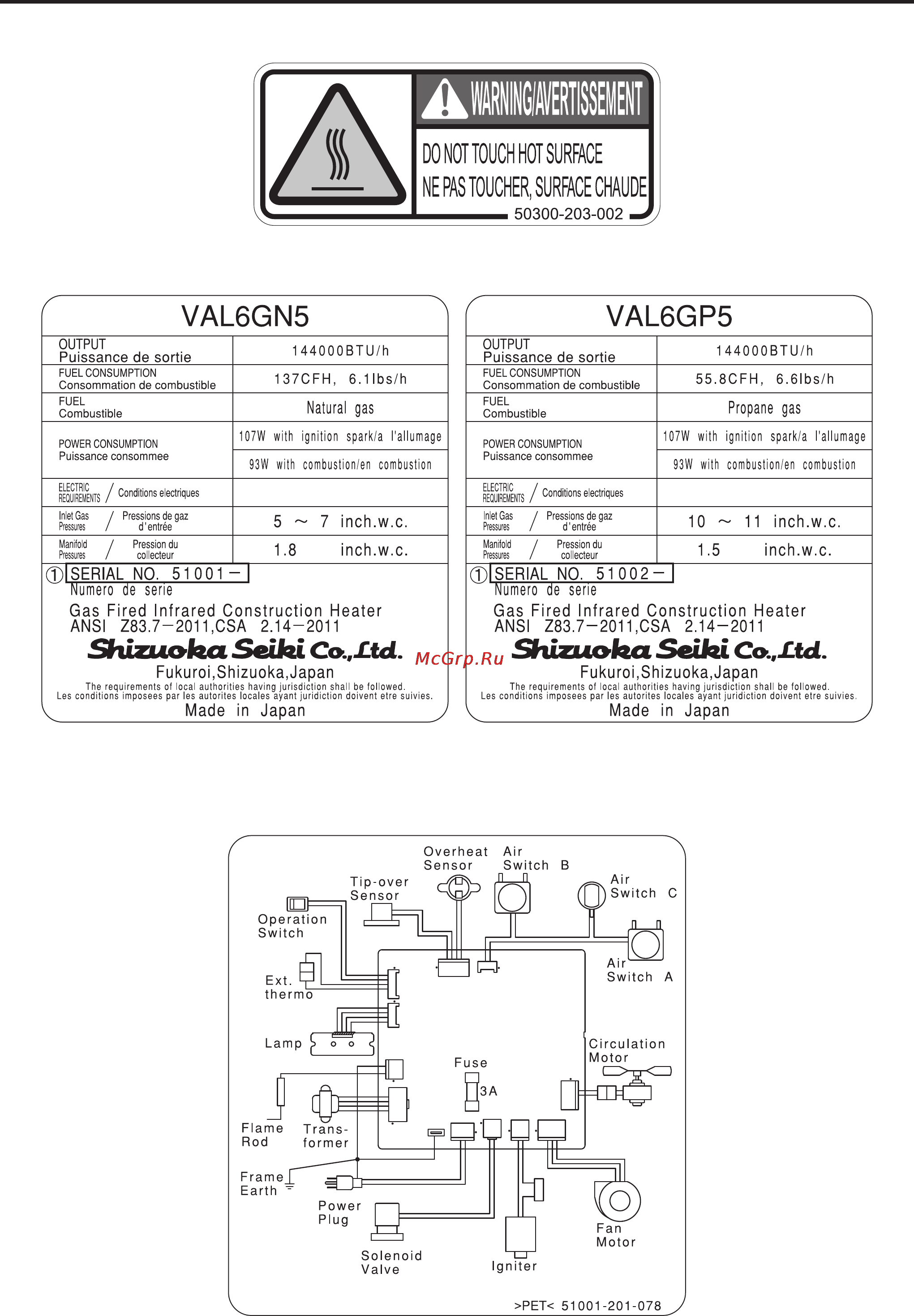

Location of Safety Labels
(3) Hot surface warning label
(4) Specication labels
SERIAL NO. is required for consulting with your dealer.
(5) Wiring diagram label
230V 50Hz phase 1
230V 50Hz phase 1
