User manual

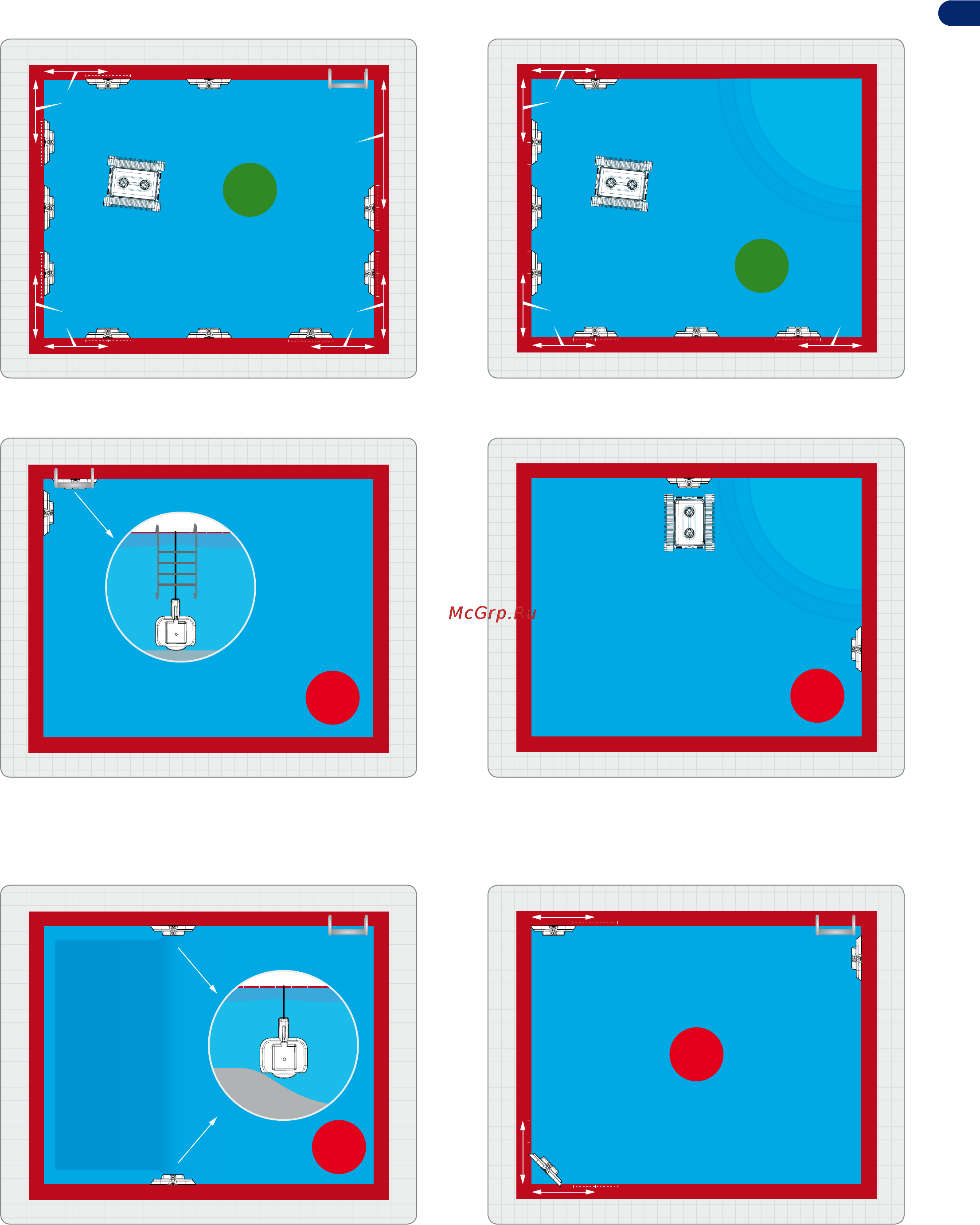

Here are some examples of where the charging base can be installed and where it cannot be installed:

1. position the wire of the charging base 30 cm from the

corner of the wall. It can be installed approximately in

the centre of the wall of the swimming pool at a distance

of at least 3 meters from the angle of the side wall on the

left of the recharging base.

2. in case of bottoms with level differences or steps,

place the charging base on the opposite wall. Observe

the above-mentioned distances.

Left

Centro

Centre

LeftCentreRight

Right

Centre Right

30cm

30cm 30cm

≥ 300 cm

Left

Left Centre

LeftCentreRight

Right

30cm

30cm 30cm

3. do not place the charging base under or near a ladder. 4. do not place the robot near steps. The robot may nd it

difcult to return to the charging base.

5. do not place the charging base on the wall near a level

difference.

6. do not place the wire of the charging base less than 30

cm from the corner. Do not place the recharging base

in the angle of the walls. It must be installed in contact

with one of the vertical walls of the swimming pool. Do

not place the recharging base under or near the stairs.
