Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be

regenerated. It must be replaced when led S1

flashes twice or at least every 4 months. The

alarm signal will only light up when the extractor

motor is switched on.

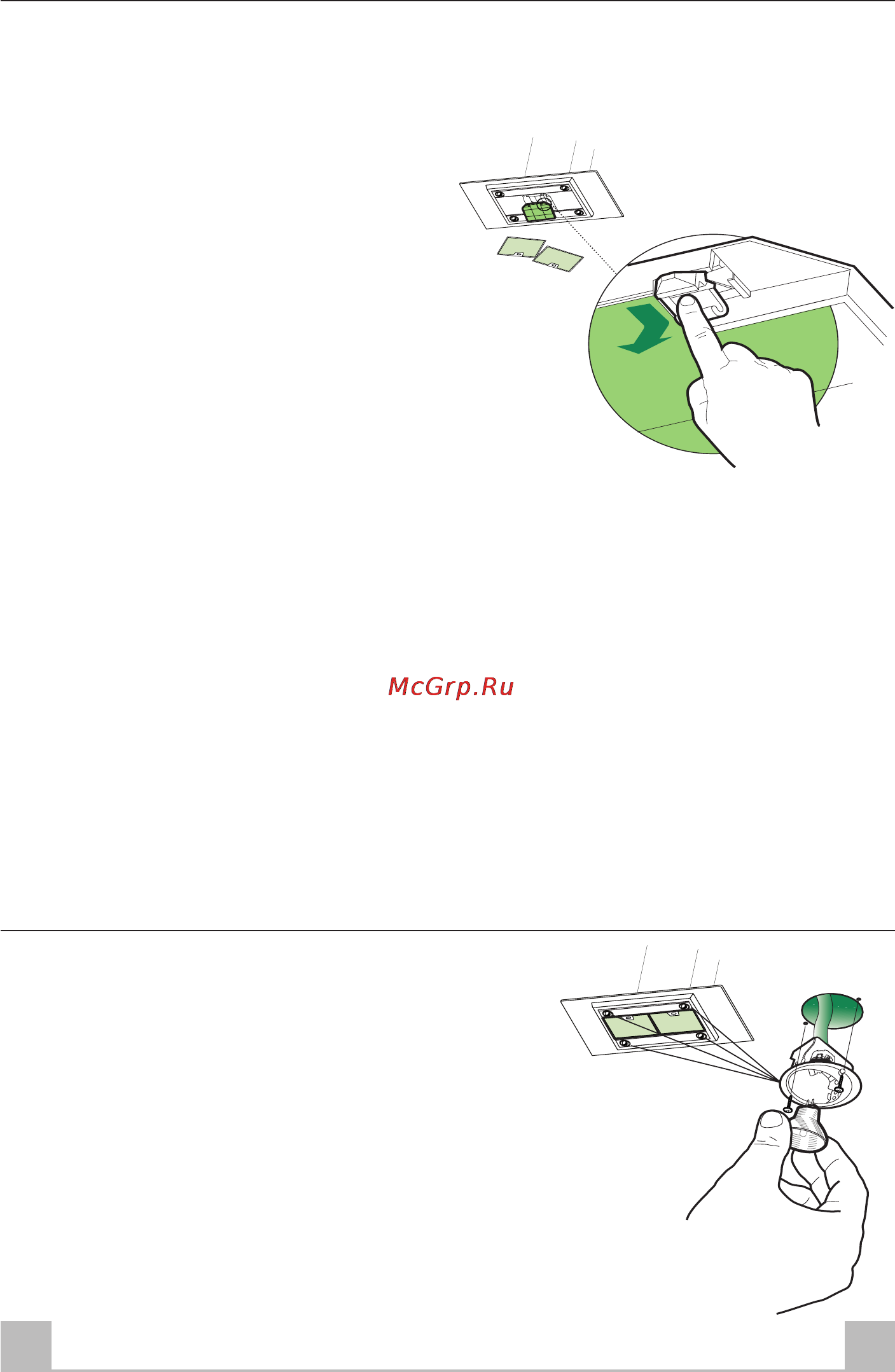

Alarm signal reset

• Switch off the lights and extractor motor.

• Press button V2 for at least 3 seconds, until the

leds start to flash.

Replacing the Filter

• Remove the metal grease filters.

• Remove the saturated activated carbon filter by

releasing the fixing hooks.

• Fit the new filter by hooking it into its seating

Replace the metal grease filters.

Alarm signal activation

• On the recirulcation version extractor hood, the

filter saturation alarm is activated during

installation or at a later date.

• Switch off the lights and extractor motor.

• Press button V2 for at least 10 seconds, until

the leds start to flash:

• 2 flashes of the activated carbon odour filter

saturation alarm led = filter ACTIVATED

• 1 flash of the activated carbon odour filter

saturation alarm led = filter DEACTIVATED

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support,

and pull it out of from the Hood.

• Extract the lamp from the Support.

• Replace with another of the same type, making

sure that the two pins are properly inserted in

the lamp holder socket holes.

• Replace the Support and fix it in place with the

two Screws removed as above.
