Smeg KSEIV97X [8/12] Flue assembly mounting the hood body
![Smeg KSEIV97X [8/12] Flue assembly mounting the hood body](/views2/1015068/page8/bg8.png)
18GB
12f
8b
8a
12c
12c
24
12e
Cmd
12c
Lux

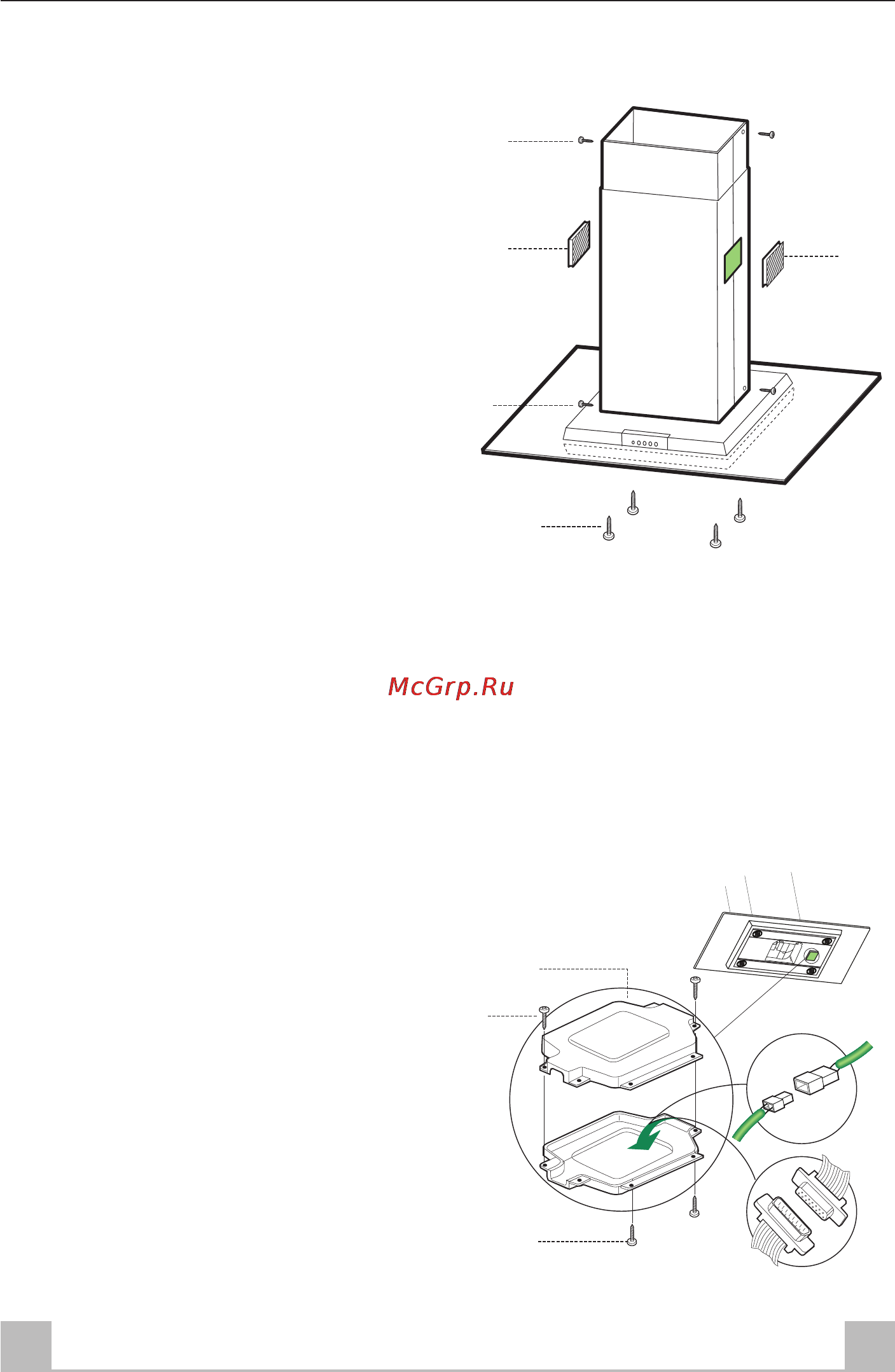

Flue assembly - Mounting the hood body
• Position the upper chimney section and fix the
upper part to the frame using the 2 screws 12c
(2,9 x 6,5) provided.
• Similarly, position the lower chimney section
and fix the lower part to the frame using the 2
screws 12c (2,9 x 6,5) provided.
Recirculation version
• Make sure that the outlet of the extension pieces
14.1 is horizontally and vertically aligned with
the chimney outlets.
• If this is not the case, remove the lower chimney
section and adjust the position by either
reversing the connection extension pieces 14.1
or by cutting the hood body extension 14 along
one of the thinner section channels denoting the
pre-fixed lengths, then reassemble as described
previously.
• Fit the directional grids 8a - 8b in their housings
making sure that the directional symbols are
towards the top. Also make sure that they are
correctly inserted in the connection extension
pieces 14.1.
Before fixing the hood body to the frame:
• Remove the grease filters from the hood body.
• Remove any activated charcoal filters.
• From below, use the 4 screws 12f (M6 x 10)
provided to fix the hood body to the frame.
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-
pole switch having a contact gap of at least 3
mm.
• Connect the control connector Cmd.
• Connect the lights connector Lux.
• Place the connector in the junction box 24 and
close it using the 2 screws 12e (2,9 x 9,5)
provided.
• Fix the junction box to the hood body using the
2 screws 12c (2,9 x 6,5) provided.
• For the recirculation version, fit the activated
carbon odour filter.
• Replace the grease filters.
