Smeg CS19-6 [4/32] Instructions for the installer

Instructions for the installer

2. INSTALLING THE APPLIANCE

It is the law that all gas appliances are installed by competent persons.

Corgi gas installers are approved to work to safe and satisfactory

standards. All gas installation, servicing and repair work must be in

accordance with the gas safety regulations 1984 (installation and use) as

amended 1990.

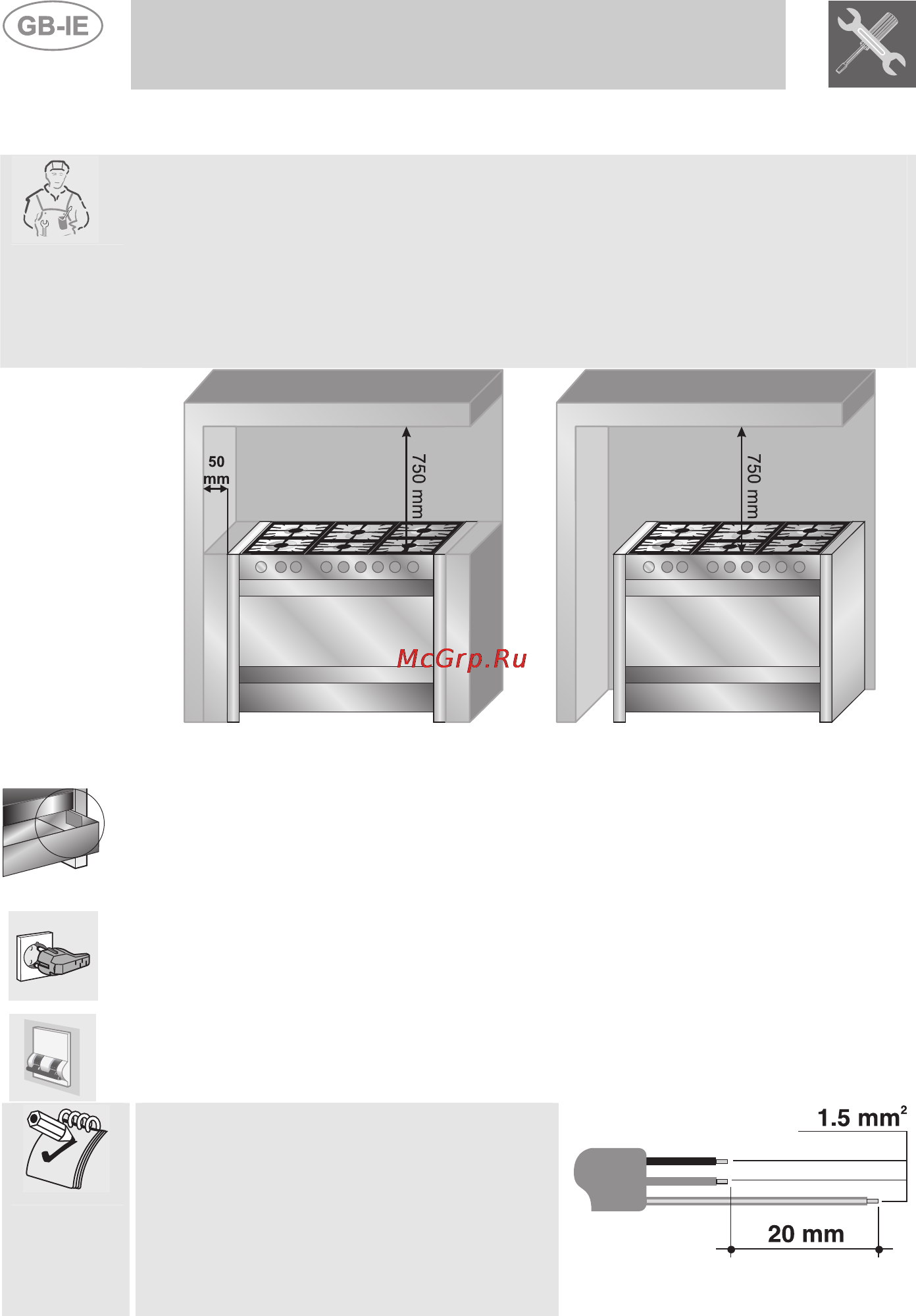

It can be installed against walls one of which is higher than the worktop

surface, at least 50 mm from the side of the appliance, as shown in the

installation class drawings A and B. Wall units or extractor hoods installed

above the appliance's work-top must be at least 750 mm above it.

A B

Built-in appliance Free-standing installation

2.1 Electrical connection

Make sure the voltage and the cross-section of the power supply line

match the specifications indicated on the identification plate positioned in

the storage compartment.

Do not remove this plate for any reason.

The plug at the end of the power cable and the wall socket must be the

same type (conforming to regulations in force). Check that the power line

is adequately grounded. Do not use reducers, adapters or shunts.

Fit the power supply line with a multipolar cut-out device with a contact

opening gap equal to or greater than 3 mm in an easily accessible

position close to the appliance.

If the power cable is replaced, the wire

section on the new cable must not be

less than 1.5 mm

(3 x 1.5 cable),

keeping in mind that the end to be

connected to the hob must have the

ground wire (yellow-green) longer by

at least 20 mm. Use only the special

cables available at our Service

Centres.
