Instructions for the installer

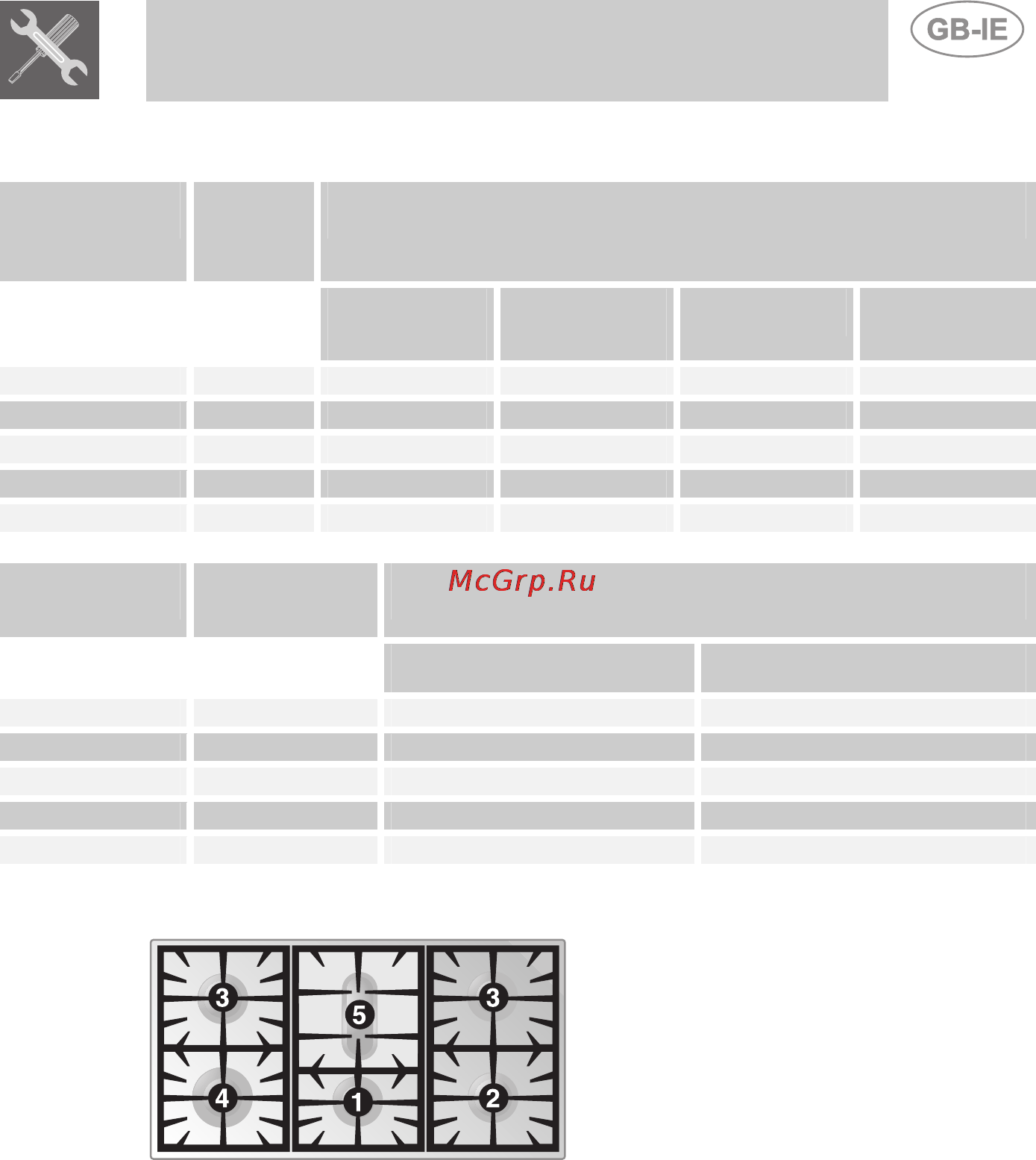

3.2 Burners and nozzles characteristics table
Burner
Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
Reduced
capacity
(W)
Capacity
g/h G30
Capacity
g/h G31
Auxiliary 1.05 50 400 76 75
Semi-rapid 1.8 65 500 131 129
Rapid 3.0 85 800 218 214
Ultra rapid 3.9 100 1600 284 279
Fish burner 1.9 68 800 138 136
Burner
Rated heating
capacity
(kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced capacity
(W)
Auxiliary 1.05 72 400
Semi-rapid 1.8 97 500
Rapid 3.0 115 800
Ultra rapid 3.9 135 1600
Fish burner 1.9 94 800
3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi rapid
3 Rapid
4 Ultra rapid
5 Fish burner
41
