Your Distributors
3
4.1 The VP-2xl 1:2 VGA Distributor
Figure 1 and Table 1 define the VP-2xl 1:2 VGA Distributor:

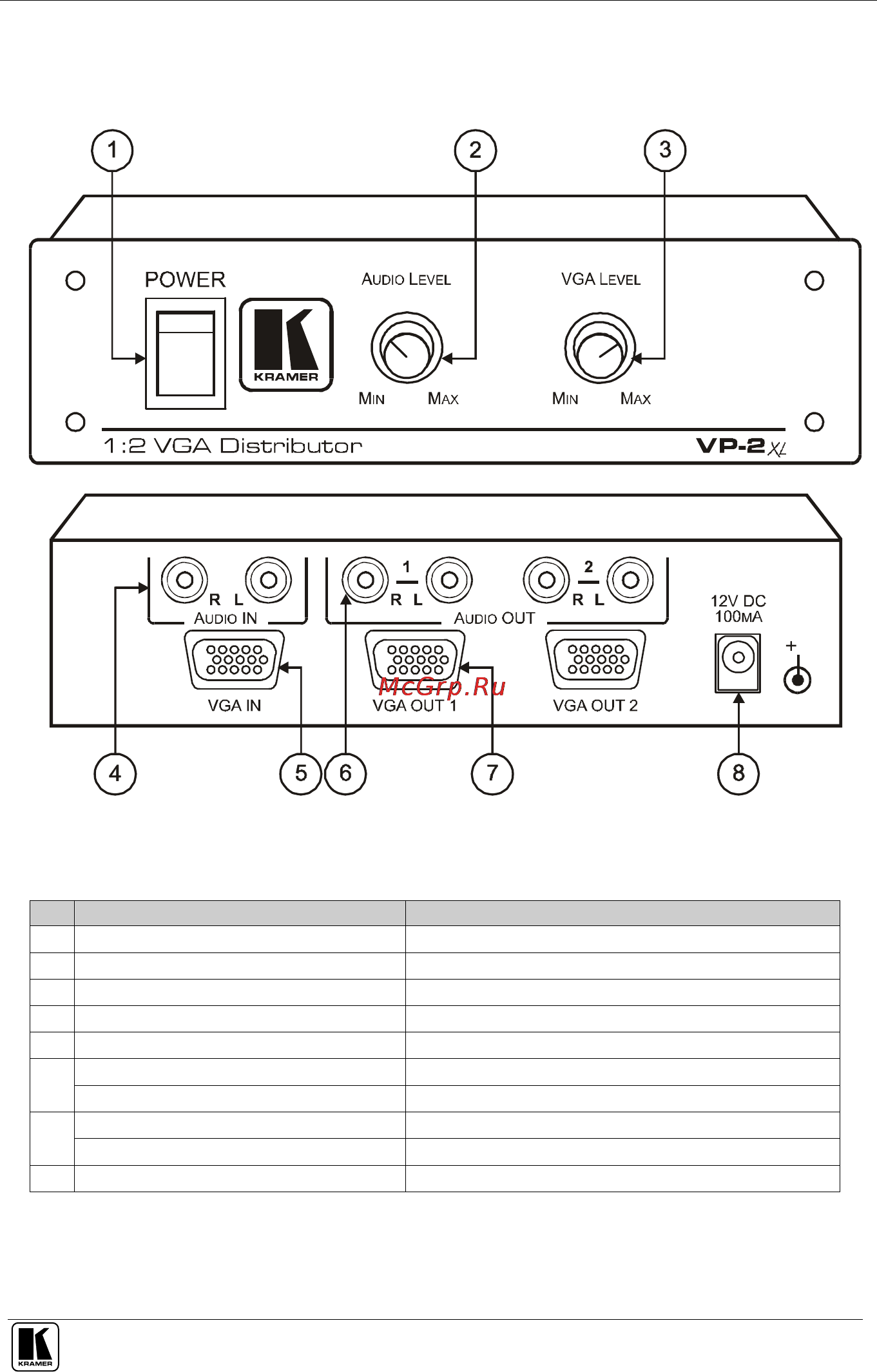

Figure 1: VP-2xl 1:2 VGA Distributor – Front and Rear View
Table 1: Features and Functions of the VP-2xl 1:2 VGA Distributor
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 AUDIO LEVEL Knob Turn to control the output audio level
3 VGA LEVEL Knob Turn to control the VGA/XGA output level
4 AUDIO IN (R, L) RCA Connectors Connect to the right and left audio source
5 VGA IN HD15F Connector Connect to the VGA/XGA source
AUDIO OUT 1 (R, L) RCA Connectors Connect to the right and left audio acceptor 1 6
AUDIO OUT 2 (R, L) RCA Connectors Connect to the right and left audio acceptor 2
VGA OUT 1 HD15F Connector Connect to the VGA/XGA acceptor 1 7
VGA OUT 2 HD15F Connector Connect to the VGA/XGA acceptor 2
8 12V DC +12V DC connector for powering the unit
4.2 The VP-6xl
N
1:6 UXGA Distributor
Figure 2 and Table 2 define the VP-6xl
N
1:6 UXGA Distributor:
