Your Distributors
5
Table 2: Features and Functions of the VP-6xl
N 1:6 UXGA Distributor
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 UXGA EQ. Trimmer Adjusts
1
the video EQ. (equalization) compensation
3 UXGA INPUT HD15F Connector Connect to the computer graphics (UXGA) source
4 UXGA OUT HD15F Connectors Connect to the computer graphics (UXGA) acceptors (from 1 to 6)
5 Power Connector with FUSE AC connector enabling power supply to the unit
Figure 3 and Table 3 define the underside panel switches of the VP-6xl
N
:
O N O NO FF
O FF
ID Bit 11 ID Bit 4

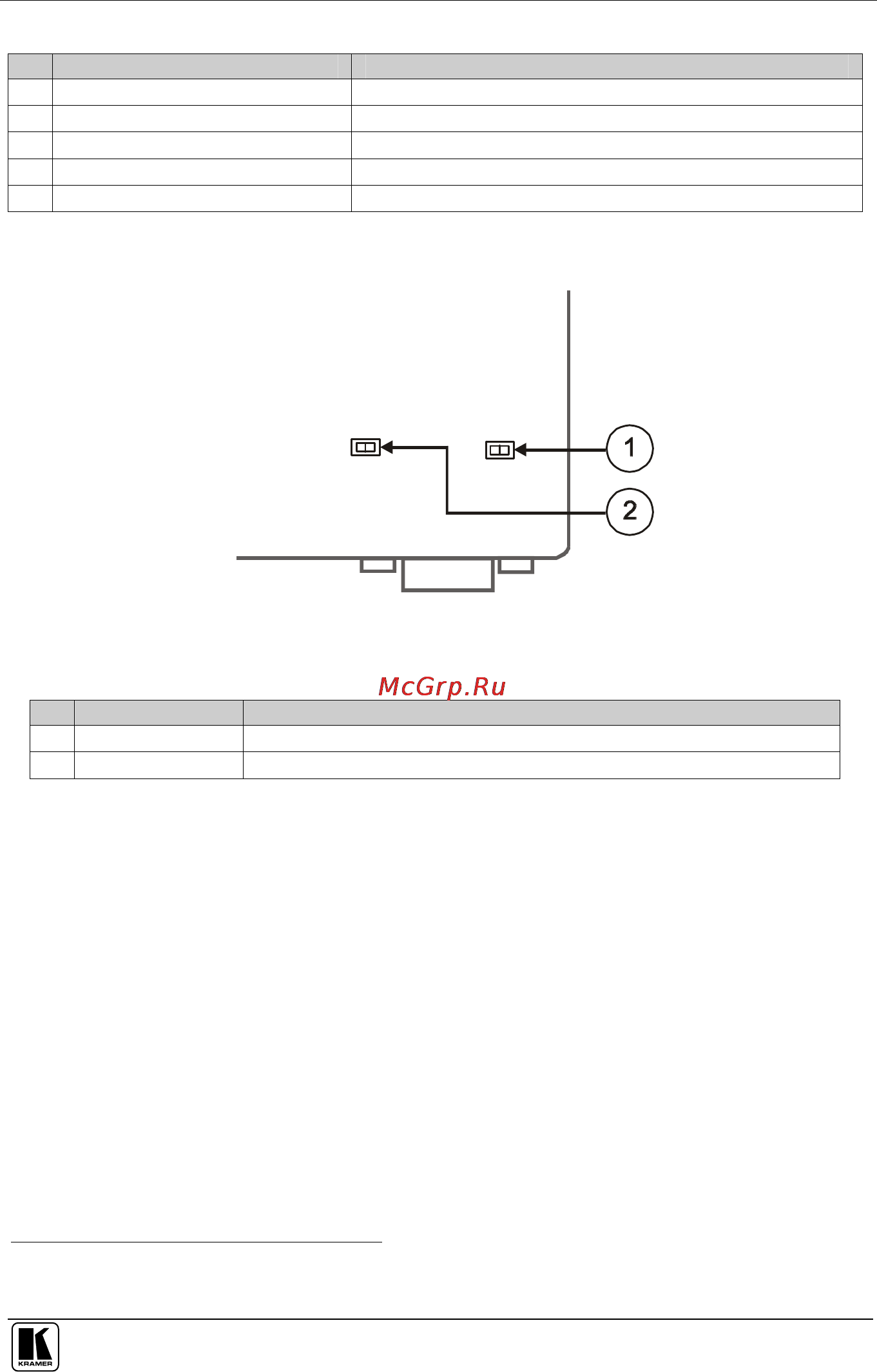

Figure 3: Underside of the VP-6xlN 1:6 UXGA Distributor
Table 3: Underside Features of the VP-6xlN 1:6 UXGA Distributor
# Feature Function
1 ID BIT 4 Switch Slide to the left to set to ON
2
; to the right to set to OFF
2 ID BIT 11 Switch Slide to the left to set to ON
2
; to the right to set to OFF
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
