Your VM-22HD 2 x 1:2 HD/SD-SDI DA

4 Your VM-22HD 2 x 1:2 HD/SD-SDI DA

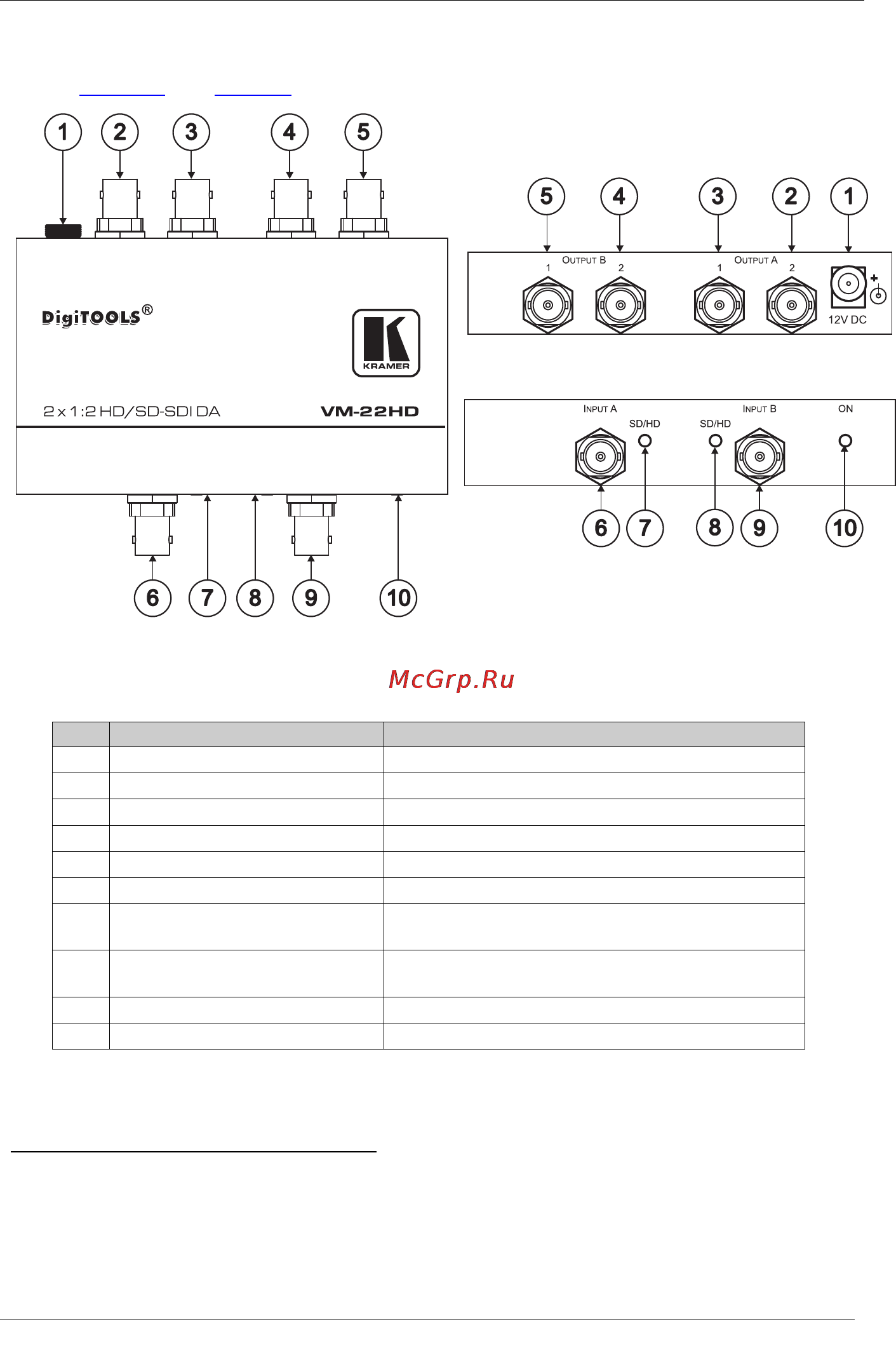

Figure 1 and Table 1 define the unit.

Figure 1: VM-22HD 2 x 1:2 HD/SD-SDI DA

Table 1: VM-22HD 2 x 1:2 HD/SD-SDI DA Functions

# Feature Function

1 12V DC Connector +12V DC for powering the unit

2 OUTPUT A 2 BNC connector Connects to the SDI A acceptor 2

3 OUTPUT A 1 BNC connector Connects to the SDI A acceptor 1

4 OUTPUT B 2 BNC connector Connects to the SDI B acceptor 2

5 OUTPUT B 1 BNC connector Connects to the SDI B acceptor 1

6 INPUT A BNC connector Connects to the SDI A source

7 SD

/HD

INPUT A LED Illuminates blue for the HD-SDI signal, green for the

SD-SDI signal on input A

8 SD/HD INPUT B LED Illuminates blue for the HD-SDI signal, green for the

SD-SDI signal on input B

9 INPUT B BNC connector Connects to the SDI B source

10 ON LED Illuminates green when receiving power

1 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)

lines of interlaced video; as well as 480 and 576 line progressive scan video format

2 High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080 lines of either

progressive or interlaced video
