KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-22HD 2 x 1:2 HD/SD-SDI DA
6
5.2 Connecting the VM-22HD in the Dual Link Mode
To connect the VM-22HD, as the example in Figure 3
illustrates, do the
following
1
:
1. Connect one HD-SDI/SD-SDI video source (for example, a dual-link
camera) to the INPUT A and B BNC connectors.
2. Connect OUTPUT A 1 and B 1 BNC connectors to a dual link
HD-SDI/SD-SDI video acceptor (for example, display A).
3. Connect OUTPUT A 2 and B 2 BNC connectors to a dual link
HD-SDI/SD-SDI video acceptor (for example, display B).
4. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 3
).
The VM-22HD operates as soon as it is connected and powered on.

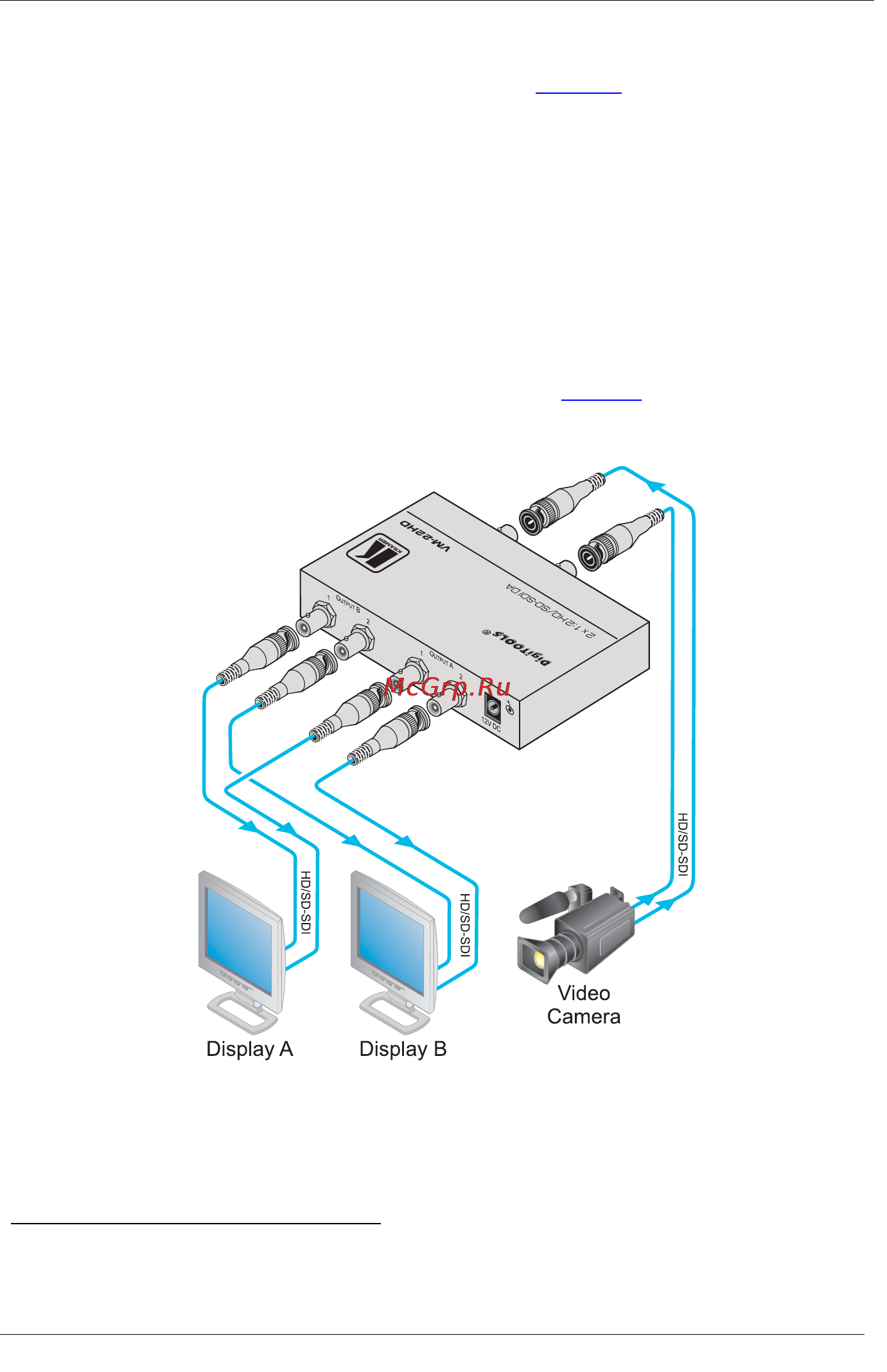

Figure 3: Connecting the VM-22HD in Dual Link Mode
1 Switch OFF the power on each device before connecting it to your VM-22HD. After connecting your VM-22HD, switch on
its power and then switch on the power on each device
