Kramer VP-211K [10/15] Connecting the remote terminal block connector

VP-211K - Connecting the VP-211K

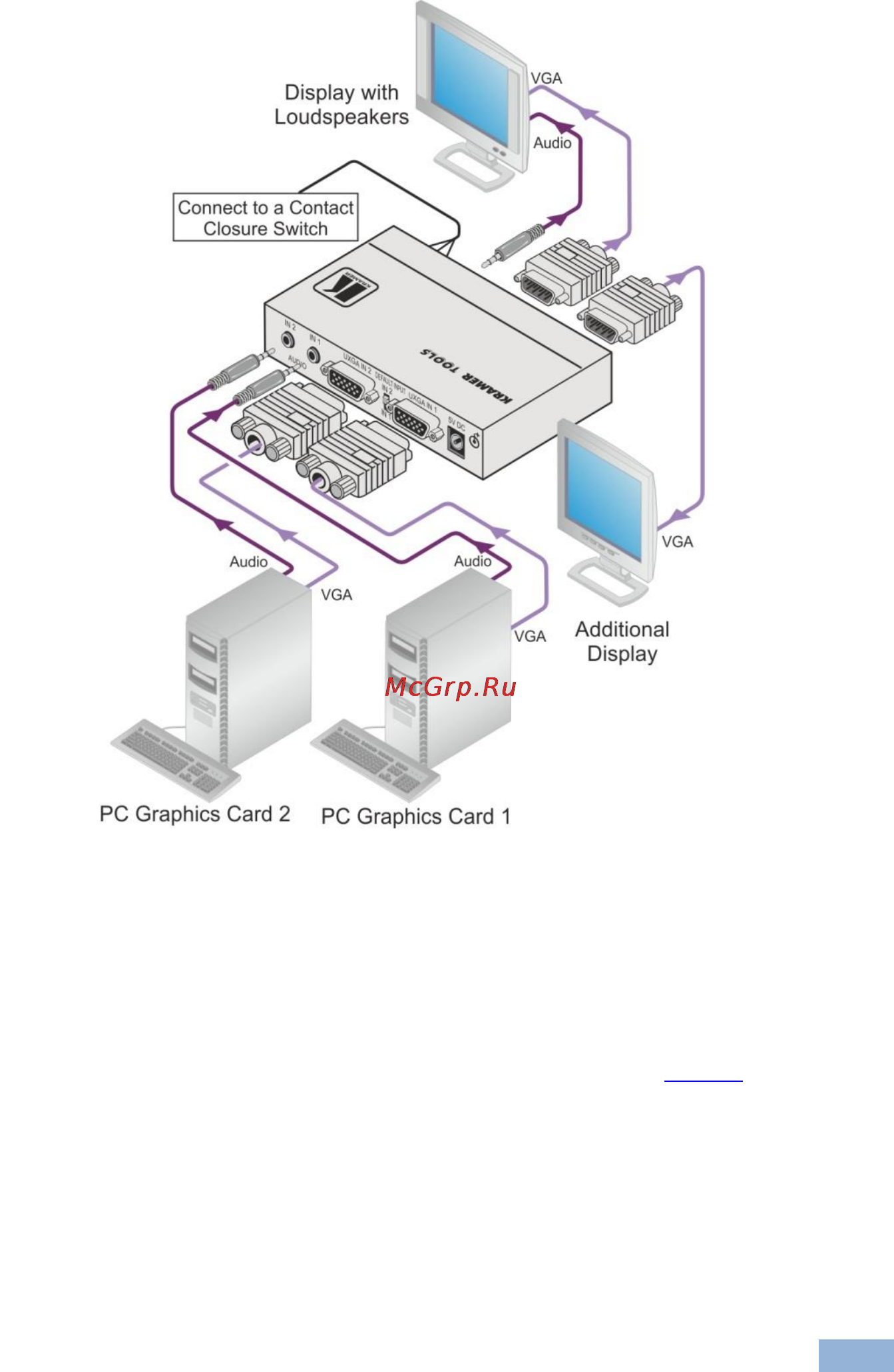

Figure 2: Connecting the VP-211K Automatic UXGA / Audio Switcher

4.1 Connecting the REMOTE Terminal Block Connector

You can force the routing of one of the two inputs to the UXGA output by remote

control. To do so, connect the appropriate REMOTE input terminal block

connector pins to a contact closure switch. For example, as Figure 3 illustrates, to

route REMOTE IN1 to the UXGA output, connect PIN IN1 to PIN G (ground). To

route REMOTE IN2 to the UXGA output, connect PIN IN2 to PIN G.

Note that the connection should be permanent, since the VP-211K reverts to an automatic

switcher when the connection is removed.
