VP-211K - Overview

3.1 Defining the VP-211K Automatic UXGA / Audio Switcher

This section defines the VP-211K.

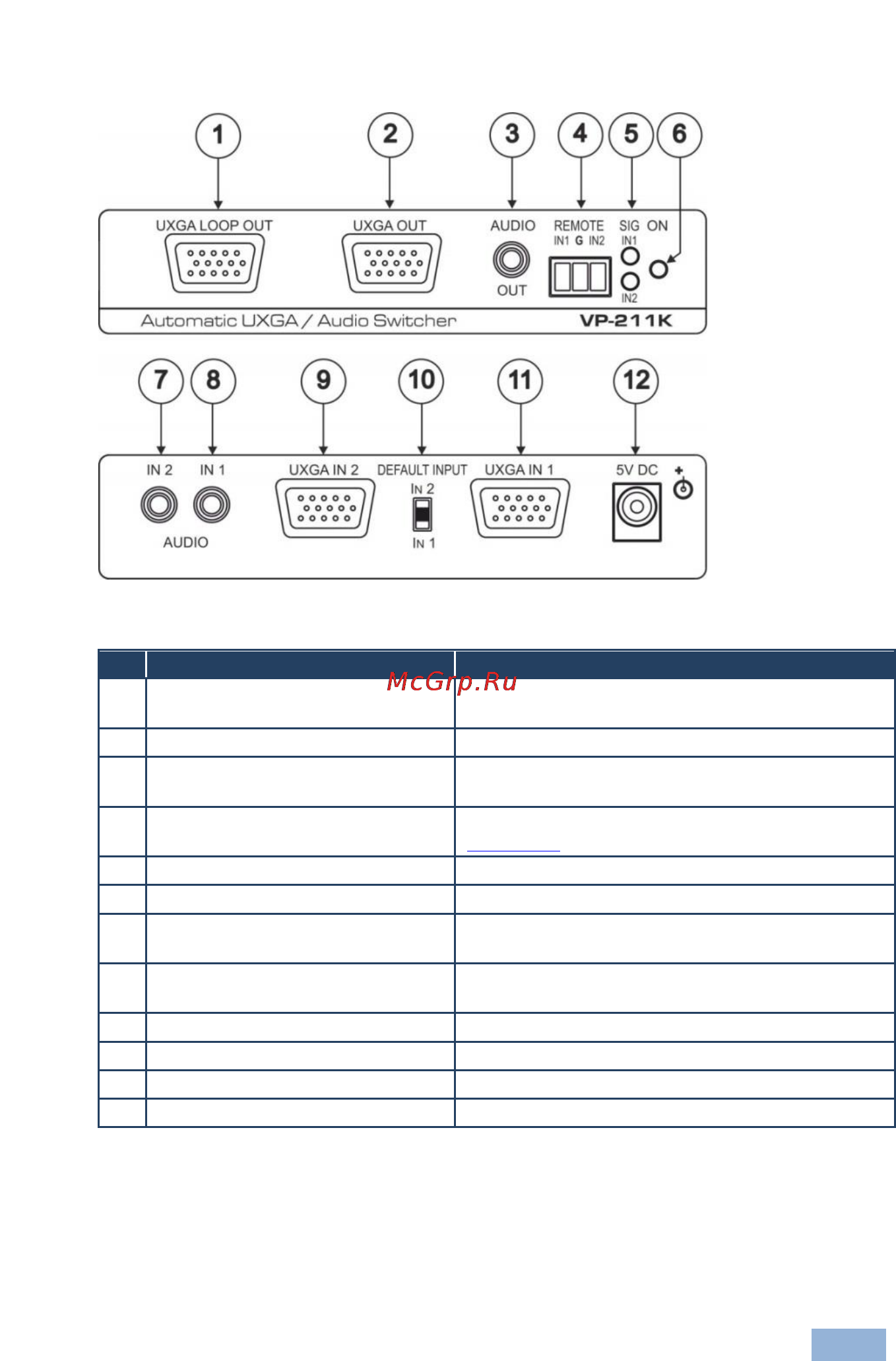

Figure 1: VP-211K Automatic UXGA / Audio Switcher

Feature

Function

UXGA LOOP OUT 15-pin HD

Connector

Connect to an additional monitor

UXGA OUT 15-pin HD Connector

Connect to the computer graphics video acceptor

AUDIO OUT 3.5mm mini-jack

Connector

Connect to an unbalanced stereo audio acceptor

REMOTE IN 1 and IN 2 Terminal

Block Connectors

Connect to a contact closure switch, see

Section 4.1

SIG LEDs

Illuminates when input is selected (IN1 or IN2)

ON LED

Illuminates when receiving power

AUDIO IN 2 3.5mm mini-jack

Connector

Connect to unbalanced stereo audio source 2

AUDIO IN 1 3.5mm mini-jack

Connector

Connect to unbalanced stereo audio source 1

UXGA IN 2 15-pin HD Connector

Connect to the computer graphics video source 2

DEFAULT INPUT Switch

Switch to set the default input (IN 1 or IN 2)

UXGA IN 1 15-pin HD Connector

Connect to the computer graphics video source 1

5V DC

+5V DC connector for powering the unit
