Kramer VP-211K [11/15] Selecting the default master source signal

VP-211K - Connecting the VP-211K

Do not connect both the REMOTE IN 1 and the REMOTE IN 2 to

PIN G simultaneously.

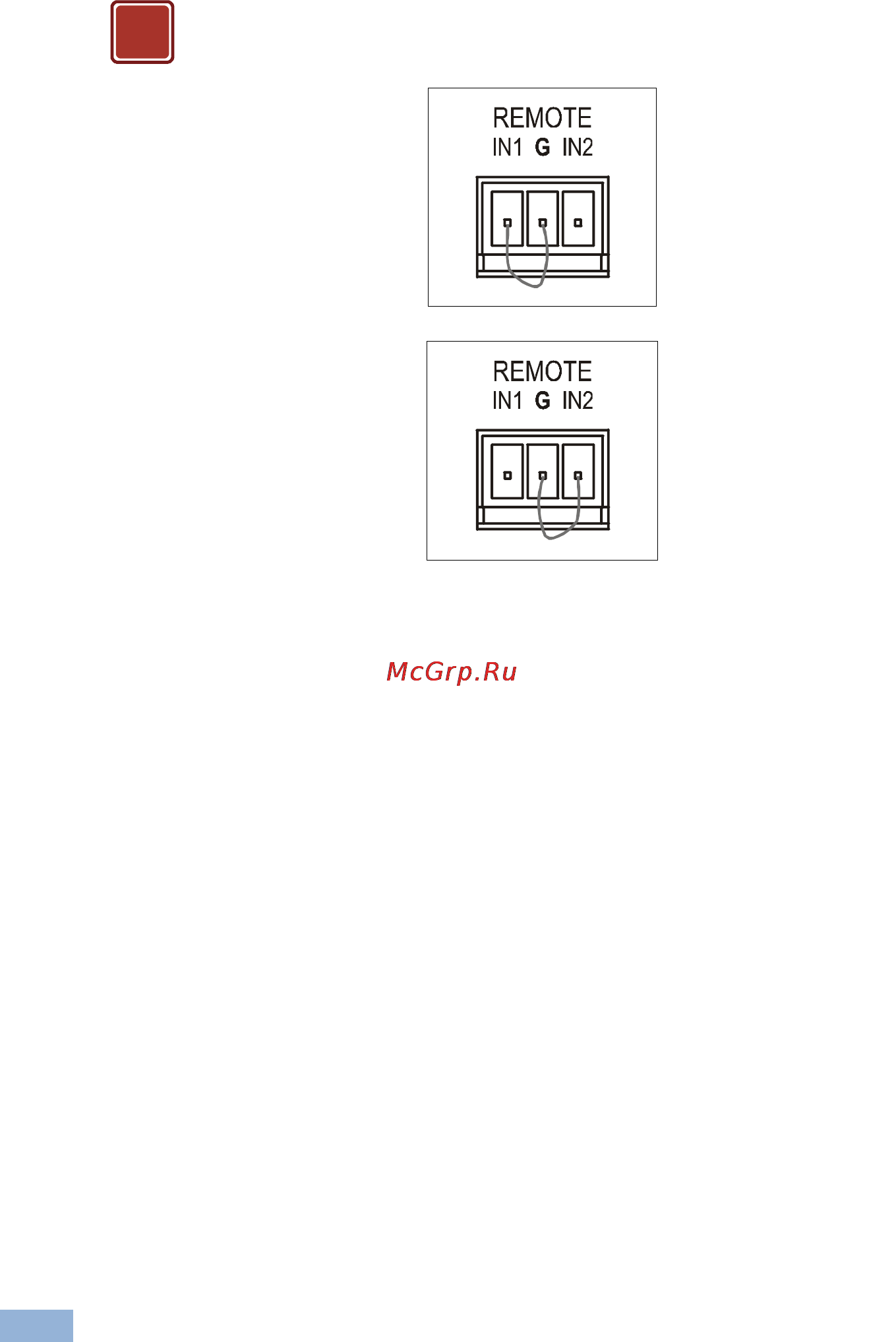

Route input 1 to the output, by

attaching PIN IN 1 to PIN G:

Route input 2 to the output, by

attaching PIN IN 2 to PIN G:

Figure 3: REMOTE Terminal Block Connector

4.2 Selecting the Default Master Source Signal

The DEFAULT INPUT switch is factory preset to IN 1 and the VP-211K detects the

presence of the master source signal at the UXGA IN 1 connector. If you connect

active sources to both the UXGA IN 1 and the UXGA IN 2 connectors, the source

at the UXGA IN 1 connector takes priority over the source at the UXGA IN 2

connector and it is routed to the UXGA OUT and the AUDIO OUT connectors

(audio-follows-video).

You can change the default so that the VP-211K automatically detects an active

source signal from UXGA IN 2, by setting the DEFAULT INPUT switch to IN 2.

When active, the source at the UXGA IN 2 connector takes priority over the source

at the UXGA IN 1 connector and it is routed to the UXGA OUT and the AUDIO

OUT connectors (audio follows video).
