KRAMER: SIMPLE CREATIVE TECHNOLOGY

Firmware Upgrade

5. Select the latest VP-27 firmware version, and click Open.

Wait for completion of the upgrade procedure. The new firmware version

appears in the INPUT STATUS 7-segment Display.

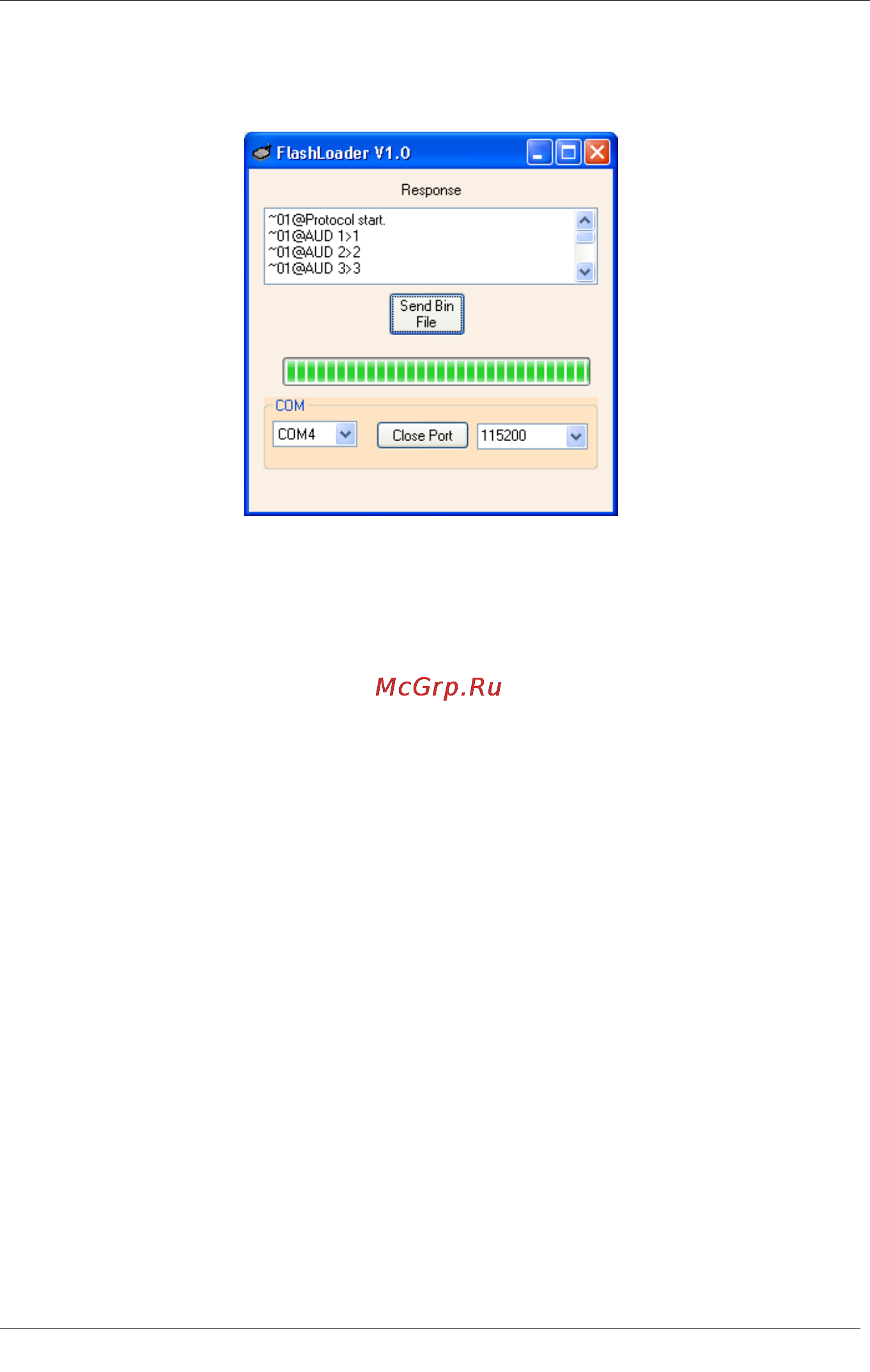

Figure 6: Flash Upgrade Process

6. If required, disconnect the RS-232 rear panel port on the VP-27 unit from the

PC.
