Firmware Upgrade
13
13
8.2 Connecting the PC to the RS-232 Port
Before installing the latest Kramer firmware version on a VP-27 unit, connect
the RS-232 9-pin D-sub rear panel port on the VP-27 unit to your PC.
8.3 Upgrading Firmware
Follow these steps to upgrade the firmware:
1. Double click the desktop icon: “FlashLoader”.
2. Connect the power on the VP-27 unit and switch it ON.
3. Set the appropriate COM port.

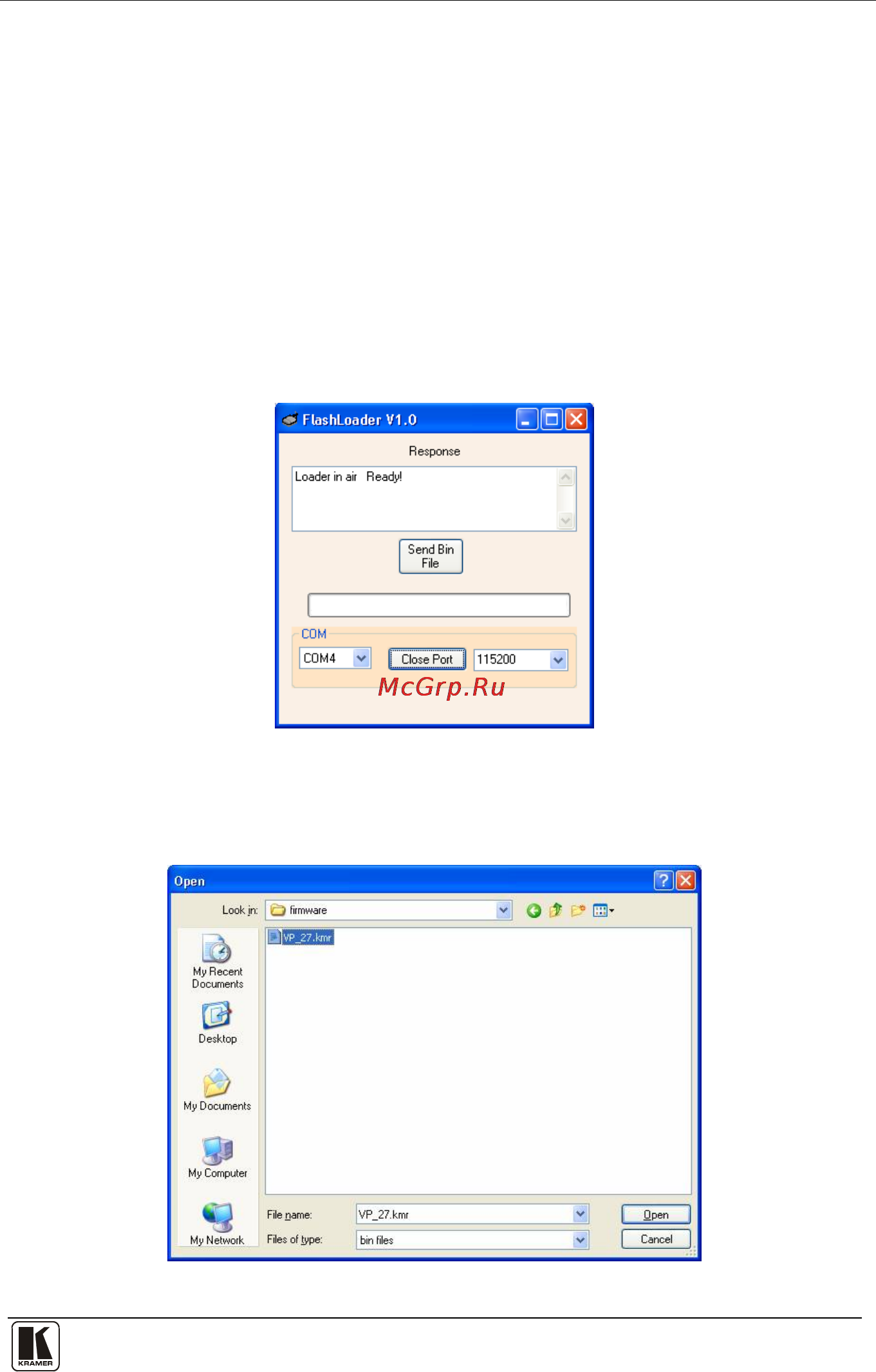

The following window appears:
Figure 5: FlashLoader Window
4. Click the Send Bin File button.
The following window appears:
Loading the Latest Firmware
