Kramer VP-28 [13/42] Connecting the vp 28
![Kramer VP-28 [13/42] Connecting the vp 28](/views2/1152446/page13/bgd.png)
VP-28 - Connecting the VP-28 9
9
5 Connecting the VP-28
Always switch off the power to any device before connecting it to your
VP-28. After connecting your VP-28, connect its power and then switch
on the power to the other devices.

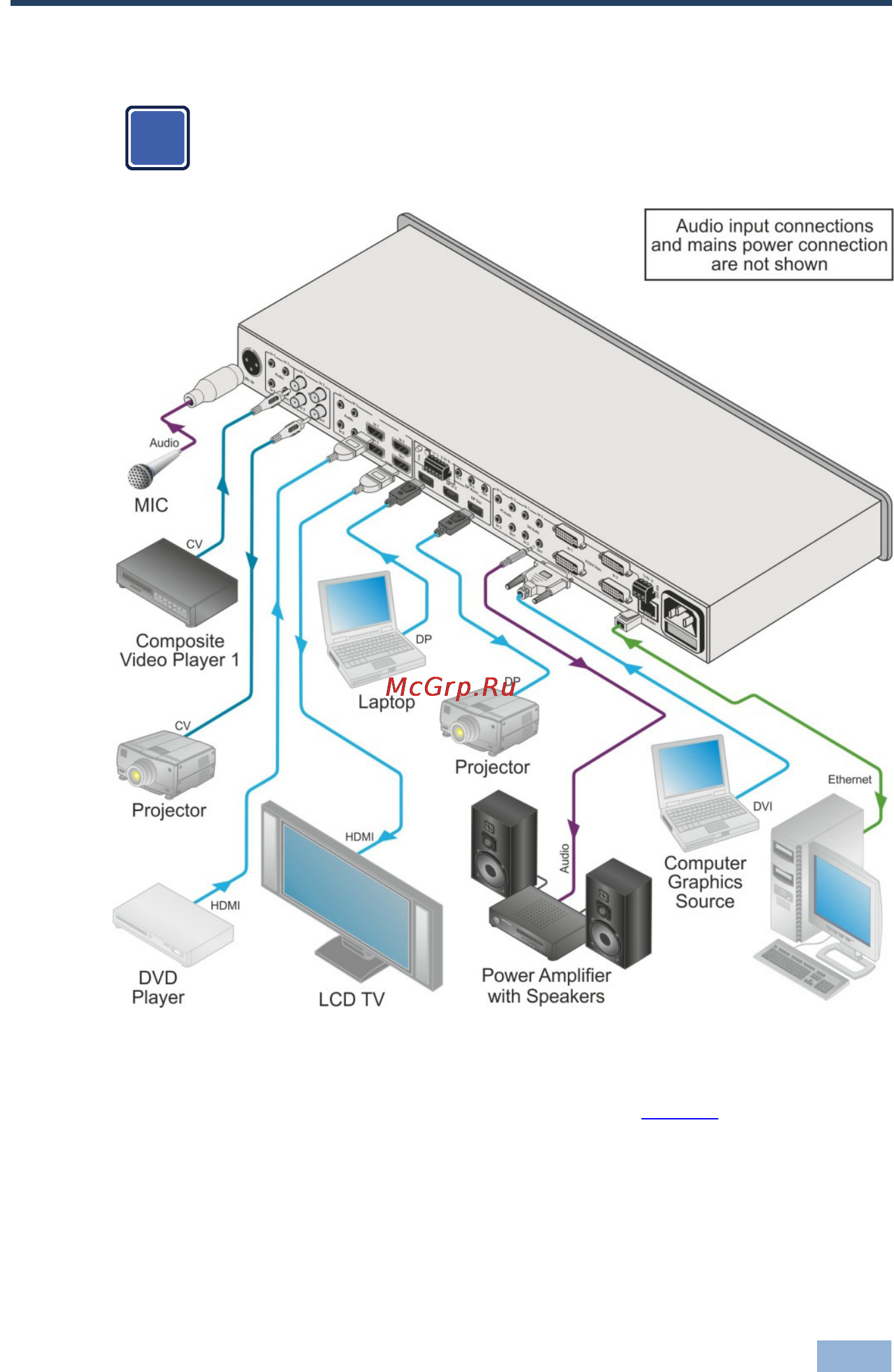

Figure 3: Connecting the VP-28 Presentation Switcher
To connect the VP-28 as illustrated in the example in Figure 3:
1. Connect a microphone to the MIC IN XLR connector.
2. Connect a composite video source (for example, a composite video player)
to the VIDEO IN 1 RCA connector.
i
