Kramer VP-28 [22/42] Figure 9 shows a typical input button
![Kramer VP-28 [22/42] Figure 9 shows a typical input button](/views2/1152446/page22/bg16.png)
18 VP-28 - Operating the VP-28 Remotely
# Feature Function
1 Connect/Disconnect
Button
Click to connect to or disconnect from the device (see
Section
7.2)
2 Select Input Buttons Click one of the 14 input buttons to select an input. The
selected input button is highlighted
3 Combine Button Click to combine the three HDMI and two DisplayPort inputs
into five inputs
4 Audio Master Level
Adjustment
Use either the slider or click on the up/down arrows to adjust
the master audio level
5 Status Indicator Indicates whether or not the application is connected to the
device
6 Audio Mic Level
Adjustment
Use either the slider or click on the up/down arrows to adjust
the microphone audio level
7 Mute Check Box Click to mute/unmute the master audio. Any microphone
signal present is not affected
8 Talkover Check Box Press to select the MIC input as the primary audio feed and to
lower the background Master audio level (toggle)
9 Mix Check Box Click to select/deselect the talkover audio signal to output
10 Master Audio Drop-
down List
Click to select one of the audio inputs
Note: When a change is made on the device (for example, a different output is
selected), the change is reflected almost immediately in the main window of the
controller software, and vice versa.

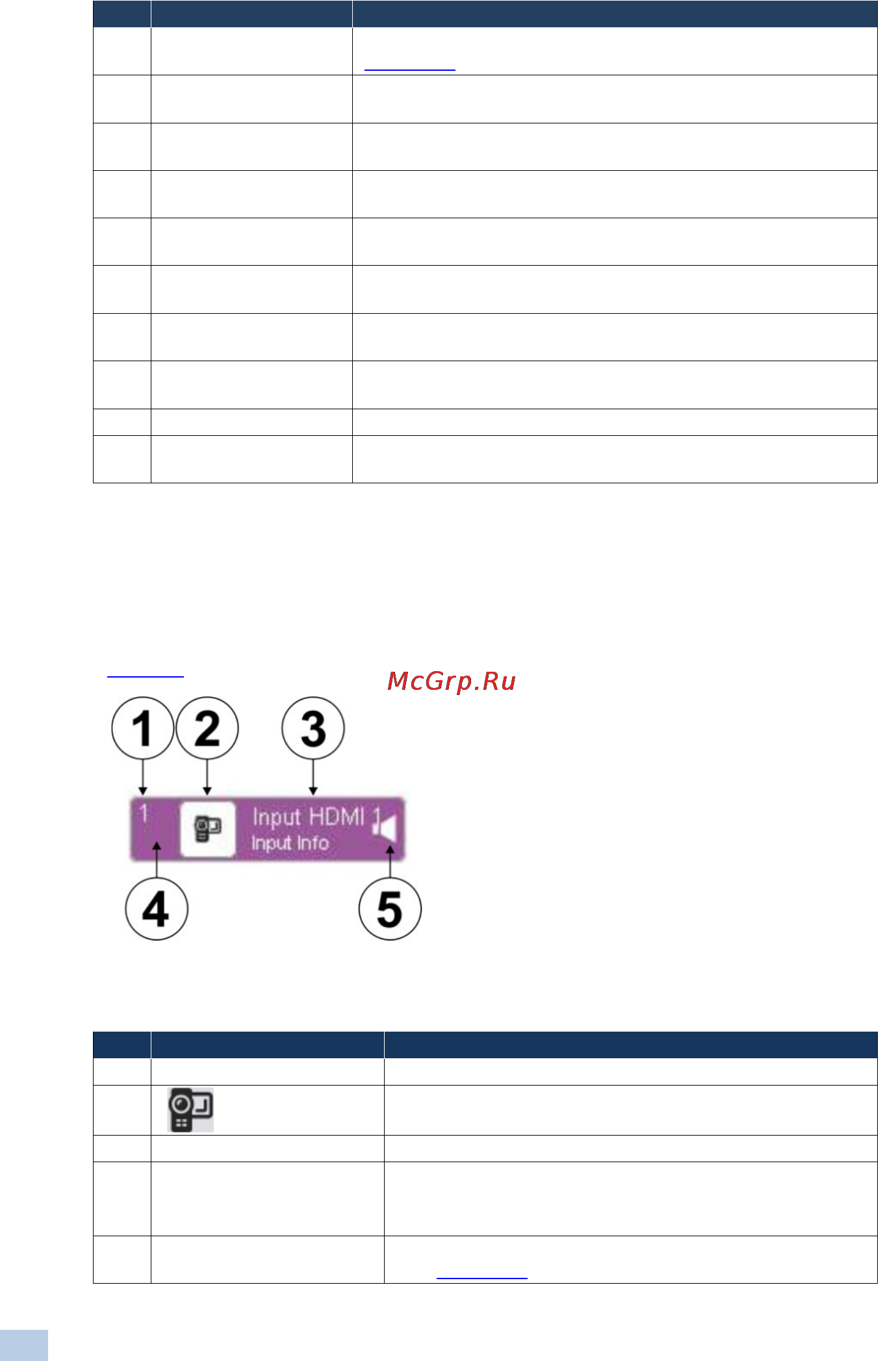

Figure 9 shows a typical input button.
Figure 9: Typical Input Button
# Feature Description
1 1 Input or output number
2
User-selectable icon selected to be displayed on the
button
3 Input HDMI 1 Label User-selectable button label
4 Background Color Indicates the status of the input/output:
Purple—active
White—inactive
5 Audio Input The symbol indicates that this is the selected audio input
(see Section
7.3)
