VP-28 - Connecting the VP-28 13
13
5.2.2 Connecting to the Ethernet Port via a Network Switch/Hub
To connect to the Ethernet port on the VP-28 via a network switch/hub:
• Connect the PC to the Ethernet network switch/hub using a straight through
cable
5.3 Connecting a Balanced/Unbalanced Stereo Audio Output
This section illustrates how to wire:
• A balanced stereo audio connection, see
Figure 6
• An unbalanced stereo audio output connection, see
Figure 7

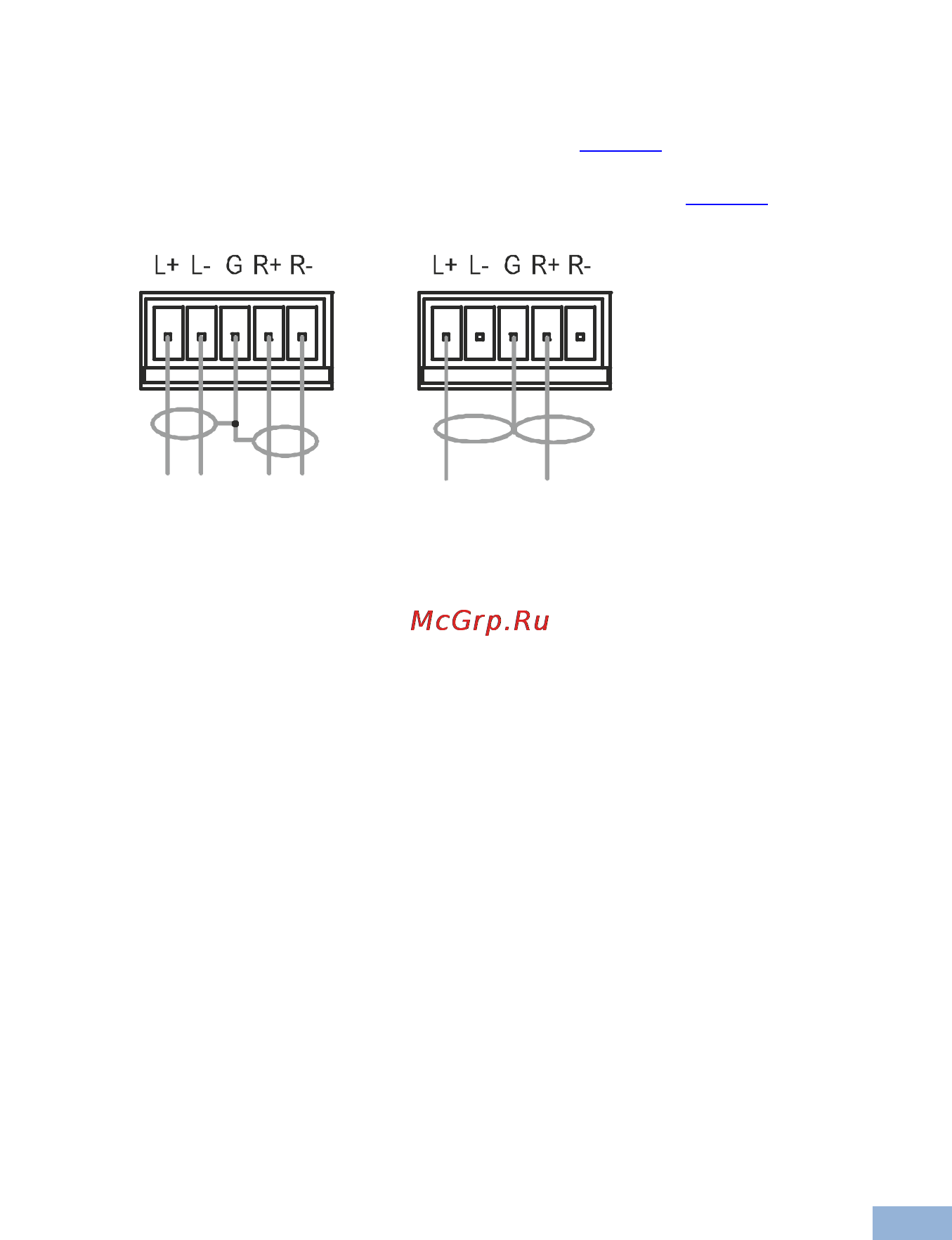

Figure 6: Balanced Stereo
Audio Output Connection
Figure 7: Unbalanced
Stereo Audio Output
Connection
