Instructions for the installer

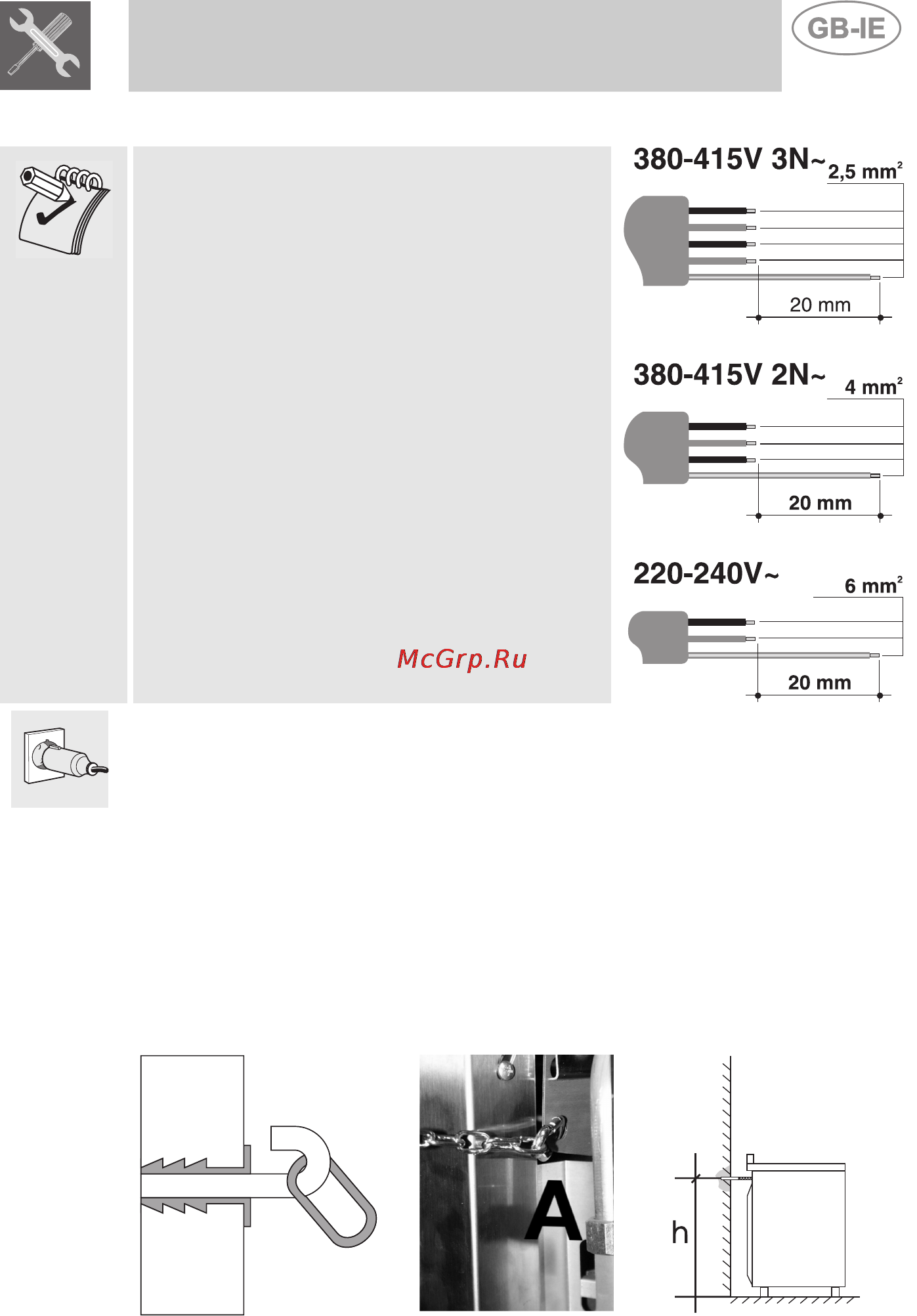

For operation on 380-415V3N
: use a
H05RR-F-type five-core cable (5 x 2.5 mm
2
).
For operation on 380-415V2N
: use n
H05RR-F-type four-core cable (4 x 4 mm
2
).
For operation on 220-240V
: use a
H05RR-F-type three-core cable (3 x 6 mm
2
).
The end to be connected to the appliance
must have an earth wire (yellow-green) at
least 20 mm longer than the others.
Complete wiring up to power supply with an appropriately rated five-core
plug (see data plate) or, in case of operation from a 220-240V power
supply, with a three-core plug. Make sure that plug and wall socket are
of the same type and are in conformity with regulations in force. Make
sure that the appliance is properly earthed. Before powering, check that
the power line is properly earthed. Avoid using adapters or shunters.
2.3 Instruction for wall fixing (on some models only)
1) Fix the screw to the wall and hook the chain (B);
2) Hook the chain to the hole positioned at the rear of the cooker by
the gas pipe (A);
3) Once the chain is in position, push the cooker against the wall;
4) The height of the screw hole from floor level must not exceed 800
mm (C).
A
B
C
33
