RC-53DLC - Overview
5
3.1.1 RC-53DLC for the US

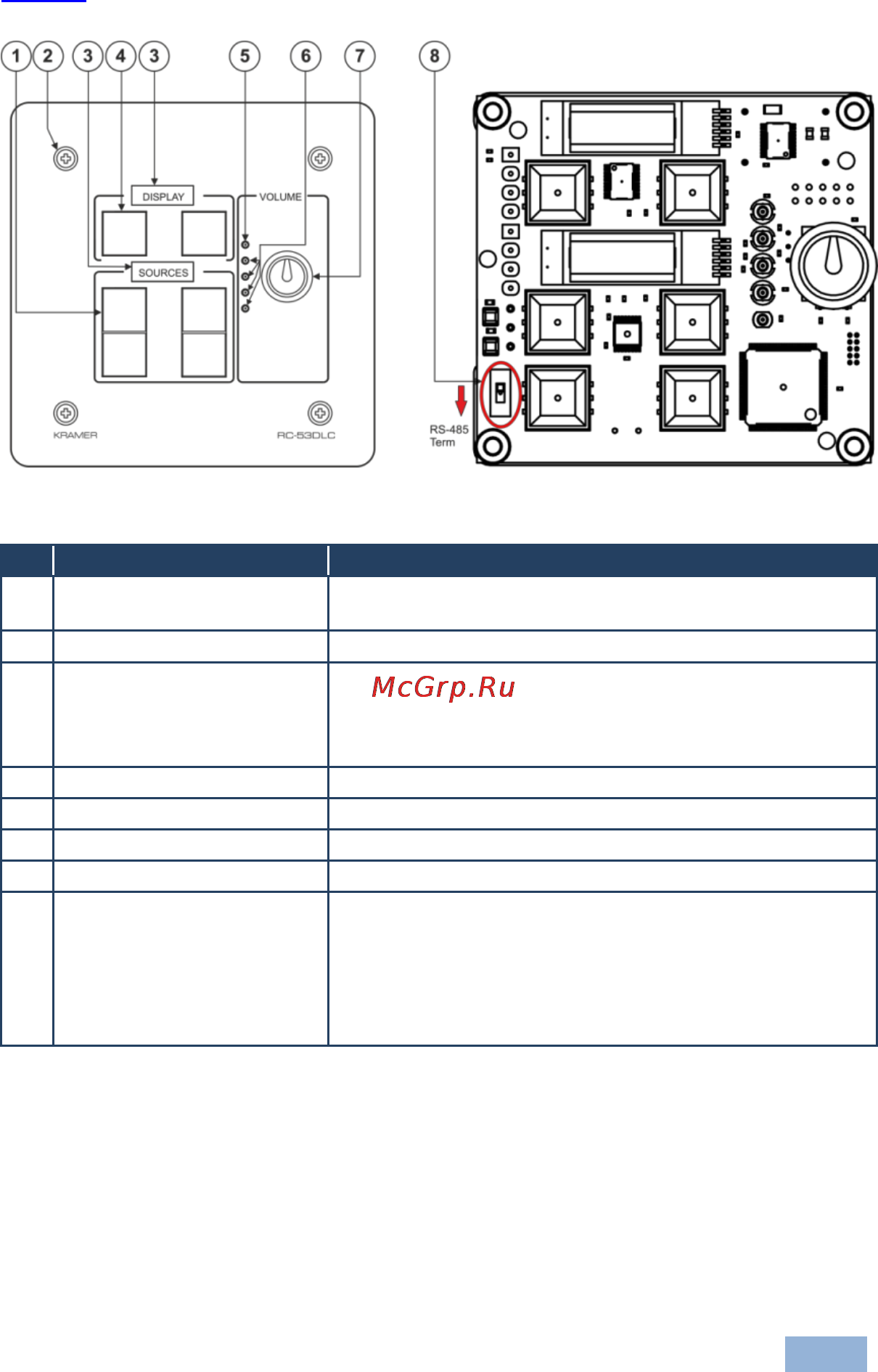

Figure 1 defines the RC-53DLC US front panel.
Figure 1: RC-53DLC US Version – Front Panel
#
Feature
Function
1
SOURCE Buttons
Group of four programmable (by the system integrator
only), backlit buttons
2
Faceplate Screws
Four screws connecting the faceplate to the Rear Box
3
“DISPLAY” and “SOURCE”
Labels
Programmable, 8 character, LCD displays on a blue
background
Remove the protective transparent film from both LCD
displays before mounting the faceplate
4
DISPLAY Buttons
Group of two programmable, backlit buttons
5
Maximum VOLUME LED
Lights red, indicating maximum volume
6
VOLUME LEDs
Light green, indicating volume level
7
VOLUME Knob
Rotate clockwise to increase volume level
8
K-NET TERM Switch
Slide downwards (in the direction of the arrow) for K-NET
termination, slide upwards to leave bus un-terminated.
The last physical device on a K-NET bus must be
terminated
You can access the switch by removing the volume control
knob, and unscrewing the 4 screws on the front panel
