6
RC-53DLC - Overview

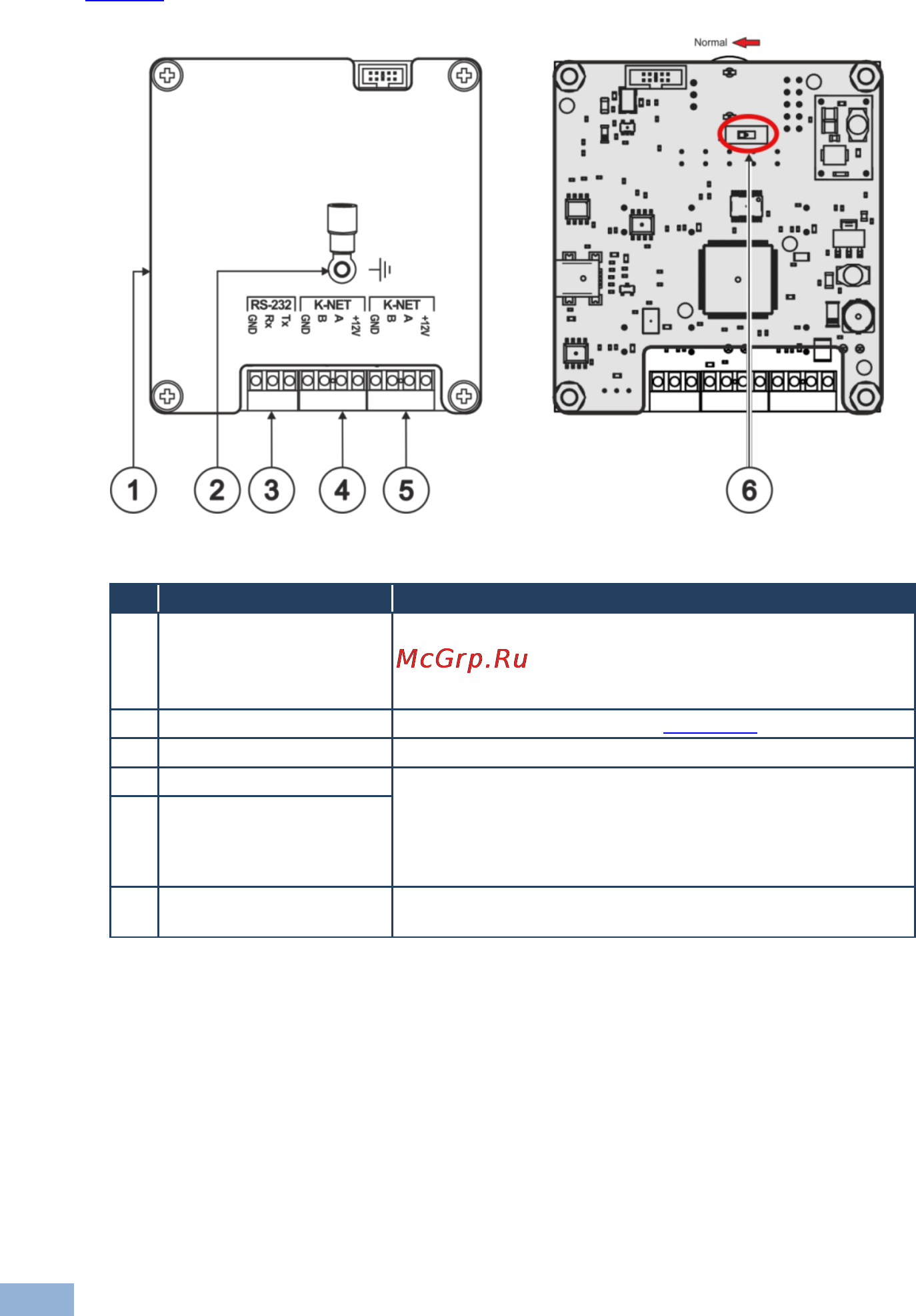

Figure 2 defines the RC-53DLC US rear panel.
Figure 2: RC-53DLC US Version Rear Panel
#
Feature
Function
1
Program USB Connector
Connect to a computer for firmware upgrade
When the unit is connected via K-NET to a Master Room
Controller, you can upgrade the firmware via the USB or ETH
ports of the Master Room Controller
2
Grounding Screw
Connect to grounding wire (see Section 3.2)
3
RS-232 Terminal Block
For factory use only
4
K-NET Terminal Block
Connect the GND to the ground connection, connect B (-)
and A (+) to RS-485, and connect +12V to +12V on the
companion unit
The ground connection is sometimes connected to the shield of
the RS-485 cable (in most applications, it is not connected)
5
K-NET Terminal Block
6
PROG Switch
For technical support use only (should be set to the left in the
direction of the arrow for normal operation)
