TP-46N - Connecting a Component/UXGA/Audio Distribution System

5. Connect the LINE OUTPUT RJ-45 connector on the TP-45 to the LINE IN RJ-45

connector on the TP-46N, via CAT 5 cabling, see Section 4.3.

6. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity on both the TP-45 and the TP-46N (not

shown in Figure 2).

The signal from the UXGA source is transmitted via CAT 5 cable, decoded

and converted at the UXGA OUT 15-pin HD (F) connector to the UXGA

acceptor.

If you cannot connect the power to both the TP-45 and TP-46N, you can connect the

power to the TP-46N alone (see Section 3.1).

7. If required, connect the LINE OUT RJ-45 connector on the TP-46N to an

additional TP-46N.

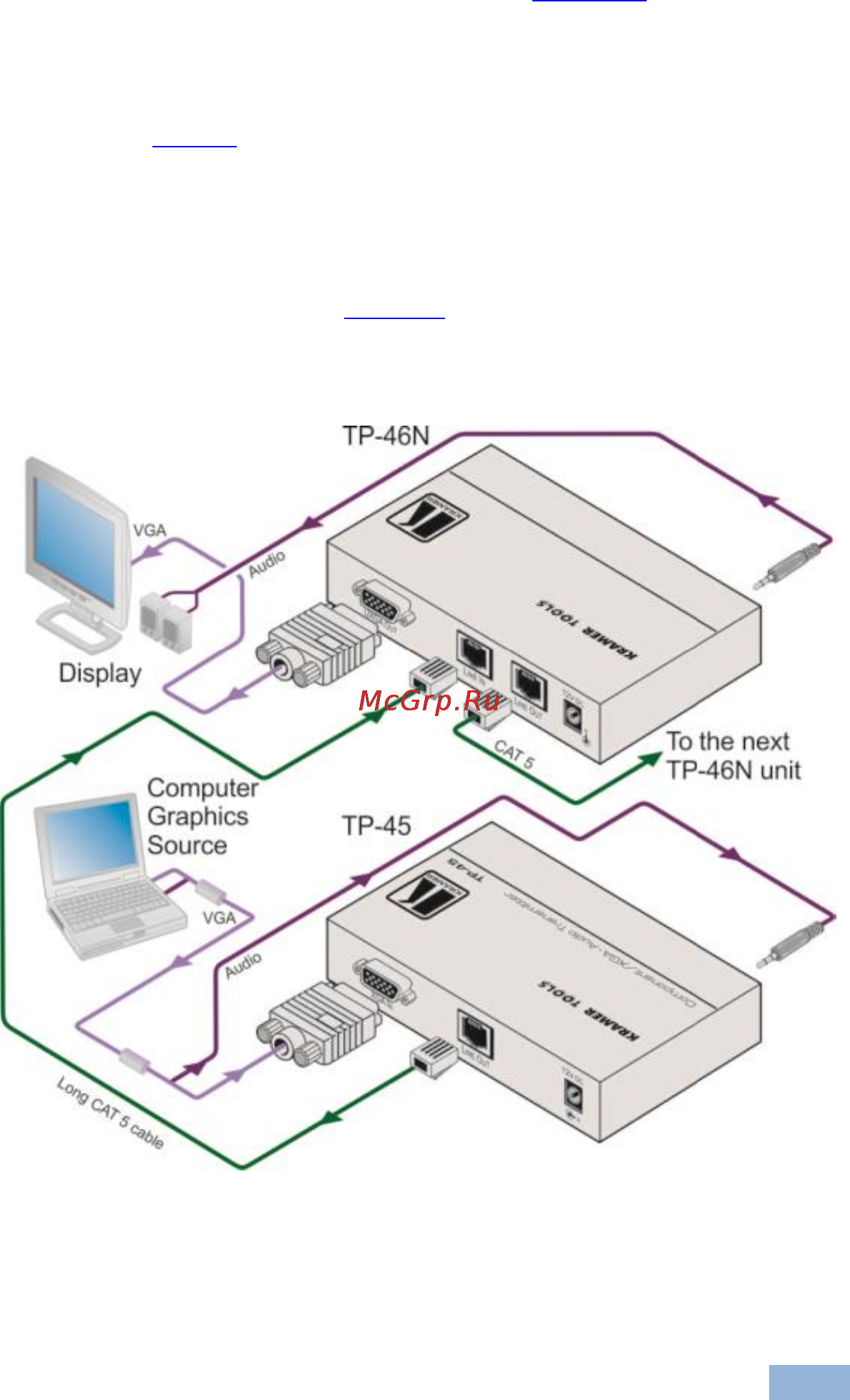

Figure 2: Distribution System, UXGA Mode
