Kramer PT-120XL [13/20] If necessary set the h sync and v sync switches on the underside of the

PT-110xl, WP-110, PT-120xl, TP-120 - WP-110 XGA Line Transmitter

6. If necessary, set the H SYNC and V SYNC switches, on the underside of the

WP-110.

By default, both switches are set for normal H SYNC and V SYNC polarity.

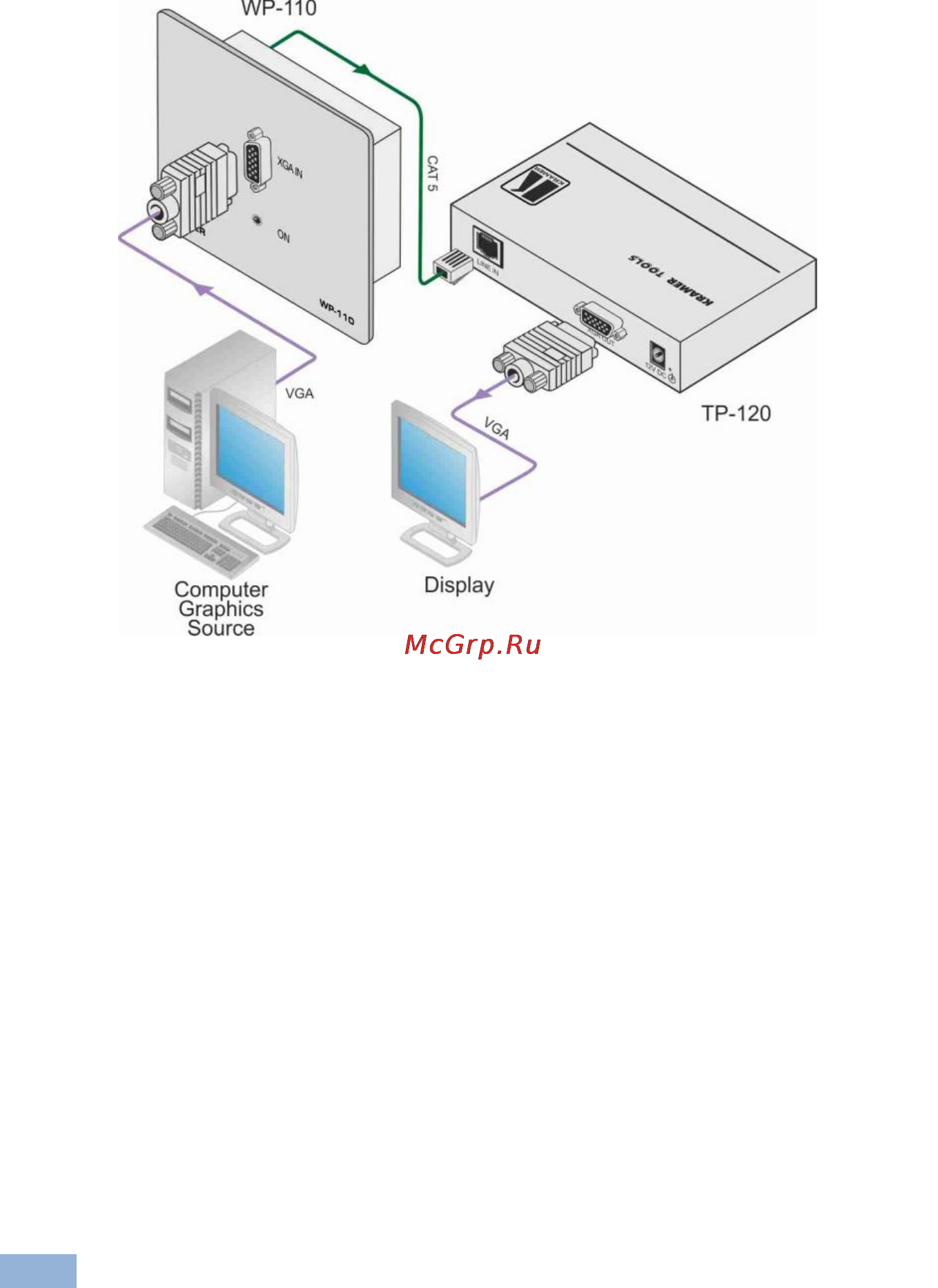

Figure 4: Connecting the WP-110 to a TP-120
