4
PT-110xl, WP-110, PT-120xl, TP-120 - PT-110xl UXGA Line Transmitter
3 PT-110xl UXGA Line Transmitter
The Kramer Pico TOOLS PT-110xl is an extended range UXGA line transmitter
that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl
or TP-120 receiver. In particular, the PT-110xl features:
Resolution up to WUXGA &1080p
HDTV compatibility up to 1080p
Extended transmission range of up to 250m (820ft) when used with Kramer’s
other twisted pair xl receivers (such as PT-120xl, TP-122xl or TP-126xl)
EDID capture that copies and stores the EDID from a display device
An increased level of protection against noise, spikes and interference in
adverse environments for the xl models
3.1 Your PT-110xl UXGA Line Transmitter

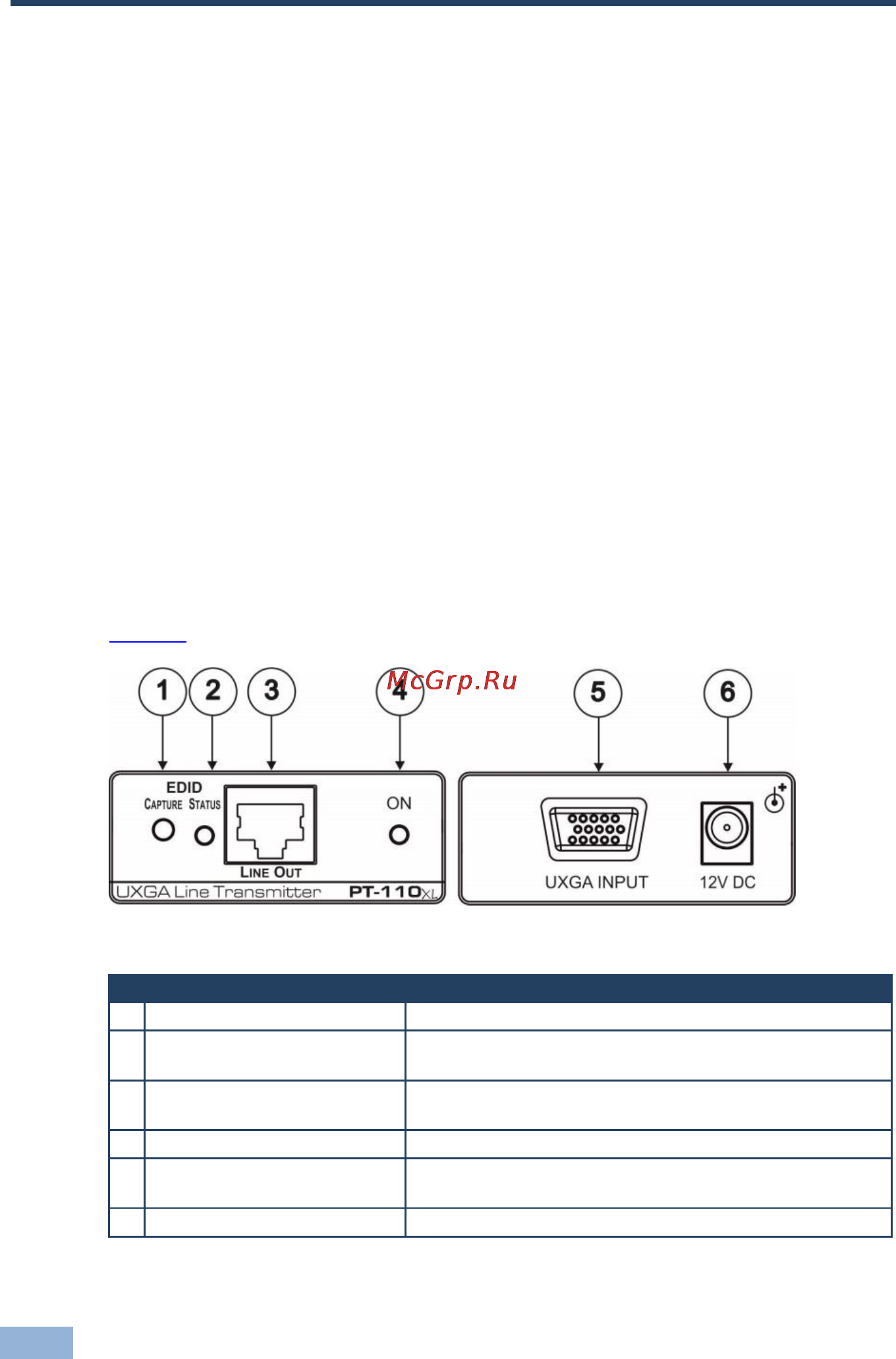

Figure 1 defines the PT-110xl:
Figure 1: PT-110xl UXGA Line Transmitter
#
Feature
Function
1
CAPTURE Button
Press to acquire the EDID information from the display
2
STATUS LED
Illuminates during normal operation; flashes when
acquiring the EDID
3
LINE OUT RJ-45 Connector
Connects to the LINE IN RJ-45 connector on the
PT-120xl or TP-120 XGA Line Receiver
4
ON LED
Illuminates when receiving power
5
UXGA INPUT 15-pin HD
Connector
Connect to the UXGA source
6
12V DC
+12V DC connector for powering the unit
